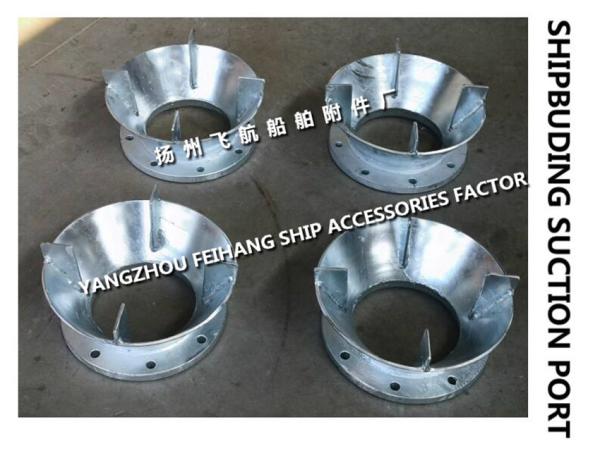

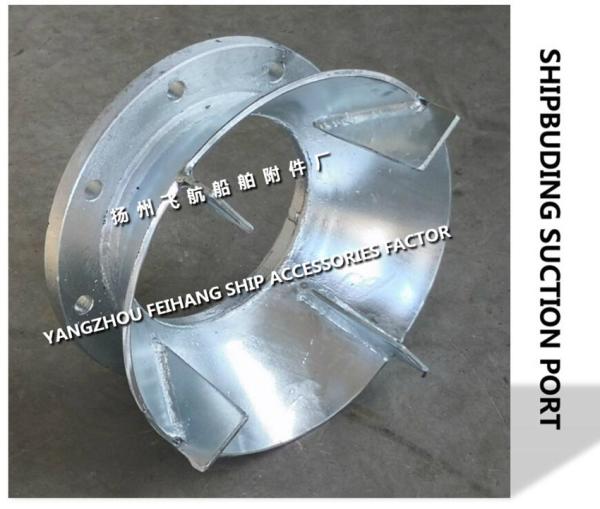

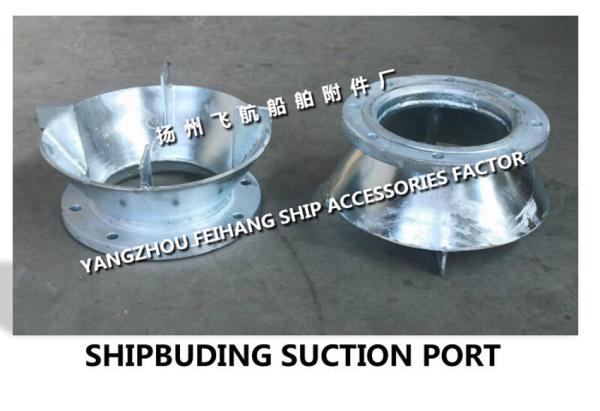

AS200S CB/T495-95 stainless steel suction port - marine stainless steel tank suction

Specifications

Brand Name :

Fei Hang

Model Number :

AS-TYPE

Certification :

Inspection Report

Place of Origin :

China Jiangsu Yangzhou

MOQ :

Price :

Negotiable

Payment Terms :

Advance payment and delivery

Supply Ability :

1000

Delivery Time :

The 3 day

Packaging Details :

Wooden box

Executive standard :

CB/T495-95

Nominal diameter :

200A

Material :

Carbon steel, stainless steel

Surface treatment :

Hot galvanizing

Description

Marine suction - oil tank suction - water tank suction - sewage well suction

Marine sewage well suction-water tank suction port AS200 CB495-1995:

The model is type A-straight type, the flange standard is GB2501, the nominal diameter is 200mm, the body material is Q235 carbon steel, and the standard is the special suction port for the fresh water tank pipeline of national standard CB495-1995.

Type

Size

Body material

Take over

material

Flange Connection

200A

Q235(Carbon steel)

SUS304/SUS316

GB2501

According to the material classification, this marine A/AS type tank suction can be divided into:

Carbon steel galvanized suction port - marine carbon steel galvanized water tank suction port AS200S CB/T495-95

Stainless steel suction port - marine stainless steel tank suction AS200S CB/T495-95

Marine AS200 CB/T495-95 ship water tank suction port Production process requirements:

1A, when the AS type suction port is used in the water tank, the surface of the suction port shall be hot-dip galvanized, and the galvanizing amount shall not be less than 480g/m2.
2 Ship water tank suction port shall be used for appearance quality inspection, which shall not affect the defects of use. The size shall comply with the corresponding standards. No water leakage test shall be carried out for 3 minutes.

AS200S CB/T495-95 stainless steel suction port - marine stainless steel tank suction

Welcome customers at home and abroad to consult with us - Yangzhou Feihang Ship Accessories Factory Order marine CB495-95 marine suction port:
