JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
Specifications
Brand Name :
Fei Hang
Model Number :
A,AS，B,BS
Certification :
Inspection Report
Place of Origin :
China Jiangsu Yangzhou
MOQ :
1
Price :
Negotiable
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Delivery Time :
The 5 day
Packaging Details :
Wooden box
Reference standard :
JIS F7121
Connection mode :
Flange connection
Nominal pressure :
0.39Mpa
Mesh size :
4-8mm
Type :
straight-through, right-angle
Description

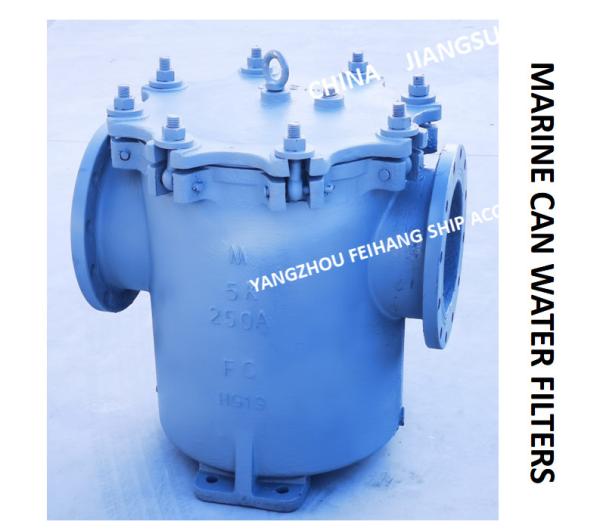

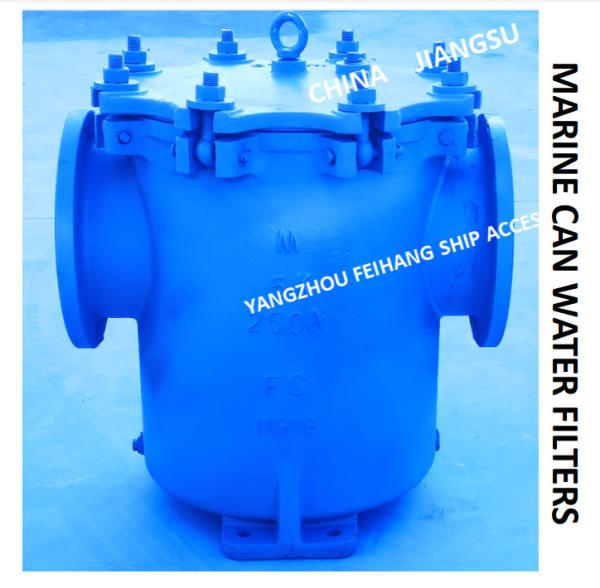

JIS F7121 5k/10k Can Water Filter

Marine Can Water Strainer

JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron

This cylindrical seawater filter is a seawater filter designed and manufactured according to the Japanese standard shipbuilding industry: JIS F7121-1998.

Its models are: S-TYPE (straight through type), LA (left type right angle type), LB (right type right angle type) three forms.

Nominal diameter: 25A-500A Material: Cast iron Process: Pouring

Can Water Filter 5K-250A LB-TYPE The basic product information of the boat right angle cylindrical seawater filter is as follows:

JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron

Body material cast iron
Filter material Filter element-SUS304
Design standards JIS F7121-1998
Form LB-TYPE Right angle type
Specification DN250/DN200
Work pressure 0.39Mpa
Test and inspection GB600

JIS 5K-250A main sea water pump imported sea water filter, daily standard cylindrical sea water filter

JIS F7121 5k/10k Can Water Filter,Sea Water Filter,Can Water Strainer,Sea Water Strainer Body - Cast Iron
Auxiliary machine sea water pump imported single water filter / single sea water filter JIS 5K-200A LB-TYPE
Fresh water pump imported right angle sea water filter / right angle suction sea water filter JIS 5K-200A LB-TYPE

JIS F5K-200A Can Water Strainers Models are marked as:


Main sea water pump inlet cylindrical sea water filter JIS F7121-5k-250 LB-TYPE-8
(Definition: Marine tubular water filter with a nominal diameter of 250 mm, a LB type right angle, and a filter cartridge with a filter accuracy of 8 mm)

Marine submarine portal water filter JIS 5K-200A-6 LB-TYPE
(Definition: Nominal diameter is 200mm, the form is LB type right-angled right angle, and the filter barrel has a filter precision of 6mm.
