Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Marine oil-water cabin air cap
Specifications
Place of Origin :
Jiangsu Yangzhou
Brand Name :
Fei Hang
Certification :
Inspection Report
Model Number :
A,B,C,D,E,FS
MOQ :
1
Price :
Negotiable
Packaging Details :
Wooden box
Delivery Time :
The 3 day
Payment Terms :
Advance payment and delivery
Supply Ability :
1000
Application :
Ballast tank air cap
Shape :
Cap type, gooseneck, float, float
Material :
Cast iron, ductile cast iron, cast steel, stainless steel, bronze
Dimensions :
50A-350A
Chemical Composition :
NO
Reference standard :
CB/T3594-94，CBM1105-82，CBM1106-82
Connection mode :
Flange, thread
Description

Jiangsu fit ship supporting engineering co., LTD. Production of:
Marine air pipe head, Marine air cap, Marine air cap GB1580 CB/T3594-94-80, 1106-80

Marine oil-water cabin air cap
Marine air cap is used:
To inhale and cabin incase of breathing is close to atmospheric pressure, air pressure to keep the pressure within the tank design pressure, also can prevent water, rain water, Mars into the tank.
A, product classification

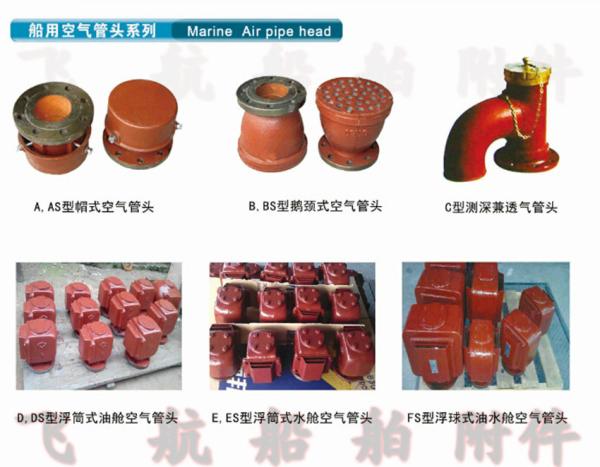

1, the air pipe head type is as follows:

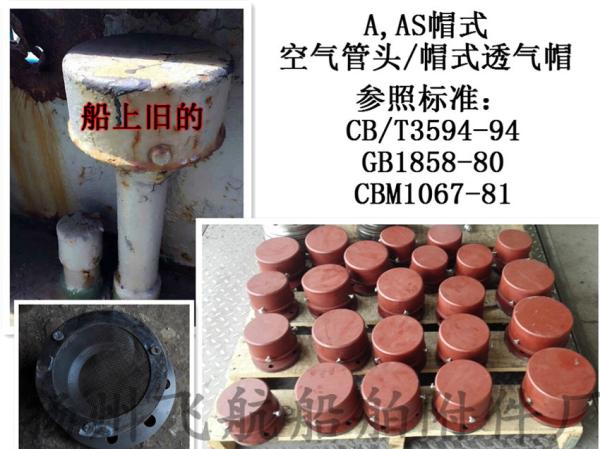

Type A - flange connection type air pipe head size according to GB569 cap;
AS flange connection type - type air pipe head size according to GB2501 cap;

Marine oil-water cabin air cap

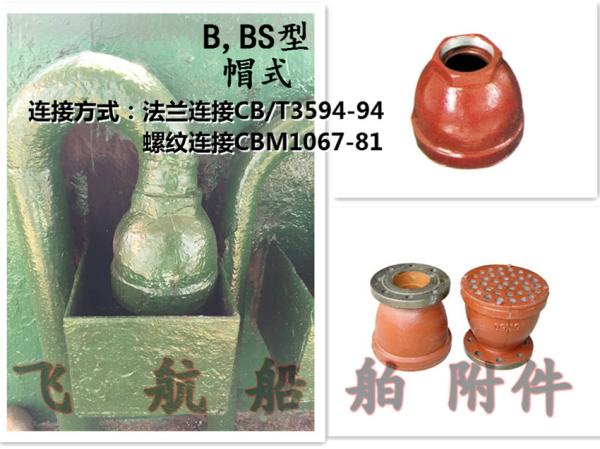

B - flange size according to the gooseneck GB569 air pipe head;
Type BS - flange size according to the gooseneck GB2501 air pipe head;

Marine oil-water cabin air cap

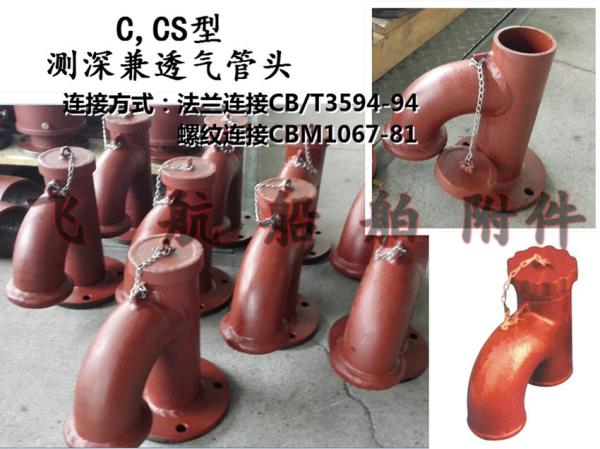

C - flange size according to GB569 sounding and breathable air pipe head;
CS type - flange size according to GB2501 sounding and breathable air pipe head;

Marine oil-water cabin air cap


Type D - flange size according to GB569 buoy type oil tank air pipe head;
DS type - flange size according to GB2501 buoy type oil tank air pipe head;

Marine oil-water cabin air cap

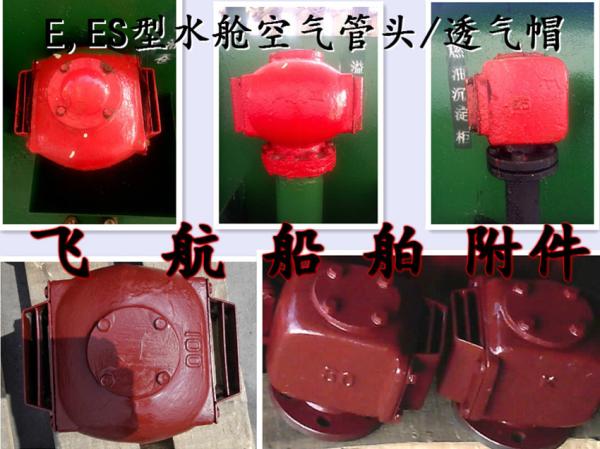

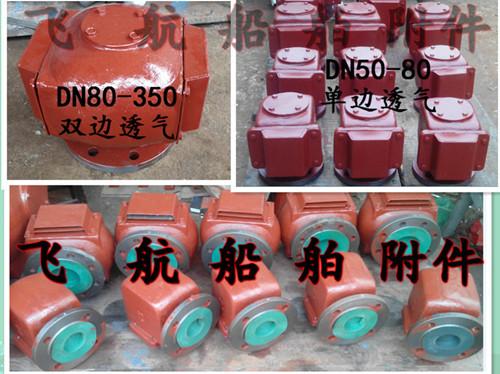

E - flange size according to GB569 float type water tank air pipe head;
ES type - flange size according to GB2501 float type water tank air pipe head;

Marine oil-water cabin air cap

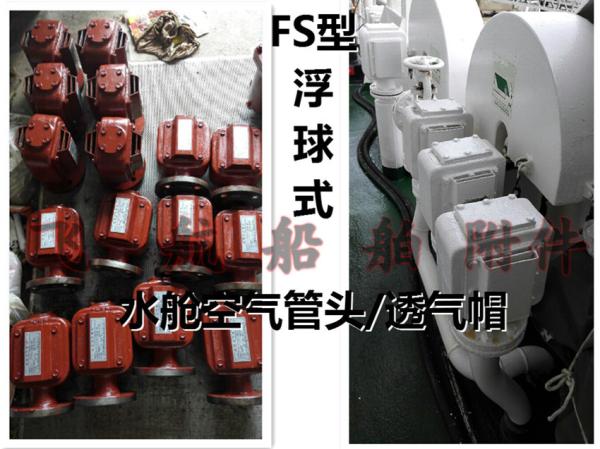

FS - type flange size press GB2501 float type oil, water tank air pipe head;

Marine oil-water cabin air cap
