Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Specifications
Brand Name :
FHJS
Model Number :
BY-412
Certification :
ISO
Place of Origin :
China
MOQ :
1 Kit
Price :
USD 20~100
Payment Terms :
T/T, Western Union
Supply Ability :
50 Kits per day
Delivery Time :
2-8 working days after receiving payments
Packaging Details :

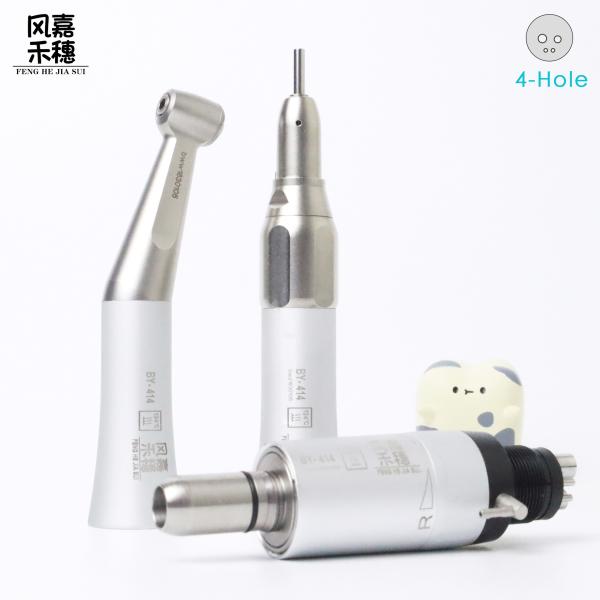

box, 1 SET/BOX, Carton (including 1 piece of contra-angled handpiece, 1 piece of straight handpiece, 1 piece of motor)
Type :
Low Speed Handpiece
Model :
BY-412 External Cooling Advanced
Spray :
External single spray
Working Db :
≤65dB
Material :
AL7075
Usage :
Use to Stable Series Low Speed Handpiece
Body Temperature :
≤20°C
Water Flow :
≥70ml/min
Description

Dental Low Speed Handpiece 1:1 Contra-Angled External Precision Ball-Bearing Kit

Component Specifications

Contra-Angles :

  • Aerospace Bearings: ABEC-7 ceramic ball bearings with <0.8μm runout (ISO 19499 certified)

  • Ergonomic Balance: 0.15mm center-of-gravity offset reduces operator fatigue by 45% in 2-hour procedures

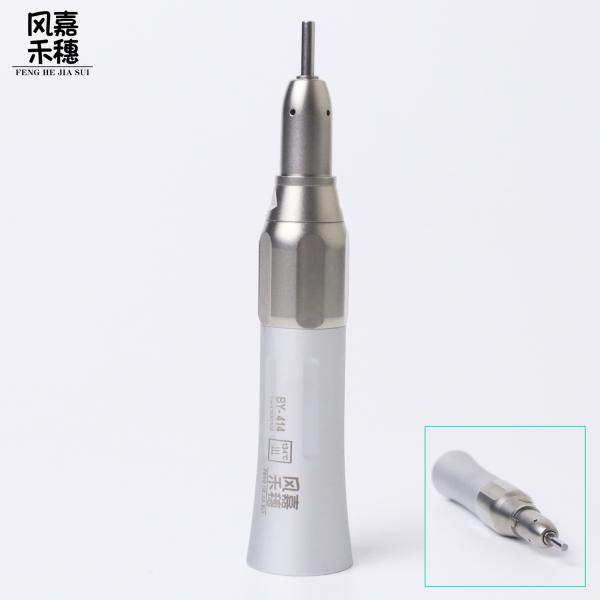

Straight Handpieces :

  • Medical-Grade Titanium Chuck: Compatible with 1.6/2.3mm burs (18N±0.5N clamping force)

  • Anti-Slip Texture: Laser-engraved diamond pattern improves wet-grip friction by 60%

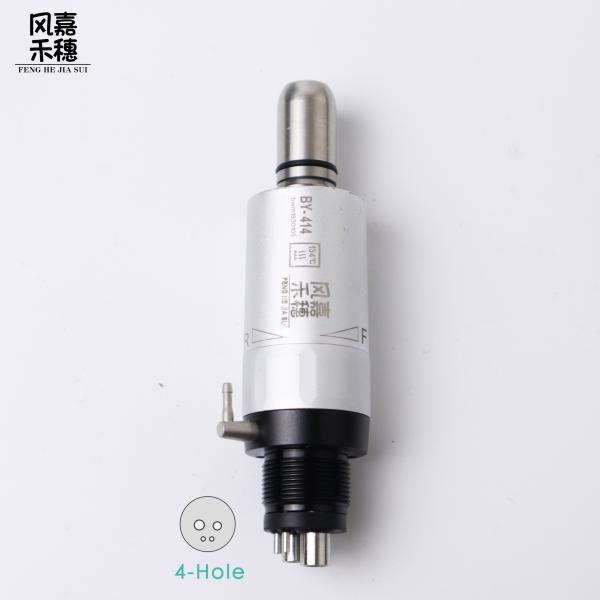

Motors :

  • Smart Speed Control: 0-40,000 RPM stepless adjustment with 0.4s acceleration time

  • Overheat Protection: Automatic RPM reduction at 65°C, emergency shutdown at 80°C

Clinical Applications:

✓ Precision Inlay Prep: 0.8mm mini-head enables Class II cavity preparation with external water cooling

✓ Periodontal Surgery: Dedicated straight handpiece with bone trimming burs maintains <42°C operative temperature

✓ Mobile Clinics: Motor's wide voltage input (12-36V) adapts to portable generators.


Specification:

Color

 Silver
Drive Air Pressure 0.25~0.35MPa
Water pressure 0.1~0.2Mpa
Rotation speed 20000 RPM
Cooling method Water cooling, air cooling
Noise <68dB
Chuck type of Contra-Angled handpiece Push button
Chuck type of Straight handpiece Turn chuck
BearingC Ceramic Ball Bearing
Connection of micormotor M4 B2 2-Hole or 4-Hole
Material AL7075 surface sandblasting and electroplating.
Disinfection Withstand 135°C sterilization
Warranty 18 Months
Light Non Optic




Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing KitDental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing KitDental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing KitDental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing KitDental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit

Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit

Dental Low Speed Handpiece 1/1 Contra-Angled External Precision Ball-Bearing Kit
