45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures
45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures
45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures
45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures
Specifications
Model Number :
BY-114-BF
Certification :
ISO
Noise Level :
Less Than 65 DB
Brand Name :
FHJS
Type :
Surgical Handpiece
Payment Terms :
TT/Alipay/Wechat Pay/Paypal
Bearing Type :
High-Precision Ceramic Ball Bearings
Noise :
≤65dB
Head Size (Height $\times$ Diameter) :
$\approx$ 13.2 Mm $\times$ 11.2 Mm (Miniaturized Surgical Head)
Place Of Origin :
Foshan，China
Supply Ability :
10000 PCS/Month
Price :
20-100USD
Water Spray Type :
0.08-0.20MPa (0.8-2.0kgf/cm)
Delivery Time :
7-30 Days
Water Pressure :
0.3Mpa
Packaging Details :
Carton Box
MOQ :
5-10
Handpiece Weight :
Ergonomic Light Weight (~50 – 65 G)
Description
LED Self Luminous Generator Optional 45° Surgical Handpiece
Product Overview

The Dental Surgical Handpiece is an essential instrument designed specifically for precision and efficiency in dental surgical procedures. This high-quality surgical handpiece is engineered to meet the rigorous demands of modern dental practices, delivering exceptional performance through advanced features and superior build quality.

Key Features
  • 45° Dental Air Turbine design for precise and efficient dental procedures
  • Rear Exhaust Surgical Handpiece to prevent water and debris from entering the patient's mouth
  • Compact 45° Dental Handpiece angle for better visibility and access during surgery
  • Operates at water pressure of 0.3Mpa ensuring smooth cooling and cleaning
  • Compatible with F1.59-1.6MM×21mm-23mm burs for versatile surgical applications
  • Standard air pressure operating range of 0.25-0.3Mpa for optimal performance
  • Ergonomic lightweight design, approximately 50–65 grams, for comfortable handling
  • Low noise level of less than 65dB to reduce patient discomfort during procedures
Technical Specifications
Parameter Specification
Bur Compatibility F1.59-1.6MM × 21mm-23mm
Maximum Speed 40,000 min/rpm
Working Air Pressure 0.25-0.3 Mpa
Connection Coupler/Joint 2-Hole (Borden) / 4-Hole (Midwest)
Noise Level ≤65 dB
Head Size (Height × Diameter) ≈ 13.2 mm × 11.2 mm (Miniaturized Surgical Head)
Handpiece Weight Ergonomic Light Weight (~50–65 g)
Applicable Bur Type FG Burs / Extra Long Surgical Burs (Ø1.59–1.60 mm)
Standard Air Pressure 0.25-0.3 Mpa
Cooling System 4 Way Water and Air Cooling
Applications

The FHJS Dental Surgical Handpiece, model BY-114-BF, is a specialized instrument designed for precision and efficiency in various dental surgical procedures. Certified by ISO and originating from Foshan, China, this 45° Dental Handpiece meets the highest standards for reliability and safety in clinical applications.

This oral surgery handpiece is particularly suitable for procedures requiring meticulous control and reduced noise levels. Its miniaturized surgical head allows for enhanced visibility and access in confined oral spaces, making it ideal for delicate oral surgeries including tooth extractions, implant surgeries, bone shaping, and other oral surgical interventions requiring precision and reliability.

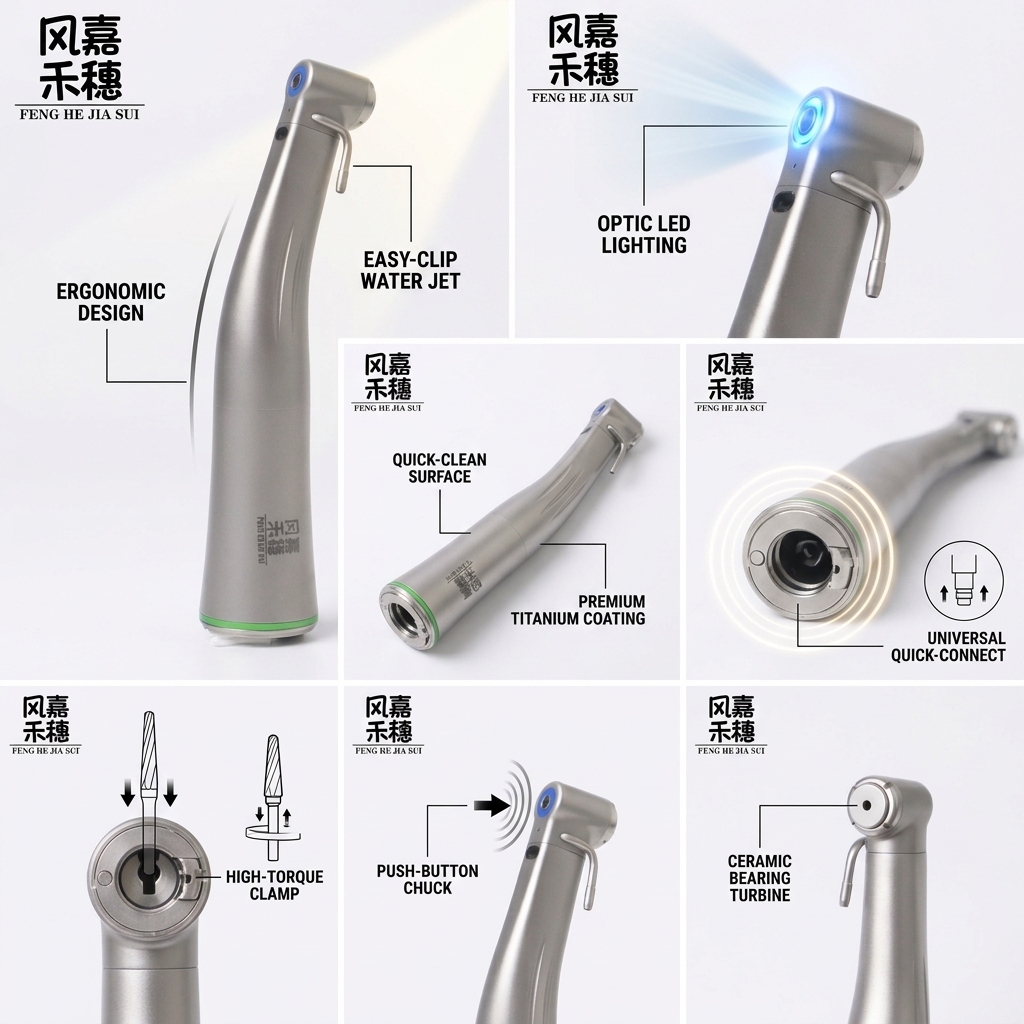

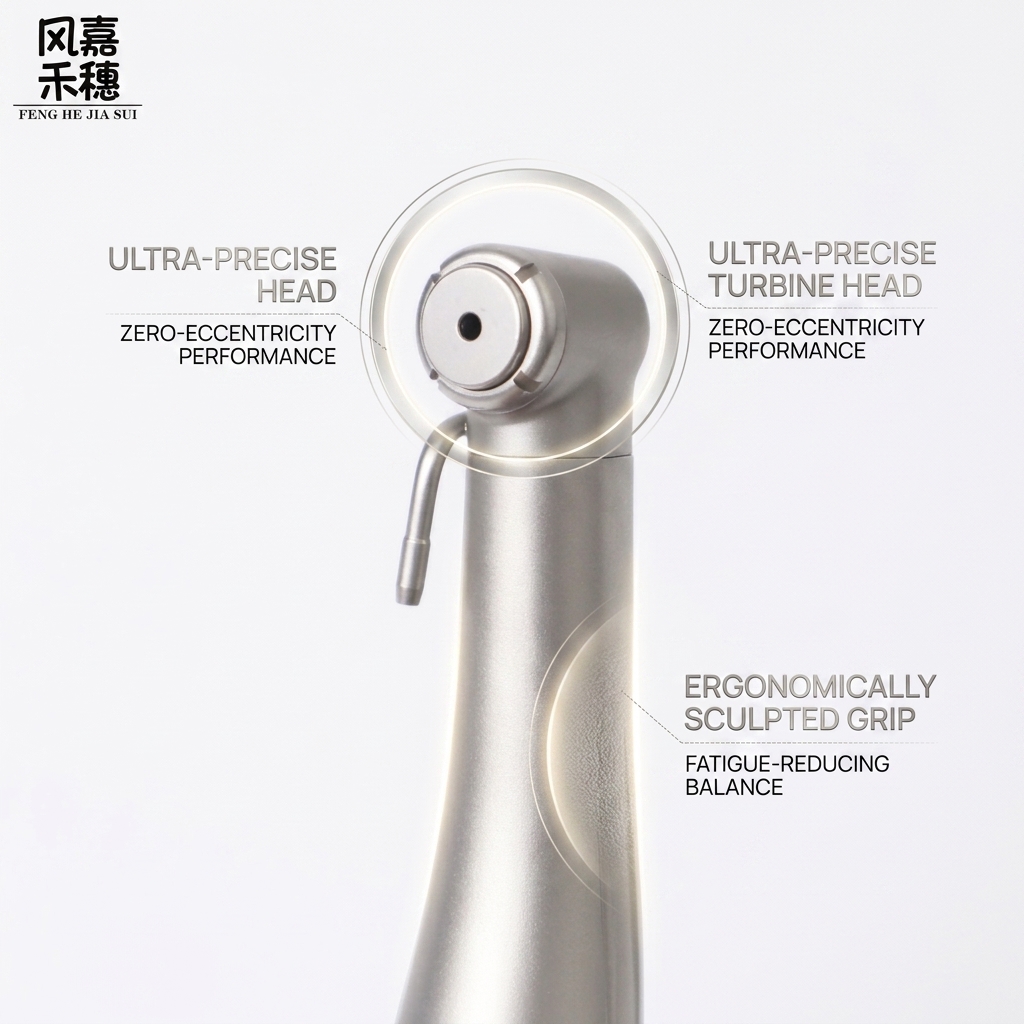

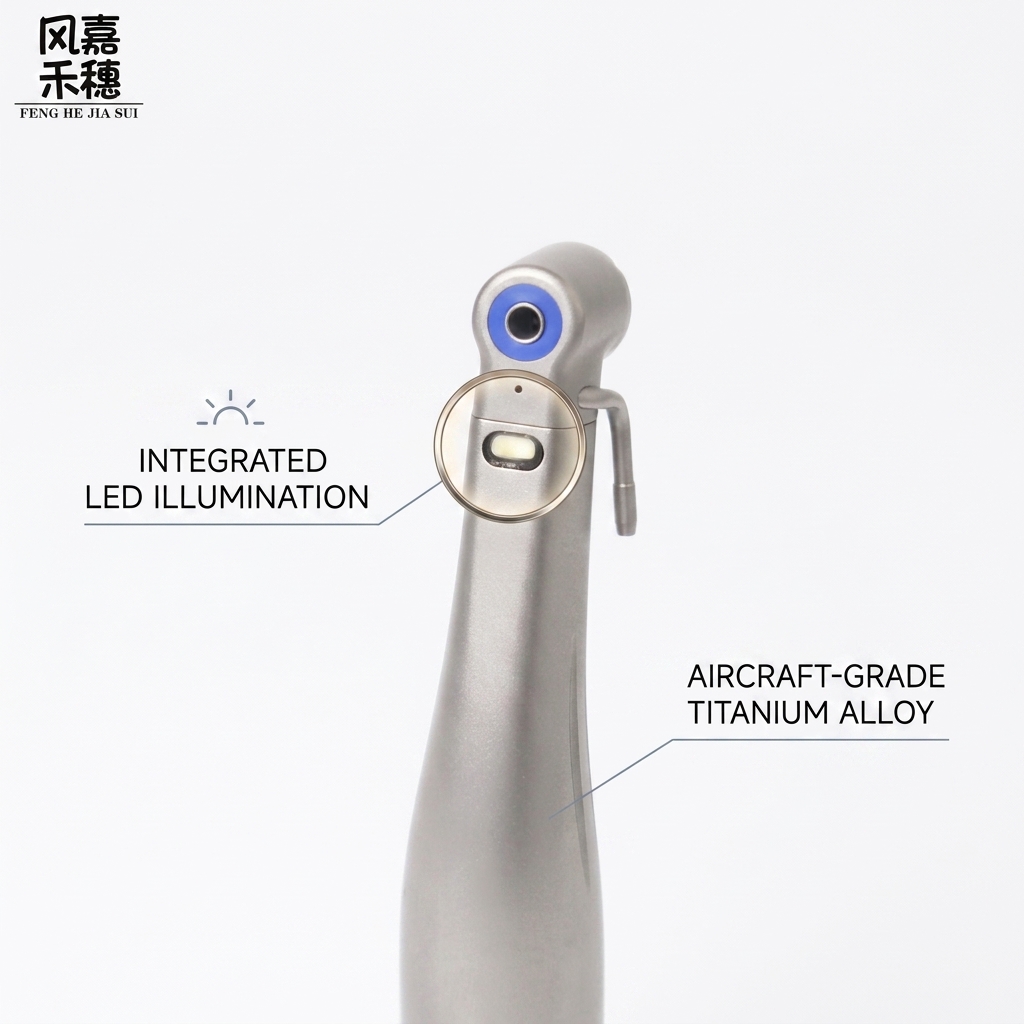

Product Images
45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures 45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures 45 Degree Dental Surgical Handpiece with High-Precision Ceramic Ball Bearings and Rear Exhaust System for Precision Procedures
