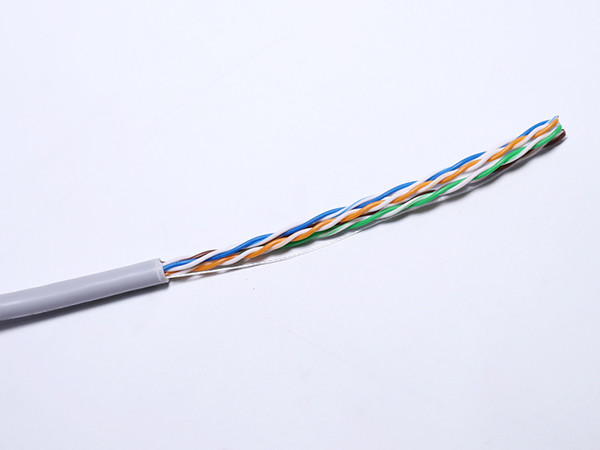

CAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE
CAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE
CAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE
CAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE
Specifications
Model Number :
Cat.5E U-UTP
Structure :
4P Twisted Pair
Brand Name :
FHDT
Conductor :
24 AWG
MOQ :
500 boxes
Delivery Time :
3-4 weeks
Conductor Material :
Oxygen-free copper wire
Price :
Negotiable
Application :
Telecommunication / Cabling System
Color :
Customized
Certification :
ISO/IEC 11801-2008, TIA/EIA-568B.2-2001
Payment Terms :
Usually T/T,other terms negotiable
Type :
Cat.5E U-UTP
Jacket Material :
LLDPE
Supply Ability :
3-4 weeks for mass production
Number Of Conductors :
8
Packing :
boxes
Place of Origin :
Chengdu, China
Packaging Details :
boxes
Description

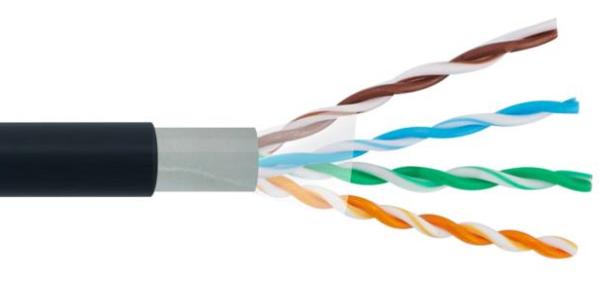

Cat.5E U-UTP DOUBLE-JACKET OUTDOOR Solid Copper Lan Cable



◆Standards


UL Subject 444,ANSI/TIA 568.2.D ,

ISO / IEC 11801, IEC 61156-5 ,YD/T 1019

◆Application


100 BASE-Tc 100 BASE-TX

100VG-AnyLAN 1000 BASE-T

1000 BASE-TX 155 Mbps ATM

◆Characteristics

CAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLECAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLECAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLECAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLECAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE



◆Mechanical Charateristics

Operating Temperature

-20~75℃

Maximum Pulling Force

110N

Minimun Bending Radius

8 X O.D.

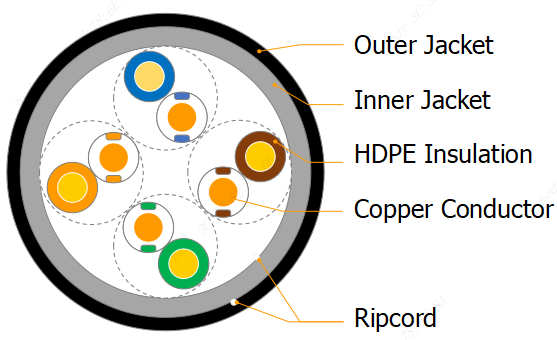

◆Product Structure


Product Name

CAT 5E 4PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE

CAT 5E 8PAIR DOUBLE-JACKET OUTDOOR U/UTP CABLE

Conductor

24AWG

24AWG

Number Of Pairs

4

8

Insulation Material

Solid PE

Solid PE

Color Code

White&Blue/Blue White&Orange/Orange White&Green/Green White&Brown/Brown

Inner Jacket Materia

PVC

PVC

Outer Jacket Materia

PE

PE

Ripcord

Yes

Yes

Nominal Cable Diameter

6.3mm

12.9mm

◆Electrical Charateristics


Feq

MHZ

IL

RL

NEXT

PS NEXT

ACRF

PS ACRF

≤dB/100m

≥dB

≥dB/100m

≥dB/100m

≥dB/100m

≥dB/100m

4.00

4.1

23.0

56.3

53.3

52.0

49.0

8.00

5.8

24.5

51.8

48.8

45.9

42.9

10.00

6.5

25.0

50.3

47.3

44.0

41.0

16.00

8.2

25.0

47.2

44.2

39.9

36.9

20.00

9.3

25.0

45.8

42.8

38.0

35.0

25.00

10.4

24.3

44.3

41.3

36.0

33.0

31.25

11.7

23.6

42.9

39.9

34.1

31.1

62.50

17.0

21.5

38.4

35.4

28.1

25.1

100.00

22.0

20.1

35.3

32.3

24.0

21.0



FAQ

Cat.5E U-UTP double jacket Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
