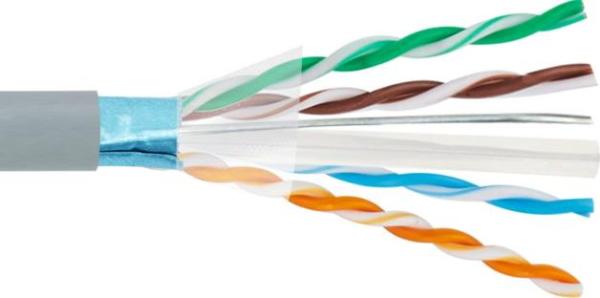

CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
CAT 6A 4PAIR F/UTP CABLE
Specifications
Type :
Cat.6A F-UTP
Brand Name :
FHDT
Model Number :
Cat.6A F-UTP
Certification :
ISO/IEC 11801-2008, TIA/EIA-568B.2-2001
Place of Origin :
Chengdu, China
MOQ :
500 drums
Price :
Negotiable
Payment Terms :
Usually T/T,other terms negotiable
Delivery Time :
3-4 weeks
Packaging Details :
Neutral drum, 305m/drum
Number Of Conductors :
8
Jacket Material :
PVC&LSZH
Quantity :
305m/drum
Conductor Material :
Oxygen-free copper wire
Application :
Telecommunication / Cabling System
Structure :
4P Twisted Pair
Packing :
Neutral Drum
Color :
Customized
Support :
OEM or ODM
Description


Cat.6A F-UTP 4 Pairs High Performance Lan Cable


◆Standards

UL Subject 444,ANSI/TIA 568.2.D ,

ISO / IEC 11801, IEC 61156-5 ,YD/T 1019

◆Application

100 BASE-Tc 100 BASE-TX

100VG-AnyLAN 1000 BASE-T

1000 BASE-TX 155 Mbps ATM

622 Mbps ATM 10GB ETHERNET


◆Characteristics

CAT 6A 4PAIR F/UTP CABLECAT 6A 4PAIR F/UTP CABLECAT 6A 4PAIR F/UTP CABLECAT 6A 4PAIR F/UTP CABLECAT 6A 4PAIR F/UTP CABLE


◆Mechanical Charateristics


Operating Temperature

-20~75℃

Maximum Pulling Force

110N

Minimun Bending Radius

8 X O.D.

Flame Test

PVC: CMX/CM/CMR LSZH:CPR-B2ca/Cca/Dca/Eca

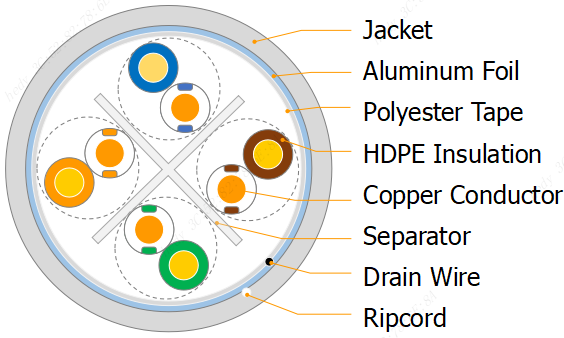

◆Product Structure


Product Name

CAT 6A 4PAIR S/FTP CABLE

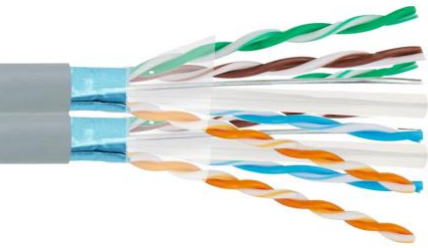

CAT 6A 8PAIR S/FTP CABLE

Conductor

23AWG

23AWG

Number Of Pairs

4

4

Insulation Material

Solid PE

Solid PE

Color Code

White&Blue/Blue White&Orange/Orange White&Green/Green White&Brown/Brown

Individual Shield&Material

AL Foil

AL Foil

Drain Wire

Yes

Yes

Outer Jacket Materia

PVC/LSZH

PVC/LSZH

Ripcord

Yes

Yes

Nominal Cable Diameter

7.7mm

15.7mm

◆Electrical Charateristics

Feq

MHZ

IL

RL

NEXT

PS NEXT

ACRF

PS ACRF

≤dB/100m

≥dB

≥dB/100m

≥dB/100m

≥dB/100m

≥dB/100m

4.00

3.8

23.0

66.3

63.3

56.0

53.0

8.00

5.3

24.5

61.8

58.8

49.9

46.9

10.00

5.9

25.0

60.3

57.3

48.0

45.0

16.00

7.5

25.0

57.2

54.2

43.9

40.9

20.00

8.4

25.0

55.8

52.8

42.0

39.0

25.00

9.4

24.3

54.3

51.3

40.0

37.0

31.25

10.5

23.6

52.9

49.9

38.1

35.1

62.50

15.0

21.5

48.4

45.4

32.1

29.1

100.00

19.1

20.1

45.3

42.3

28.0

25.0

200.00

27.6

18.0

40.8

37.8

22.0

19.0

250.00

31.1

17.3

39.3

36.3

20.0

17.0

300.00

34.3

17.3

38.1

35.1

18.5

15.5

400.00

40.1

17.3

36.3

33.3

16.0

13.0

500.00

45.3

17.3

34.8

31.8

14.0

11.0



FAQ

Cat.6A F-UTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
