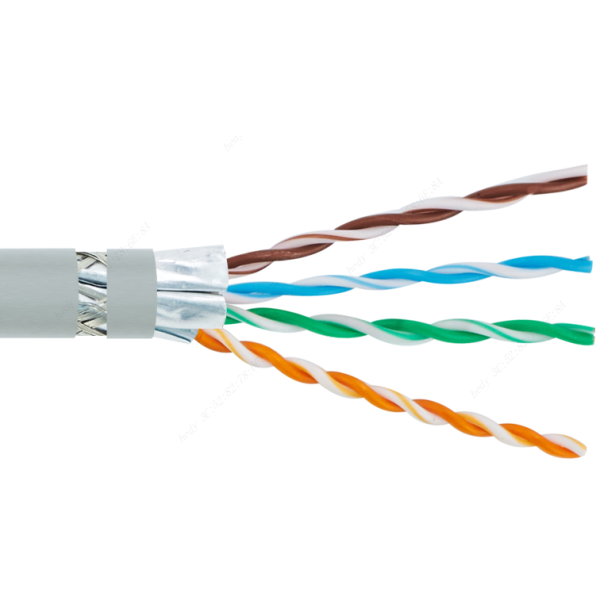

CAT 7A 4PAIR S/FTP CABLE
CAT 7A 4PAIR S/FTP CABLE
CAT 7A 4PAIR S/FTP CABLE
CAT 7A 4PAIR S/FTP CABLE
CAT 7A 4PAIR S/FTP CABLE
CAT 7A 4PAIR S/FTP CABLE
Specifications
Color :
Customized
Conductor :
22AWG
Jacket Material :
PVC&LSZH
Type :
Cat.7A S-FTP
Number Of Conductors :
8
Brand Name :
FHDT
Model Number :
Cat.7A S-FTP
Certification :
IEEE802.3an, ISO/IEC 11801-2008, ANSI/TIA-568C.2-2009
Place of Origin :
Chengdu, China
MOQ :
500 drums
Price :
Negotiable
Payment Terms :
Usually T/T,other terms negotiable
Supply Ability :
3-4 weeks for mass production
Delivery Time :
3-4 weeks
Packaging Details :
Neutral drum, 305m/drum
Product Name :
S-FTP Cat.7A Ethernet Cable
Conductor Material :
Oxygen-free copper wire
Structure :
4P Twisted Pair
Application :
Telecommunication / Cabling System
Quantity :
305m/drum
Description
Oem S-FTP 4 Pairs Low Cross Talk Index Cat.7A Ethernet Cable

◆Standards

UL Subject 444,ISO / IEC 11801 ,

IEC 61156-5,YD/T 1019

◆Application

100 BASE-Tc 100 BASE-TX

100VG-AnyLAN 1000 BASE-T

1000 BASE-TX 155 Mbps ATM

622 Mbps ATM 10GB ETHERNET


◆Characteristics

CAT 7A 4PAIR S/FTP CABLECAT 7A 4PAIR S/FTP CABLECAT 7A 4PAIR S/FTP CABLECAT 7A 4PAIR S/FTP CABLE


◆Mechanical Charateristics

Operating Temperature

-20~75℃

Maximum Pulling Force

110N

Minimun Bending Radius

8 X O.D.

Flame Test

PVC: CMX/CM/CMR LSZH:CPR-B2ca/Cca/Dca/Eca

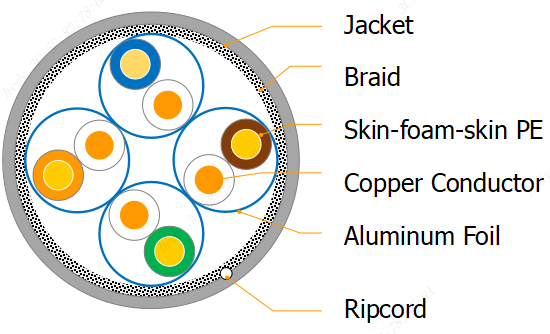

◆Product Structure

Product Name

CAT 7A 4PAIR S/FTP CABLE

Conductor

23AWG

Number Of Pairs

4

Insulation Material

Skin-Foam-Skin

Color Code

White&Blue/Blue White&Orange/Orange White&Green/Green White&Brown/Brown

Individual Shield&Material

AL Foil

Outer Shield&Material

Braided Wire

Drain Wire

No

Outer Jacket Materia

PVC/LSZH

Ripcord

Yes

Nominal Cable Diameter

8.0mm

Feq

MHZ

IL

RL

NEXT

PS NEXT

ACRF

PS ACRF

≤dB/100m

≥dB

≥dB/100m

≥dB/100m

≥dB/100m

≥dB/100m

4.00

3.7

23.0

78.0

75.0

78.0

75.0

8.00

5.2

24.5

78.0

75.0

77.2

74.2

10.00

5.8

25.0

78.0

75.0

75.3

72.3

16.00

7.3

25.0

78.0

75.0

71.2

68.2

20.00

8.2

25.0

78.0

75.0

69.3

66.3

25.00

9.2

24.3

78.0

75.0

67.3

64.3

31.25

10.3

23.6

78.0

75.0

65.4

62.4

62.50

14.6

21.5

78.0

75.0

59.4

56.4

100.00

18.5

20.1

75.4

72.4

55.3

52.3

200.00

26.5

18.0

70.9

67.9

49.3

46.3

250.00

29.7

17.3

69.4

66.4

47.3

44.3

300.00

32.7

17.3

68.2

65.2

45.8

42.8

400.00

38.0

17.3

66.4

63.4

43.3

40.3

500.00

42.8

17.3

64.9

61.9

41.3

38.3

600.00

47.1

17.3

63.7

60.7

39.7

36.7

1000

61.9

17.3

60.4

57.4

35.3

32.3



FAQ

Cat.7A S-FTP Lan Cable
Q1. Can I have a sample order for the cable?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2. What about the lead time?
A: 1 week for Sample preparing, 3-4 weeks for mass production.

Q3. Do you have any MOQ limit for Lan Cable order?
A: Low MOQ, 1pc for sample checking is available. 200 boxes (305m/box) for mass production

Q5. How to proceed an order for Lan Cable?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We provide packaging detail and confirm with customer.
Then we arrange the production.

Q6. Is it OK to print my logo on Lan cable product?
A: Yes. Please inform us formally before our production.

Q7: Do you offer guarantee for the products?
A: Yes, we offer 25 years warranty to our products.
