Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades
Specifications
Material Grade :
AS2027 NiCr2-500
Material :
Ni-hard Cast Iron
Service :
ODM, OEM
Size :
Customized According To Your Drawings
Hardness :
HBW≥630
Brand Name :
FH®
Model Number :
FH 1207
Certification :
ISO 9001, ISO14001
Place of Origin :
China
MOQ :
50 Pieces
Price :
USD 11-30/piece
Payment Terms :
T/T
Supply Ability :
1000 tons/year
Delivery Time :
20-30 Working Days
Packaging Details :
Packed in Plywood Wooden Cases or Stretch Film Wrapping on Pallets
Description

FH® Concrete Mixer Wear Blades are specially designed curved-type wear parts used in heavy-duty concrete mixers. This arc-shaped geometry improves mixing efficiency while ensuring maximum abrasion resistance under continuous impact from cement, sand, and aggregate materials.


Manufactured by Wuxi Junteng Fanghu Alloy Technology Co., Ltd. (FH®), these blades are engineered for long service life, stable performance, and reduced maintenance costs in demanding concrete production environments.


Product Overview
This curved concrete mixer wear blade is widely used in:

  • Twin-shaft concrete mixers
  • Pan mixers
  • Planetary mixers
  • Heavy-duty batching plants
  • Construction and infrastructure mixing systems

The arc design allows smoother material flow, reduces dead zones in the mixer, and improves overall mixing uniformity.


Key Features & Advantages
1. Curved Arc Design for Efficient Mixing
The precision-engineered curved shape improves material circulation inside the mixer, enhancing mixing efficiency and reducing energy consumption.
2. Ni-Hard Alloy/ High Chromium Alloy Wear Resistance
Made from high chromium white iron / Ni-Hard alloy, the blade offers excellent resistance to:

  • Abrasion from sand & gravel
  • Impact from heavy aggregates
  • Continuous high-speed mixing wear

3. Extended Service Life
Compared with standard steel blades, FH® alloy wear blades significantly extend operating life and reduce replacement frequency.
4. Stable Performance in Harsh Conditions
Designed for continuous operation in:

  • Ready-mix concrete plants
  • Precast production facilities
  • Mining & aggregate processing environments

5. OEM & Custom Manufacturing
We support production based on:

  • Customer drawings
  • Mixer models
  • Dimensional requirements


Why FH® Concrete Mixer Wear Blades ?
As a professional alloy casting manufacturer, FH® (Wuxi Junteng Fanghu Alloy Technology Co., Ltd.) specializes in high-performance wear parts for industrial mixing and high-abrasion environments.


Our advantages:

  • Direct factory supply (no middleman)
  • Stable metallurgy & strict quality control
  • Advanced casting and heat treatment process
  • OEM & drawing-based production
  • Export experience to EU, USA, Middle East markets


Material Grade Table:


Standard Specification for Ni-hard Cast Iron
Reference Standard
(ISO 21988-2005)		 Nominal Chemical Composition (%) Eqv. Standards
C Si Mn P S Ni Cr
HBW480Cr2 2.50-3.00 ≤0.80 ≤0.80 ≤0.10 ≤0.10 3.00-5.50 1.50-3.00 BTM Ni4Cr2-DT
EN-GJN-HV520
AS2027 NiCr2-500
ASTM A 532 Ni-Cr-Lc
G-X 260 NiCr 4 2
HBW500Cr9 2.40-2.80 1.50-2.20 0.20-0.80 ≤0.06 ≤0.06 4.00-5.50 8.00-10.00 EN-GJN-HV550 Ni-Cr-Hc
AS2027 NiCr1-550
G-X 330 NiCr 4 2
HBW510Cr2 3.00-3.60 ≤0.80 ≤0.80 ≤0.10 ≤0.10 3.00-5.50 1.50-3.00 BTM Ni4Cr2-GT
AS2027 NiCr4-500
ASTM A532 C1-B Ni-Cr-Hc
ASTM A532 C1-C Ni-Cr-GB
HBW555Cr9 2.50-3.50 1.50-2.50 0.30-0.80 ≤0.08 ≤0.08 4.50-6.50 8.00-10.00 BTM Cr9Ni5
EN-GJN-HV600
AS2027 NiCr4-600
G-X 300 CrNiSi9 5 2
HBW630Cr9 3.20-3.60 1.50-2.20 0.20-0.80 ≤0.06 ≤0.06 4.00-5.50 8.00-10.00 BTM Cr9Ni5
AS2027 NiCr4-630
ASTM A532 C1-D Ni-HiCr

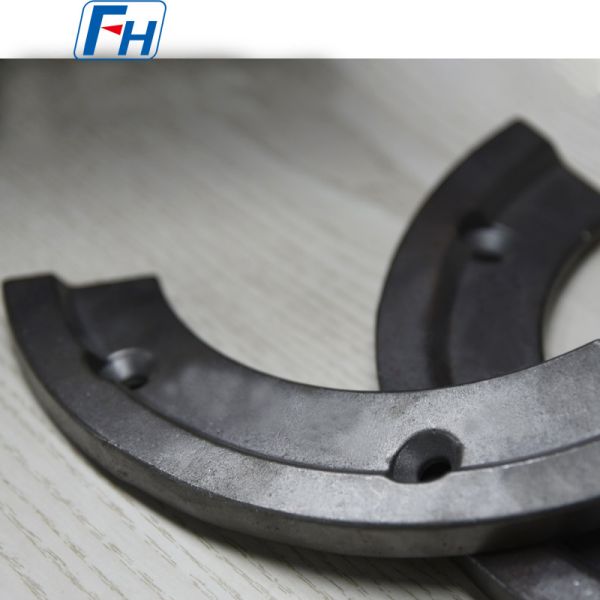

Genuine Photos of FH® Ni-hard Cast Iron Concrete Mixer Wear Blades


Concrete Mixer Wear Blades (Curved Type) | FH® Ni-Hard Alloy Blades


Contact Manufacturer
Wuxi Junteng Fanghu Alloy Technology Co., Ltd. (FH®)
Professional manufacturer of wear-resistant alloy casting parts for concrete and industrial mixing systems.
