Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Specifications
Brand Name :
YANING
Model Number :
YN-AS-01
Certification :
CE/ISO
Place of Origin :
Dongguan, Guangdong, China
MOQ :
1 set
Price :
$1900-2200/set
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
1000+sets/month
Delivery Time :
7~25 days based on the quantity
Packaging Details :
plywooden
Product name :
Stainless steel air shower
HEPA filter efficiency :
H13, 99.99%@0.3um
External size(W*L*H) :
1450*3000*2050mm
Internal size(W*L*H) :
1040*2930*1910mm
Noise :
less than 65dB
Laminar flow :
Vertical air flow
Description
Products Description

GMP/ISO/CE Certificates Dust-Free Workshop used SS/SUS304 Air Shower for 2-3 Persons
Dongguan YANING CleanRoom air shower adopts pre-filter and HEPA filtration system, filtration efficiency reaches 99.99%, matched with multiple perspectives and adjustable stainless steel nozzle & big air volume low noise fan. Air velocity can reach 25m/s from air outlet and 18m/s to human body.
MODEL:YN-1000
GMP/CE/ISO CERTIFICATES
MATERIAL: SS/SUS304
OUTER SIZE(MM): 1700W*1240D*2200H
FILTER EFFICIENCY≥99.995%@0.3μm
ELECTRONIC INTERLOCKED
AUTOMATIC DOOR
Product Features:1.Pre-filter
2.High efficiency HEPA filter without clapboard
3.Photoelectric sensor control
4.LCD control panel
5.Stainless steel rotatable nozzle
6.Electronic interlocks
7.Specially equipped blower
Air Shower
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
①G4 pre filter and H13 HEPA filter, 2-stage filtration. Ensure purification level.
②Fully automatic infrared induction blowing.
③Equipped with 360-degree adjustable stainless .steel nozzle.Left and right sides blowing shower,large air volume and low noise centrifugal fan.The air velocity of the nozzle can reach 22-27m/s.
④Adopt LCD time display, air shower time is adjustable from 0-99S, show the completion time of air shower, with humanized voice prompts.

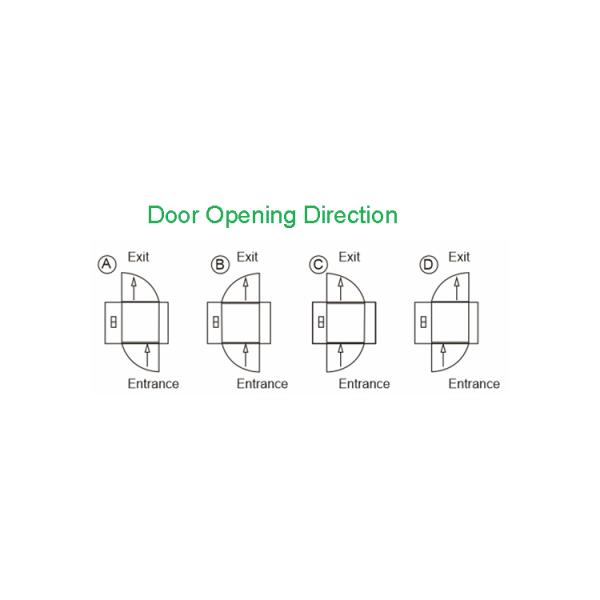

⑤According to the needs of the site, customize the door direction.

Product Description
The air shower is a necessary passage for people to enter the clean room,which can reduce the pollution caused by people entering and leaving the clean room. It is a kind of local purification equipment with strong versatility, which is installed between the clean room and the non-clean room. When personnel want to enter the clean area, they need to be showered through the air shower. The clean air blown out can remove the dust carried by the personnel, and can effectively block and reduce the dust source from entering the clean area. At the same time, the front and rear doors are electronically interlocked, which can also act as an airlock to control the outside polluted air entering the clean area. This equipment is widely used in biological laboratories, pharmaceutical factories, hospitals, food processing, electronics factories, painting and other air purification places.
Our company produces a fully automatic high-tech intelligent air shower room with a voice prompt system. When people enter the air shower, the automatic voice system prompts people to complete the entire process of blowing, showering and dust removal in an orderly manner. Humanized voice prompts give people a kind of cordial feeling, and achieve an effective purification effect.
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Configuration Options
1.According to the material requirements: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
2.According to powersupply requirements: voltage 220V/380V, frequency 50Hz/60Hz. Number of phases: single-phase / three-phase; 3.According to therequirements of blowing: single blow, top blow, double blow, three blow; 4.According to the number of people:
single person,double person,multiple people. 5.According to the door requirements: manual doors,automatic 90 degree doors, sliding doors, fastrolling shutter doors. curtain doors, no doors, etc.
6.According to the requirements of use: manual door, automatic door, S type,L type,three-doors air shower, bufferroom, etc.
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Products Description
Yaning Customized air Shower High Speed air Shower for Clean Room air Cleaning Equipment
Powder coated steel Air shower
Stainless steel Air shower
Product Parameters
Product Name
Single Person Double Blow
Two Person Double Blow
Three Person Double Blow
Air shower Tunnel
Product Model
YN-FLS-01
YN-FLS-02
YN-FLS-03
YN-FLS-04
Outside DimensionsW×D×H(mm)
1290×1000×2130
1290×1500×2130
1290×2000×2130
1290×3000×2130
Internal Size W×D×H(mm)
790×880×1925
790×1380×1925
790×1880×1925
790×2880×1925
Suitable Person
1-2 Person
2-3 Person
3-4 Person
4-5 Person
Nozzle
12 Pcs
18 Pcs
24 Pcs
36 Pcs
Air Velocity
22-27m/s
22-27m/s
22-27m/s
22-27m/s
Noise
＜65 dB (A)
＜65 dB (A)
＜65 dB (A)
＜65 dB (A)
G4 Pre filter size(mm)
745×375×21×2 Pcs
900×375×21×2 Pcs
745×375×21×2 Pcs
745×375×21×3 Pcs
H13 Hepa filter size(mm)
610×610×69×1 Pcs
610×610×69×2 Pcs
610×610×69×2 Pcs
610×610×69×3 Pcs
Filter Efficiency
99.95%@0.3μm
99.95%@0.3μm
99.95%@0.3μm
99.95%@0.3μm
Fan Power(W)
1100W×1 Pcs
750W×2 Pcs
1100W×2 Pcs
1100W×3 Pcs
LED Lamp Power(W)
15W×1 Pcs
15W×1 Pcs
15W×2 Pcs
15W×3 Pcs
Power Supply
Three-phase,380V/50Hz
