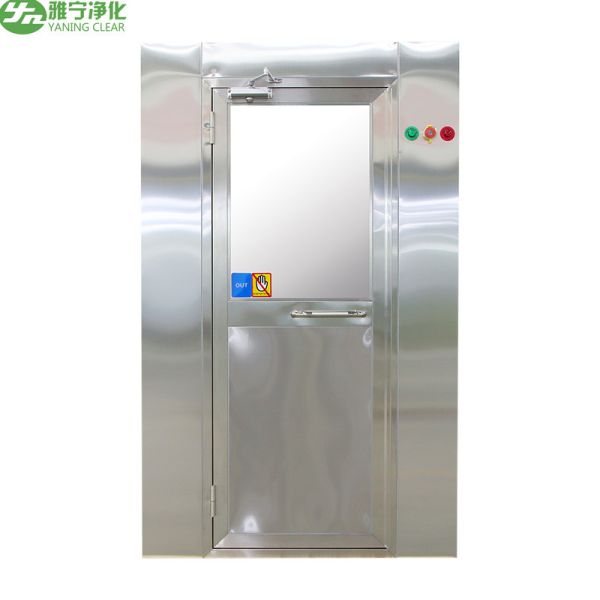

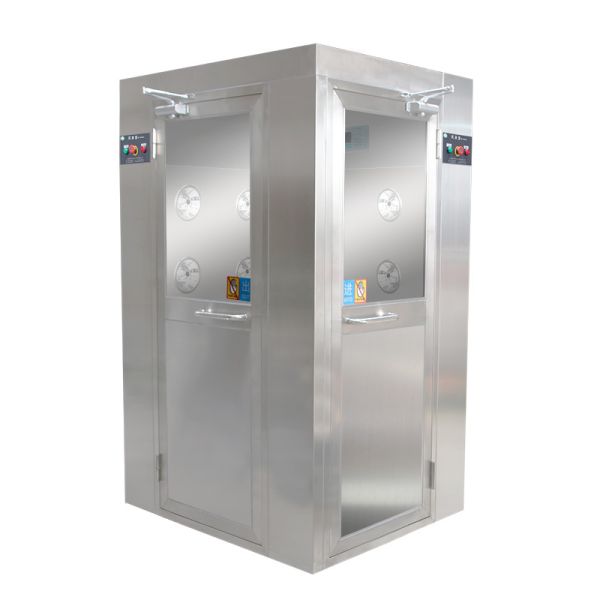

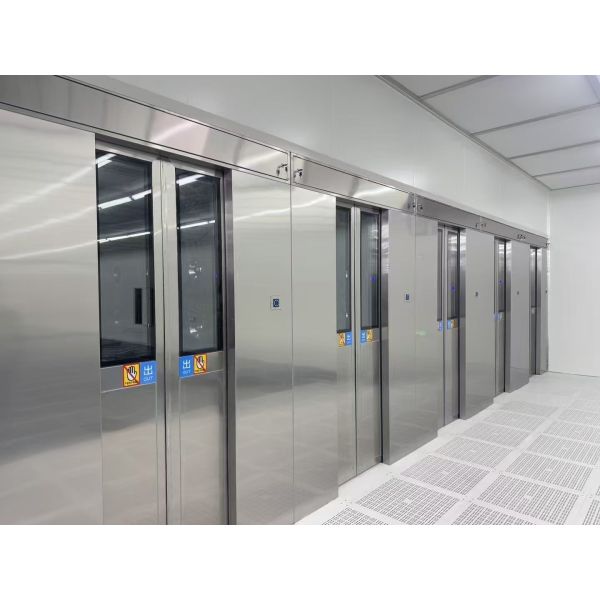

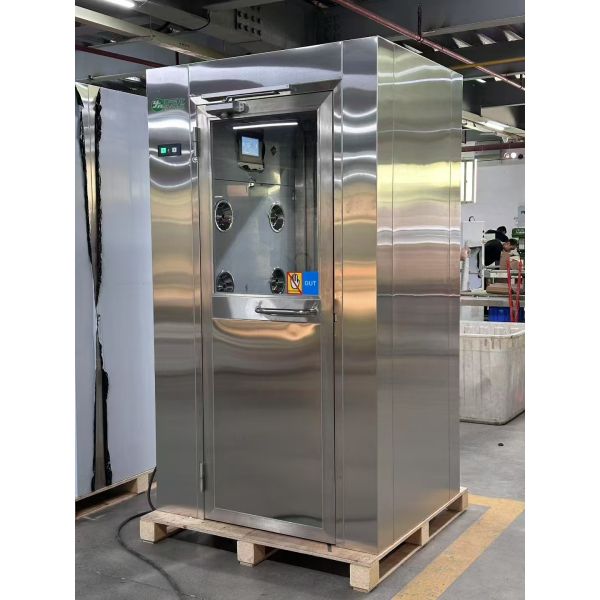

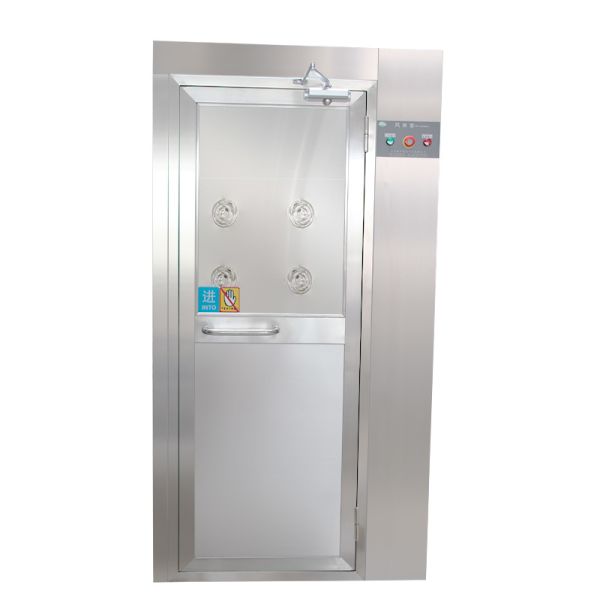

ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
Specifications
Brand Name :
YANING
Model Number :
YN-AS-25-1222
Certification :
ISO/CE
Place of Origin :
Dongguan , Guangdong
MOQ :
1 set
Price :
$2000-3000/set
Payment Terms :
L/C,T/T,Western Union,MoneyGram
Supply Ability :
5000 sets/month
Delivery Time :
7~25 days based on the quantity
Packaging Details :
plywooden
Condition :
New
Filter Type :
HEPA Filter
Material :
304 Stainless Steel, SUS304
Door Lock :
Electronic Interlock
Capacity :
2-4 people
Applications :
Industrial , laboratory , Hospital
Description

ISO 5 Cleanroom Air Shower with HEPA Filter Air Cleaning Device for Laboratory Use


A cleanroom air shower is a specialized chamber at a cleanroom's entrance that uses high-velocity, HEPA-filtered air jets to blast contaminants (dust, fibers, skin flakes) off personnel or equipment before they enter a highly controlled environment, protecting sensitive manufacturing or research from particle contamination. It acts as an airlock with dual-locking doors, running a timed cycle to dislodge particles, which are then captured and filtered by a recirculation system, preventing them from entering the cleanroom and maintaining ultra-clean conditions.


ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock

ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock


How it works

Entry: A person or item enters the small chamber, and the inner door locks.

Blowing Cycle: Nozzles in the walls and ceiling spray high-velocity, ultra-filtered air (HEPA/ULPA) onto the person/object for 20-40 seconds.

Particle Removal: The forceful air streams dislodge loose particles from clothing and surfaces.

Filtration: The "dirty" air is pulled down and away, filtered, and recirculated within the unit.

Exit: The cycle ends, the exit door unlocks, and the person/item moves into the cleanroom contamination-free.

Key functions & benefits

Reduces contamination: Prevents particles from entering sensitive areas.

Protects products: Safeguards high-tech manufacturing (microelectronics, pharma).

Energy efficient: Air is filtered and reused, not exchanged with the outside.

Increases safety: Essential for environments dealing with hazardous materials when exiting.


ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock


ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock



Product Parameters

Product Name Single Person Double Blow Two Person Double Blow Three Person Double Blow Air shower Tunnel
Product Model YN-FLS-01 YN-FLS-02 YN-FLS-03 YN-FLS-04
Outside Dimension(W×D×H/mm) 1290×1000×2130 1290×1500×2130 1290×2000×2130 1290×3000×2130
Internal Size (W×D×H/mm) 790×880×1925 790×1380×1925 790×1880×1925 790×2880×1925
Suitable Person 1-2 2-3 3-4 4-6
Nozzle 12 Pcs 18 Pcs 24 Pcs 36 Pcs
Air Velocity 22-27 m/s 22-27 m/s 22-27 m/s 22-27 m/s
Noise ≤65 dB (A) ≤65 dB (A) ≤65 dB (A) ≤65 dB (A)
G4 Pre filter size(mm) 745×375×21×1 Pcs 900×375×21×2 Pcs 745×375×21×2 Pcs 745×375×21×3 Pcs
H13 Hepa filter size(mm) 610×610×69×1 Pcs 610×610×69×2 Pcs 610×610×69×2 Pcs 610×610×69×3 Pcs
Filter Efficiency 99.995%@0.3μm 99.995%@0.3μm 99.995%@0.3μm 99.995%@0.3μm
Fan Power(W) 1100W×1 Pcs 750W×2 Pcs 1100W×2 Pcs 1100W×3 Pcs
LED Lamp Power(W) 15W×1 Pcs 15W×1 Pcs 15W×2 Pcs 15W×3 Pcs






ISO 5 Cleanroom Air Shower with HEPA Filter and 304 Stainless Steel Construction Featuring Electronic Interlock
