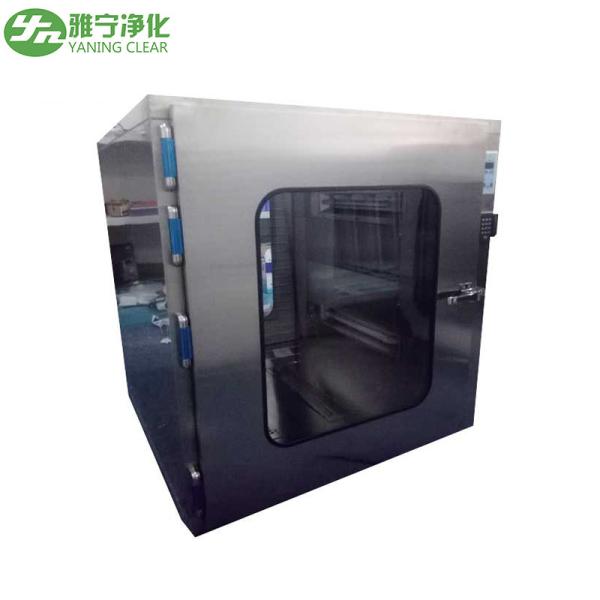

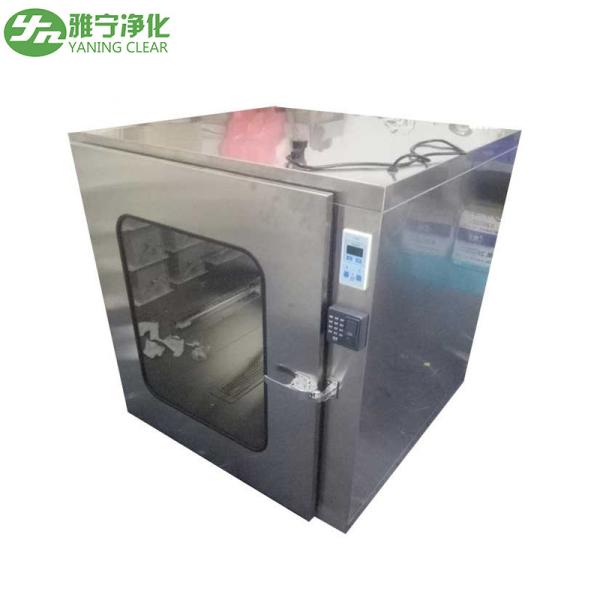

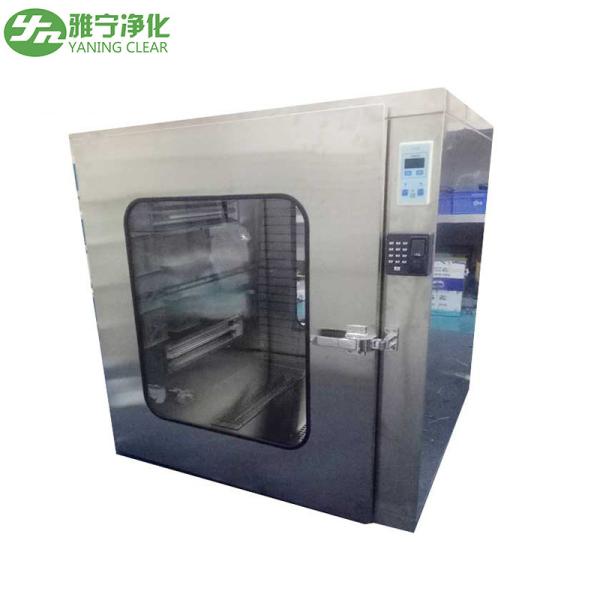

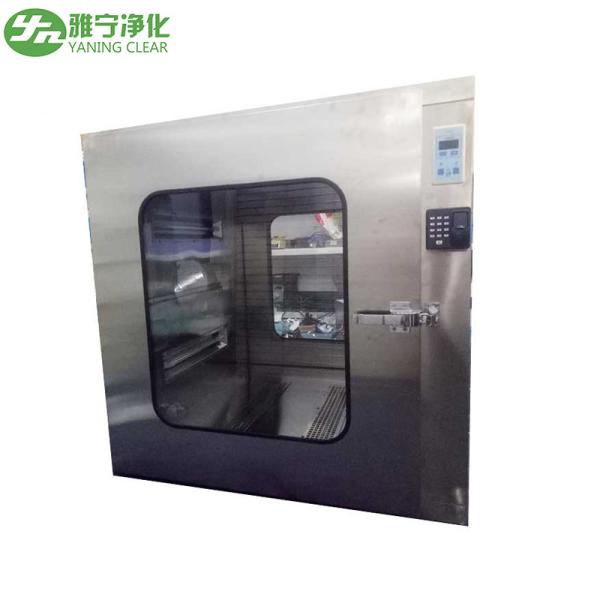

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Specifications
Brand Name :
YN
Model Number :
YN-SPB-840
Certification :
CE/ISO
Place of Origin :
China
MOQ :
1PCS
Price :
reconsideration
Payment Terms :
L/C,D/A,T/T,Western Union
Supply Ability :
5000pcs/month
Delivery Time :
7-15 work days
Packaging Details :
Wooden case
Product name: :
Sterilization pass thru box
External size :
840*600*1000mm
Internal size :
500*550*900mm
Interlock Structure :
Mechanical interlock
Material: :
304 Stainless steel
Accessory: :
Three layers of stainless steel shelves
Terms: :
FOB/CIF/EXW
Loading port: :
Shenzhen or Guangzhou
Description
Static Pass Box

Product Description
Static pass box is a special equipment for transferring small articles between different clean level areas. It can prevent air in the lower clean area to enter the higher clean area effectively. The pass box is equipped with electronic interlock or mechanical interlock.
Configuration Option
①Material: Powder coated steel, Polish SUS 201/304/316; Mirror SUS 201/304/316
②Door Type: Standard external door;Embedded/concealed door; auto lifting door
③Lock Type: Mechanical interlock, electromagnetic interlock
④Others Option: Sterilizer,buzzer alarm, interphone, microcomputer operation panel, conveyor






Static Pass Box(External Door)


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Static Pass Box(Embedded/Concealled Door)


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Products Description

Static Pass Box(External Door)


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Static Pass Box(Embedded/Concealled Door)


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function


External Door Pass Box
Model
YN-CDC-01
YN-CDC-02
YN-CDC-03
YN-CDC-04
External size (mm)
600×600×600
660×500×600
760×600×700
960×800×900
Internal Size (mm)
440×600×500
500×500×500
600×600×600
800×800×800
Sterilization Lamp(W)
8W×1 Pcs
8W×1 Pcs
8W×1 Pcs
15W×1 Pcs
Lock Type
Mechanical interlock; Eletromagnetic interlock
Supply Power
AC 1N 220V/50Hz


Embedded Door Pass Box
Model
YN-NQC-01
YN-NQC-02
YN-NQC-03
YN-NQC-04
External size (mm)
600×600×600
670×580×630
600×600×600
650×580×630
Internal Size (mm)
430×520×470
500×500×500
450×520×470
500×500×500
Sterilization Lamp(W)
8W×1Pcs
8W×1Pcs
8W×1Pcs
8W×1Pcs
Lock Type
Mechanical interlock
Eletromagnetic interlock
Supply Power
AC 1N 220V/50Hz

Success case show


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Our Factory


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Dongguan Yaning Purification Equipment Co.,Ltd is located in Dongguan, the advanced manufacturing center of the Guangdong-Hong Kong-Macao Greater Bay Area. It is an integrated supplier of clean technology solutions integrating technology, research and development, design, manufacturing, sales and installation. The company has more than 200 employees, a plant area of more than
30,000 square meters, and an annual output value of more than 300 million RMB.

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function
Province,With more than ten years of independent R&D and innovation, YANING Purification has obtained more than 30 technical patents and has become a national high-tech enterprise. It has passed the ISO9001:2015 quality management system certification and ISO14001:2015 environmental management system certification, and won the title Guangdong "Abide by contracts and keep promises"
Enterprise, Famous Brand Enterprise in Guangdong


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Packing&Delivery


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Packaging
The product is first wrapped with plastic film, the four corners are protected by cardboard or protective foam, and then fixed in the pallet or wooden box.
shipping
Samples be shipped by DHL/FedExUSP and so on Mass production be shippinh by Air or Sea

Exhibition


Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

Ductless Cleanroom Pass Box High Temperature Sterilization / Drying Function

FAQ

1. Who are we?
We are based in Guangdong, China, start from 2011,sell to Domestic Market(60.00%),Southeast Asia(15.00%),North
America(10.00%),Western Europe(5.00%),Southern Europe(5.00%),Northern Europe(5.00%). There are total about 101-200 people in our
office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Air Shower, Fast Roll Doors, FFU, Operating Room, HEPA Filter

4. Why should you buy from us not from other suppliers?
YANING brand clean room equipment:air shower pass box,clean bench,FFU,softwall clean room YANING brand Air
filters:HEPA,prefilter,pocket filter,V type filter Matched ISO14001,ISO9001,TUV,ROHS.CE,UL Best price and service,each products
strict facty test.

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,CIP,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
