GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
Specifications
Air Shower Area :
W600 × D600 × H600 (mm)
Brand Name :
MRJH
Model Number :
MRJH - FLCDC600N201
Certification :
ISO,CE,UL,RoHS
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
Packaging Details :
Wooden frame
custom made :
support
External Dimensions :
W770 × D690 × H1500 (mm)
Description
GMP Air Shower Pass Box | 760x690x1490mm | 201 Stainless Steel & E-Interlock

Engineered with seamless cleanroom-grade illumination, the transfer chamber ensures accurate visual monitoring of sensitive materials. Its <60dB ultra-quiet architecture maintains ISO-compliant workflows, eliminating acoustic interference in GMP labs and microelectronics production. This dual optimization of optical clarity and acoustic control enables sustained productivity in noise-regulated environments.

Technical Specifications
Parameter Name Parameter
Material 201 stainless steel plate with baking paint outside
Window Design Double-layer tempered glass with silk-screened black edges
Air Shower System 4 adjustable stainless steel air nozzles
Control System Panel control with dual-door electronic interlock
Fan System 220V/50Hz air shower fan, nozzle outlet speed: 13-25 m/s
Lighting Clean lighting LED lamp
Door System Flat door design with pressure handles for airtight sealing
Internal Design Rounded internal corners for easy cleaning and GMP compliance
Manufacturing Process Laser cutting, CNC bending, and laser welding for precision and aesthetics

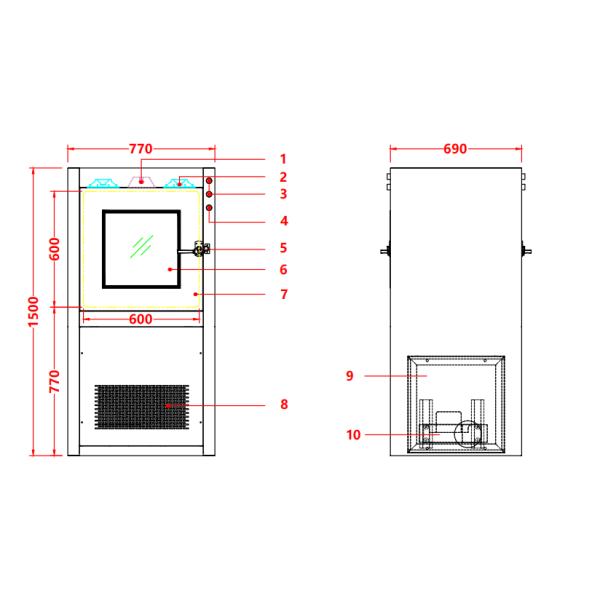

External Dimensions W770 × D690 × H1500 (mm)
Internal Dimensions W600 × D600 × H600 (mm)
Certifications ISO, GMP, CE
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
Key Features
  • 201 Stainless Steel Construction: Durable and corrosion-resistant with baking paint outside for cleanroom compatibility.
  • Aesthetic & Functional Design: Double-layer tempered glass with silk-screened black edges for visibility, sound insulation, and style.
  • High-Efficiency Air Shower: 4 adjustable stainless steel nozzles with 13-25 m/s wind speed for rapid decontamination.
  • Smart Control: Panel control with dual-door electronic interlock to prevent cross-contamination.
  • Advanced Filtration: 2 pre-filters + 1 HEPA filter ensure optimal air quality.
  • Clean Lighting: Integrated LED lamp for illumination during transfers.
  • GMP Compliance: Rounded internal corners and flat door design for easy cleaning and high-end appearance.
  • Reinforced Interlock Mechanism: Made of reinforced steel for extended lifespan.
  • Safety & Visibility: Tempered glass observation window ensures clear visibility and enhanced safety.
  • Precision Manufacturing: Laser cutting, CNC bending, and laser welding for exact dimensions and aesthetic appeal.
Application Scenarios
  • Material transfer in pharmaceutical cleanrooms
  • Sterile sample handling in biomedical laboratories
  • Contamination-sensitive component transfer in electronics manufacturing
GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions GMP Air Shower Pass Box with 201 Stainless Steel Construction and E-Interlock in 760x690x1490mm Dimensions
Frequently Asked Questions
Q1: How does this GMP Air Shower Pass Box ensure compliance with pharmaceutical standards while preventing cross-contamination during material transfer?
This GMP-certified pass box is designed to meet stringent pharmaceutical requirements, featuring a 201 stainless steel construction that resists corrosion and provides a smooth, non-porous surface for easy sanitization. The E-interlock system ensures only one door opens at a time, eliminating cross-contamination risks between clean and non-clean zones. Equipped with HEPA filters at capturing particles, it maintains ISO 14644-1 Class 5 cleanliness, critical for sterile environments. The 760x690x1490mm size balances compactness with functional space, allowing efficient transfer of materials while adhering to GMP guidelines for contamination control in pharmaceutical manufacturing.
Q2: Can the 201 stainless steel construction withstand frequent sanitization and harsh chemicals in pharmaceutical cleanrooms?
Yes. The 201 stainless steel build offers robust corrosion resistance, making it suitable for environments where regular cleaning with disinfectants is essential. Its durable surface resists particle buildup and simplifies maintenance, reducing downtime. The pass box is engineered for heavy use, with welded seams and airtight seals that maintain structural integrity even in high-humidity or chemically intensive settings. For enhanced durability, optional upgrades to 316L stainless steel are available. Routine filter replacements (HEPA filters every 12-18 months) and gasket inspections ensure long-term performance in demanding pharmaceutical cleanrooms.
Q3: How does the 760x690x1490mm size of this pass box optimize space efficiency without compromising air shower effectiveness?
The compact dimensions are strategically designed to fit seamlessly into tight cleanroom layouts while delivering powerful air shower performance. The interior layout ensures uniform airflow distribution, with high-velocity nozzles (≥26 m/s) that thoroughly remove particles from materials or equipment. The 760mm width and 690mm depth accommodate standard lab trays or small batches, while the 1490mm height allows easy access for operators. This size balances space-saving design with efficient particle removal, making it ideal for pharmaceutical labs or production lines where both footprint and performance are critical. The modular design also simplifies installation and integration into existing cleanroom workflows.
