584×584×480 Liquid Trough HEPA Vent - Zero-Leakage Cleanroom Air Supply for Semiconductor/Biotech

IP55-rated 584×584×480 liquid trough HEPA vent. Leakproof design for ISO Class 3 cleanrooms in semiconductor fabs, BSL-3 labs, and sterile compounding.

Technical Specifications
Parameter Name Value
Main Body Material High-quality cold plate with baking varnish

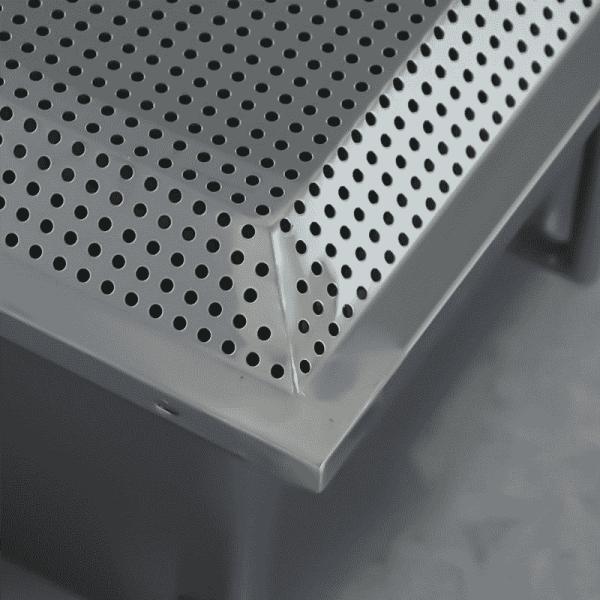

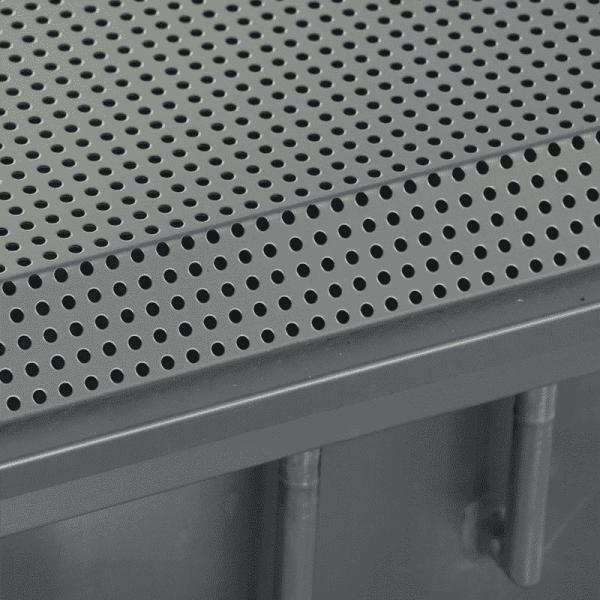

Diffuser Plate Material 304 stainless steel

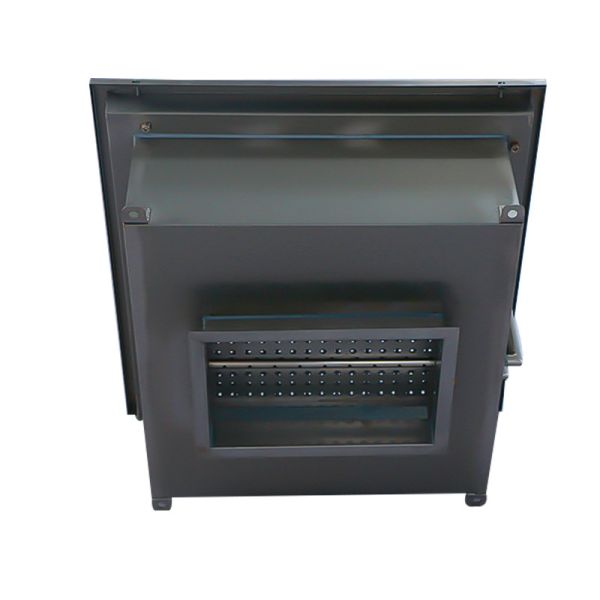

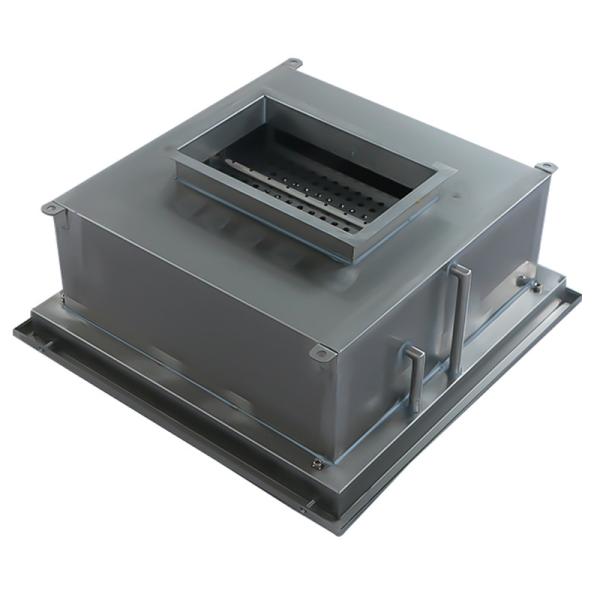

Air Inlet Flange 320×200 mm (cold plate with baking varnish)
Liquid Tank HEPA Filter 524×524×93 mm

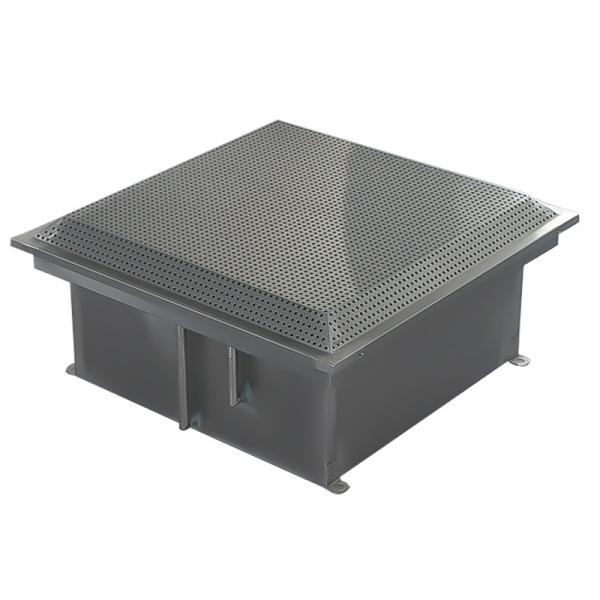

Body Dimensions 584×584×480 mm
Ceiling Opening 594×594 mm
Diffuser Plate Dimensions 628×628×15 mm
Lifting Ring Hole φ12 mm (cold plate with baking varnish)
Key Features
  • Industrial-Grade Liquid Tank Sealing: 524×524×93 mm HEPA filter with silicone gel gaskets achieves 0.005% bypass (IEST-RP-CC007 validated).
  • Sanitization-Ready Build: 304 stainless steel diffuser withstands 10,000ppm chlorine fogging (ASTM B117) and pH 1-14 chemical exposure.
  • Rapid Tool-Free Assembly: Telescopic spring pins + self-aligning ØB holes enable <90-second installation without screws, critical for ISO 5 cleanroom protocols.
  • High-Capacity Airflow Design: 584×584×480 mm body supports 1200-1500 CMH airflow for facilities up to 15m ceiling height.
  • Hygienic Compliance: Baking varnish surface meets USP <800> for hazardous Pharmaceutical industry handling and 3-A Sanitary Standards for dairy plants.
Application Scenarios
  • Vaccine mega-plants: Sterile air supply in lyophilization suites with -80°C freeze-dryers.
  • Chemical processing: Acid fume control in titanium dioxide production chambers.
  • Seafood processing: Saltwater corrosion resistance in shrimp freezing tunnels.
  • Semiconductor gas cabinets: Toxic gas dispersion in SiC wafer epitaxy rooms.
  • Bioreactor farms: Contamination-free airflow for mammalian cell culture expansion.
Product Images
584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply 584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply 584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply 584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply 584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply 584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply 584×584×480mm Zero-Leakage IP55-Rated Liquid Trough HEPA Vent for Semiconductor Cleanroom Air Supply
Frequently Asked Questions
Does the 584×584×480 model maintain airtightness in 24/7 humidity-controlled environments?
Yes, the dual-channel silicone sealant withstands 95% RH fluctuations without degradation (tested per ASTM E741).
How does the trough system handle daily hydrogen peroxide vapor decontamination?
Chemically inert fluoropolymer seals resist VHP exposure up to 1000ppm, validated in GMP-grade bio-decon cycles.
Can this vent integrate with existing FFU systems in semiconductor cleanrooms?
Pre-installed T-slot rails enable seamless retrofitting to Class 1-100 cleanroom grids within 15 minutes.
