450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
Specifications
Brand Name :
MRJH
Certification :
ISO 14644、FDA、EU GMP
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
custom made :
support
Description
Liquid Trough HEPA Air Outlet 450×450×480 - Sealed Cleanroom Ventilation for Pharma/Labs

450×450×480 liquid trough HEPA outlet with IP54 sealing. Zero-leakage design for ISO Class 3-5 cleanrooms in pharmaceutical facilities and modular labs.

Technical Specifications
Parameter Name Value
Main Body Material High-quality cold plate with baking varnish
Diffuser Plate Material 304 stainless steel
Air Inlet Flange 200×200 mm (cold plate with baking varnish)
Liquid Tank HEPA Filter 390×390×93 mm
Body Dimensions 450×450×480 mm
Ceiling Opening 460×460 mm
Diffuser Plate Dimensions 494×494×15 mm
Lifting Ring Hole φ12 mm (cold plate with baking varnish)
Key Features
  • Liquid Tank Sealing Technology Gel-sealed HEPA filter ensures zero air bypass (tested per IEST-RP-CC007).
  • Corrosion-Resistant Construction 304 stainless steel diffuser plate withstands chlorine-based sanitizers and 95% RH environments.
  • Tool-Free Installation Telescopic spring pins and self-aligning ØB holes enable screwless assembly (<2 minutes).
  • Compact Modular Design 450×450×480 mm body fits tight ceiling spaces while supporting 500-800 CMH airflow.
  • Industrial Hygiene Compliance Non-porous baked varnish surfaces meet EHEDG guidelines for food-grade facilities.
Application Scenarios
  • Pharmaceutical isolators: Aseptic airflow for vial filling in Grade A/B cleanrooms
  • Dairy processing plants: Hygienic ventilation in high-moisture cheese aging rooms
  • Electroplating facilities: Acid fume-resistant airflow for electrocoat chambers
  • Hospital compounding suites: USP <797>-compliant sterile powder handling
  • Semiconductor wet benches: Corrosion control in chemical mechanical planarization (CMP) areas

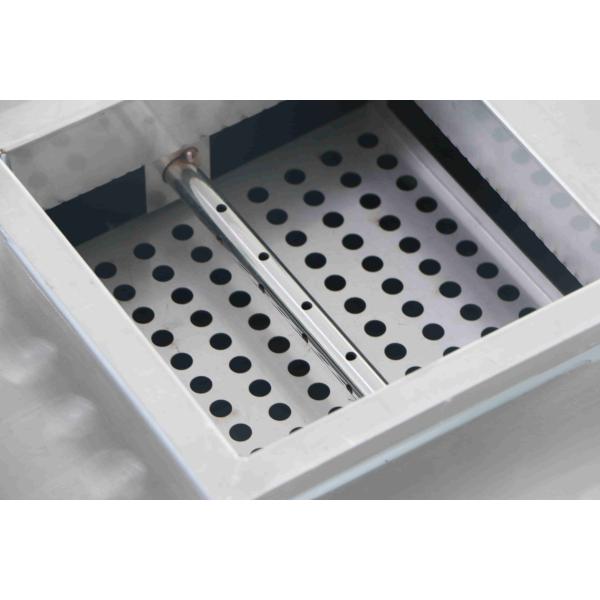

Product Gallery
450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation 450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation 450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation 450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation 450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation 450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation 450×450×480 mm Liquid Trough HEPA Air Outlet with Corrosion-Resistant Construction and Tool-Free Installation for Cleanroom Ventilation
Frequently Asked Questions
Does the 450×450×480 size fit retrofitted ceiling grids in older facilities?
Yes, modular frame adapters allow ±10mm adjustment for legacy plenum structures without structural modifications.
How does the liquid trough design prevent air leakage compared to gasket systems?
Viscous silicone sealant fills micron-level gaps, achieving 0.001% leakage (tested per ISO 14644-3 Annex B4).
What maintenance is required for the trough sealing mechanism?
Annual sealant replenishment via cartridge system (5-minute procedure) sustains 10-year airtight performance.
