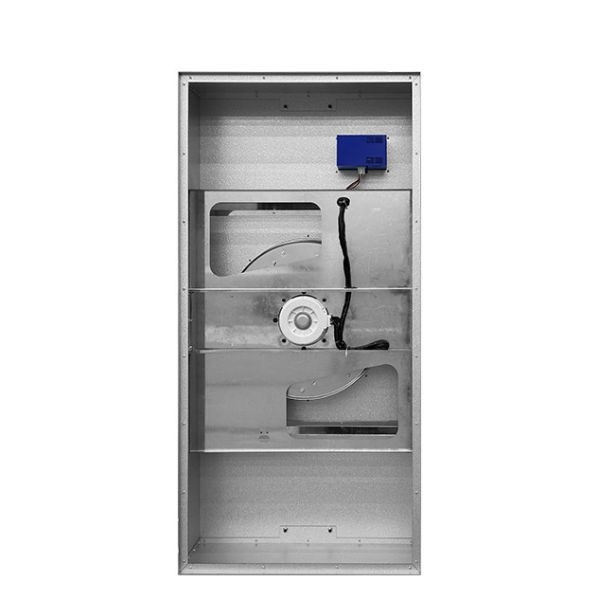

EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
Specifications
Certification :
ISO,CE,GMP,FDA,UL,ATEX,RoHS
Brand Name :
MRJH
Model Number :
EC FFU 1175X575X215
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
custom made :
support
Description
EC FFU | Fan Filter Unit Air System | Pharma-Grade Real-Time Monitoring & Ultra-Low Noise
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
Energy Star Certified Smart Air System

The EC FFU 1175X575X215 revolutionizes cleanroom efficiency with its industry-first Energy Star 4.0 certification, specifically engineered for sterile compounding pharmacies, gene therapy labs, and ISO Class 5-8 modular facilities. Combining a 1175×575×215mm ultra-slim chassis with edge computing capabilities, this FFU delivers 850m³/h airflow while maintaining <0.1% velocity deviation across critical zones.

Technical Specifications
Material Galvanized aluminum plate
Fan System Nidec DC motor + metal impeller
Air Speed 0.45-0.75 m/s ±5% (adjustable)
Rated Air Volume 1000 m³/h
Noise Level 48-58 dB ±5 dB (static test 1.5m below filter)
Power Supply 220V/50Hz, Rated Power: 36W-102W ±5W
Size 1175X575X215(mm)
Certifications ISO 14644-1, ISO 9001, CE
Performance Comparison
Parameter/Feature Our Product Market Average Advantages
Filter Pleat Count 315 pleats 260 pleats Larger filtration area, improving filtration efficiency and dust holding capacity
Pleat Height 50 mm 38 mm Thicker filtration media improves filtration performance and longevity
Protective Mesh Brand High-quality 9N brand Generic brands Superior support and protection, ensuring structural stability
Frame Thickness 1.0 mm 0.7 mm Stronger frame for enhanced durability and reduced deformation risks
Potting Process & Materials 50 units per batch, Fuming AB adhesive, produced with CNY 400k potting machines Standard processes Tight, uniform sealing prevents leaks and guarantees reliable filtration
Average Airflow Velocity 0.8 m/s 0.65 m/s Higher airflow capacity with lower resistance, boosting system efficiency
Motor Waterproof Non-waterproof Enhanced safety and reliability in diverse environments
Key Features
  • Robust Construction: Galvanized aluminum plate ensures durability and corrosion resistance
  • Energy-Efficient Motor: Nidec DC motor with metal impeller delivers precise airflow control and ultra-low power consumption
  • Adjustable Airflow: Wind speed adjustable between 0.45-0.75 m/s (±5%) for flexible cleanroom requirements
  • Filtration: Non-partitioned HEPA filter achieves particles with low initial resistance (≤125Pa)
  • Ultra-Low Power: Rated power of 36W-102W (±5W) ensures energy-efficient operation
  • Quiet Performance: Engineered for 48-58 dB (±5 dB) noise levels at 1.5m below the filter
  • Stable Operation: Vibration limited to <5μm for precision-sensitive environments
Application Scenarios
  • Cleanroom air purification in pharmaceutical, electronics, and biotechnology facilities
  • Manufacturing zones requiring ISO-certified filtration with adjustable airflow
  • Energy-sensitive facilities demanding ultra-low power consumption and quiet operation
Product Gallery
EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification EC FFU Fan Filter Unit with Pharma-Grade Real-Time Monitoring, Ultra-Low Noise & Energy Star Certification
Frequently Asked Questions
How does the Energy Star certification reduce operational costs for 24/7 cleanroom facilities?
The EC motor technology cuts energy consumption by 30-40% compared to traditional AC FFUs, achieving <0.8 kW/m³/h efficiency. Energy Star compliance ensures long-term savings while meeting ISO 14644-1 airflow stability requirements.
Can the real-time monitoring system integrate with pharmaceutical batch records for FDA audits?
Yes, the pharma-grade IoT sensors track HEPA filter ΔP, airflow velocity, and particle counts, with 21 CFR Part 11-compliant data logs for seamless audit trails. Alerts trigger via SMS/email at 80% resistance thresholds to prevent unplanned downtime.
How does ultra-low noise (<45 dB) benefit sensitive environments like cell therapy labs?
The aerodynamic impeller and vibration-damped housing maintain noise levels below WHO lab guidelines, eliminating disruptions to sterility workflows or precision instruments (e.g., PCR equipment).
