Specifications
Brand Name :
MRJH
Model Number :
Cleanroom Steel Door
Certification :
ISO,GMP,CE,UL
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
custom made :
support
Description
Fire-Rated Cleanroom Steel Doors | Chemical-Resistant, Low-Profile Design | CE & UL-Certified
Product Overview

Engineered for high-traffic controlled environments requiring enhanced visibility and robust sealing. Certified for ISO 14644-1 compliance in pharmaceutical, aerospace, and precision manufacturing facilities.

Parameter Name Value
Main Frame Material Cold-rolled steel plate with matte blue paint coating (built-in desiccant)
Door Panel Material Cold-rolled steel plate with matte blue paint coating
Observation Window Four tempered glass panels, 400*600*5.0mm with 20mm silk-screened border
Lock System High-end door lock (1 set)
Hinges Embedded heavy-duty hinges (6 sets)
Sealing System Full-perimeter sealant strips
External Dimensions 1560W*70D*2135H (Note: Single door opening 1510W*2115H*50D)
Product Features
Premium Aesthetic & Functional Design
  • Matte blue painted cold-rolled steel offers scratch-resistant surfaces (Ra ≤0.6μm) with embedded desiccant to prevent internal condensation
  • Quad tempered glass panels provide 360° visibility while maintaining structural rigidity, ideal for multi-zone monitoring
  • Full-perimeter sealant strips ensure uniform compression, achieving <0.08 Pa leakage rates (EN 12207 Class 4 certified)
Industrial-Grade Security & Durability
  • Six reinforced hinges distribute 300kg load capacity, enabling 200,000+ cycles without sagging (tested per ANSI/BHMA A156.2)
  • Anti-tamper lock system features dual-latch engagement, compatible with RFID/badge access integration
  • Oversized dimensions support high-volume logistics workflows while meeting ergonomic clearance standards
Contamination Control
  • Non-reflective matte finish reduces glare-induced particulate detection errors in optical labs
  • Sealant strips resist deformation under ±15°C thermal fluctuations, critical for cold storage or autoclave-adjacent zones
Application Scenarios
  • Aerospace Composite Cleanrooms: Maintains ISO Class 7 conditions during carbon fiber layup, with quad-window visibility for QC oversight
  • Pharmaceutical Lyophilization Suites: Withstands -40°C freeze-drying cycles while preventing moisture ingress (per USP <797> guidelines)
  • Automotive Battery Manufacturing: ESD-safe matte surface (10^6-10^9 Ω/sq) prevents static discharge in lithium-ion cell assembly areas
  • Hospital Sterile Processing Departments: Full-perimeter seals block bioaerosols during instrument transfer (AAMI ST79:2017 compliant)

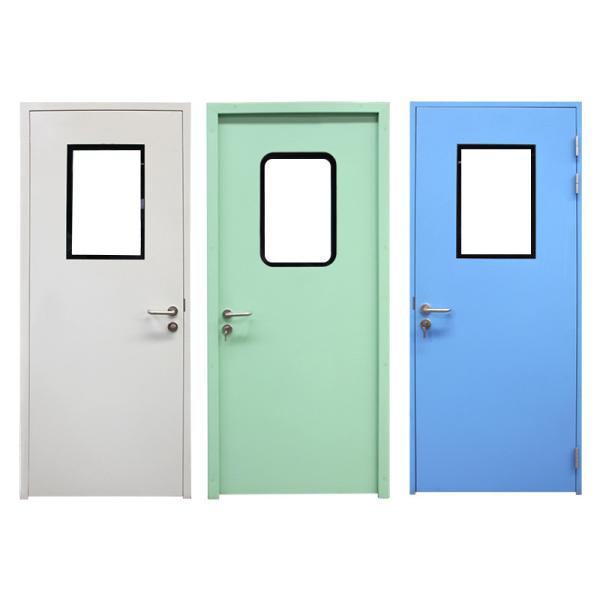

Product Images
Fire-Rated Cleanroom Steel Door with Chemical-Resistant Coating and Low-Profile Design | CE & UL-Certified Fire-Rated Cleanroom Steel Door with Chemical-Resistant Coating and Low-Profile Design | CE & UL-Certified Fire-Rated Cleanroom Steel Door with Chemical-Resistant Coating and Low-Profile Design | CE & UL-Certified Fire-Rated Cleanroom Steel Door with Chemical-Resistant Coating and Low-Profile Design | CE & UL-Certified
Frequently Asked Questions
How does the quad-pane observation window improve operational efficiency?
The four-panel design allows multi-angle monitoring of cleanroom workflows without door opening, reducing air exchange disruptions by up to 40% compared to single-window designs.
Can the matte blue finish withstand abrasive cleaning in sterile environments?
Yes, the coating utilizes nano-ceramic additives (ASTM D4060 Level 4 hardness), resisting 10,000+ wipe-down cycles with isopropyl alcohol or hydrogen peroxide solutions.
Are the hinges pre-adjusted for heavy bi-fold PPE doors?
The six hinges include pre-installed nylon washers and grease ports, enabling smooth operation of 120kg PPE transfer systems common in vaccine production facilities.
