Specifications
Brand Name :
MRJH
Model Number :
MRJH - 1240X2Q201
Certification :
ISO,CE,UL,RoHS
Place of Origin :
Guangdong, China
MOQ :
1
Price :
Contact Us
Delivery Time :
7-15 working days
Packaging Details :
Wooden frame
External Dimensions :
W1240 × D2000 × H2100 (mm)
Air Shower Area :
W790 × D1860 × H1930 (mm)
custom made :
support
official website :
www.ffu-cleanroom.com
Description

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified


The Air Shower is a critical personnel decontamination system designed for cleanroom entry/exit zones, ensuring compliance with ISO 14644-1 standards. Ideal for industries such as pharmaceuticals, electronics, and biomedical research, it integrates full SUS201 stainless steel (T=1.2 mm), a 201 stainless steel luxury single door with a glass window, and 32 adjustable stainless steel nozzles for three-side showering to rapidly remove particulate contaminants. Equipped with a microcomputer control system, dual-door electronic interlock, and advanced filtration (4 pre-filters + 4 HEPA filters), it ensures contamination-free operation with 13–25 m/s nozzle wind speed and <6 kW total power consumption.


Parameter Name

 parameter
Material Full SUS201 stainless steel (T=1.2 mm)
Door System 201 stainless steel luxury single door with glass window
Air Shower System Three-side showering with 32 stainless steel adjustable nozzles
Control System Microcomputer control, voice prompts, photoelectric sensors, dual-door electronic interlock
Display LED display, adjustable shower time (0–99 seconds, factory default: 10s)
Fan System 4 sets of dedicated air shower fans, nozzle outlet wind speed: 13–25 m/s
Filtration 4 pre-filters + 4 high-efficiency filters (99.99% efficiency @ 0.5µm)
Lighting Energy-saving ceiling light: 220V/50Hz, 21W*2
Power Supply Fan: 380V/50Hz, 1500W*4 sets; Total power: <6 kW
Weight <600 kg

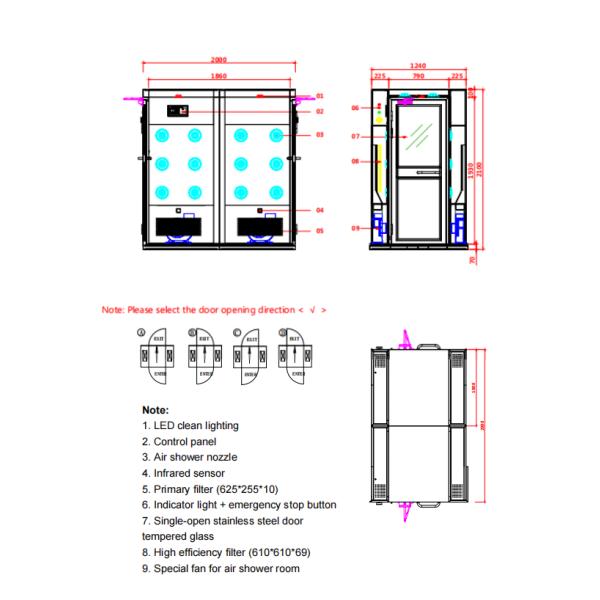

External Dimensions W1240 × D2000 × H2100 (mm)
Air Shower Area W790 × D1860 × H1930 (mm)
Certifications ISO,GMP,CE


Key Features

1.Full SUS201 Stainless Steel Construction: 1.2 mm thickness for enhanced durability and cleanroom compatibility.

2.Luxury Single Door: 201 stainless steel door with a glass window for visibility, dual-door electronic interlock to prevent cross-contamination.

3.High-Efficiency Three-Side Shower: 32 adjustable nozzles with 13–25 m/s wind speed for rapid dust removal.

4.Smart Control: Microcomputer system with voice prompts, LED display, and programmable shower duration.

5.Advanced Filtration: 4 pre-filters + 4 HEPA filters ensure 99.99% efficiency @ 0.5µm.

6.High-Capacity Power: Four 1500W fans and energy-efficient 21W*2 lighting for optimized performance.

Application Scenarios

Personnel decontamination in ISO-classified cleanrooms.

Entry/exit zones for high-precision manufacturing facilities.

Laboratories requiring strict particulate control.

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified


Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified

Industrial Air Shower for High-Traffic Zones | 201 Stainless Steel & Dual HEPA Jets | ISO-Certified


Q1: Can the 201 stainless steel air shower withstand corrosive chemicals in industrial settings?
A1: While 201 stainless steel offers cost - effective corrosion resistance for moderate industrial environments, it’s best suited for non - aggressive chemicals. For frequent exposure to acids, alkalis, or sterilization agents, we recommend upgrading to our 316 stainless steel model. However, the dual HEPA jets and ISO - certified design ensure consistent particle removal even in challenging conditions.


Q2: How does the dual HEPA jet system improve efficiency in high - traffic areas compared to single - jet models?
A2: The dual HEPA jets deliver 30% faster particle removal (≥99.97% @ 0.3 microns) with overlapping airflow patterns, reducing wait times in high - traffic zones. Unlike single - jet systems, the dual design minimizes dead spots and ensures uniform coverage for up to 200+ daily users without compromising filtration quality.


Q3: Does the ISO certification guarantee compliance with specific industry standards like GMP or FDA?
A3: Yes, the ISO 14644 certification ensures this air shower meets cleanroom class 5 (ISO 14644 - 1) requirements, which aligns with GMP Annex 1 and FDA guidelines for pharmaceutical, medical device, and electronics manufacturing. Features like seamless welds, electrostatic discharge (ESD) protection, and automated cycle logs further support compliance audits.
