Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector
Specifications
Supply Ability :
3KK Pcs
Housing :
PBT UL94V-0 / PA6T
Gender :
Male
Contact Plating :
Gold Flash Selective
Model Number :
pin header
Price :
Negotiable Price
Packaging Details :
Inner Package:in Reel; Outer Package: Reel In Carton
Payment Terms :
L/C,T/T,Payyal
Pin :
06~80 Pins
Certification :
CE,SGS,ROHS,ISO9001
MOQ :
10pcs
Delivery Time :
5-7 Days
Sample :
free
Brand Name :
XTKCONN
Package :
Tape Wrapping
Description

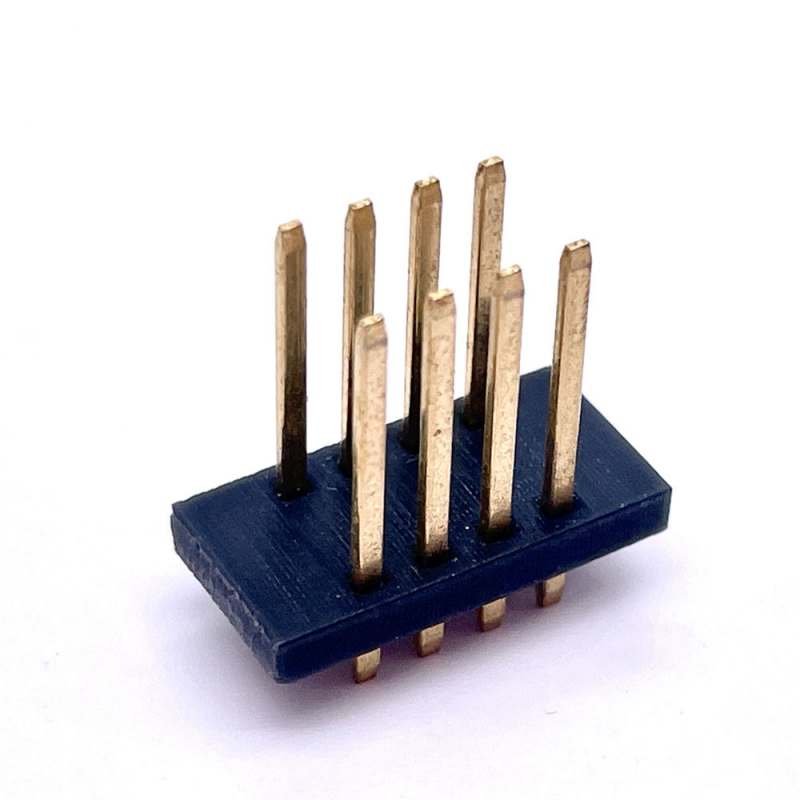

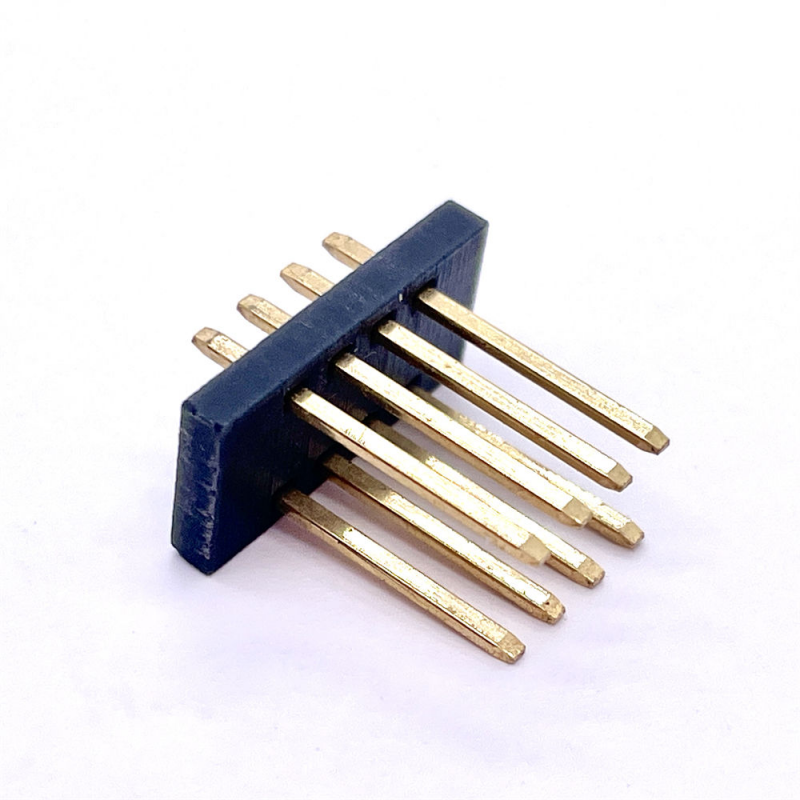

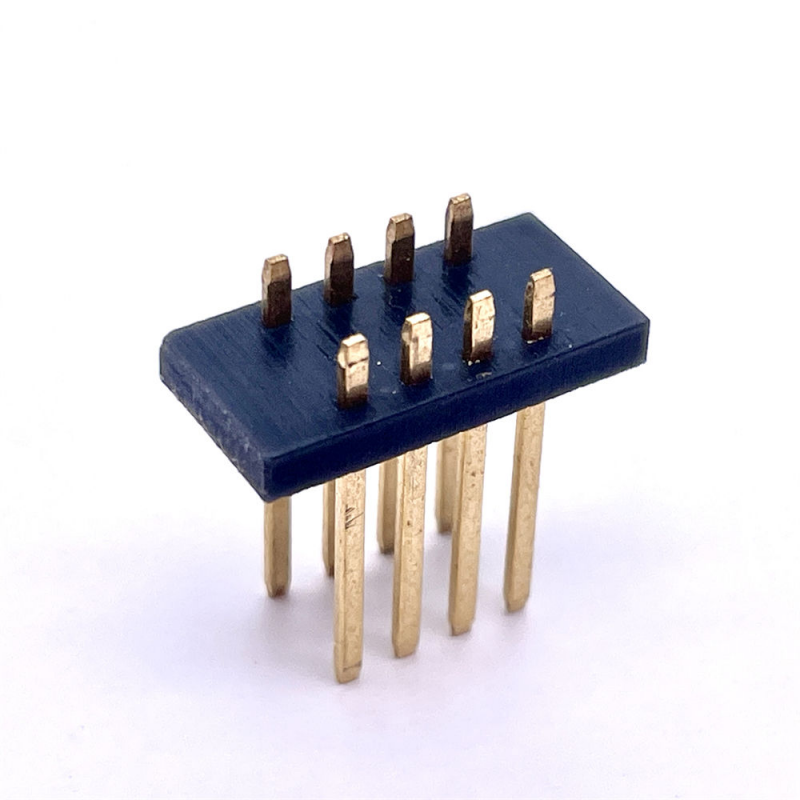

Custom 2.5 x 5.2 mm Pitch Male/Female Headers for PCB Straight 8-pin Strip Male Pin Header Connector


Highlight

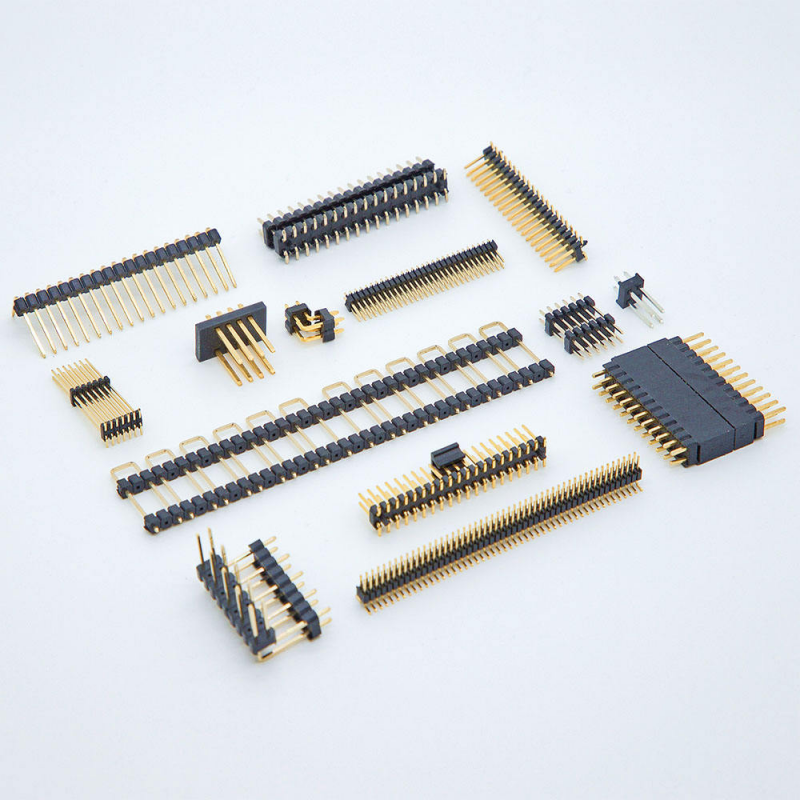

Multi‑form customization: Straight / Right‑angle / SMT mounting, custom insulator plastic height available
SMT‑compatible pickup cap support for automatic pick‑and‑place assembly
Tape & Reel packaging supported, ready for SMT production lines
Male & female matched set, 8‑pin strip, pitch 2.5×5.2 mm for compact PCB interconnection
Custom pin count, plating, keying & mechanical dimensions upon OEM request



Product Description

Category Parameter
Electrical Performance
Pitch 2.5 mm ×5.2 mm
Pin Count 8‑pin strip (custom pin count available)
Current Rating 3A per contact
Voltage Rating 250V AC/DC
Contact Resistance ≤10 mΩ
Insulation Resistance ≥500 MΩ
Withstanding Voltage 1000V AC / 1 min, no breakdown
Mechanical Performance
Mating Cycles Minimum 500 times
Mounting Style Straight through‑hole / Right‑angle / SMT surface mount
Pick‑and‑place Support SMT suction cap for auto‑mounting
Material & Plating
Contact Material Phosphor bronze / Brass
Plating Nickel base; Matte tin / Bright tin / Selective gold plating optional
Insulator Housing UL94 V‑0 high‑temperature plastic
Environmental
Operating Temperature ‑40 ℃ ~ +105 ℃
Compliance RoHS‑2 compliant
Soldering Guideline
Through‑hole soldering Wave soldering: 260 ℃ max, 5 seconds dwell time
SMT soldering Reflow profile conforms to IPC‑J‑STD‑004 standard


Cross‑Reference & Alternative Replacement

This custom 2.5×5.2 mm pitch header is a mechanical‑matching alternative for selected Molex, TE, JAE series 2.5 mm pitch wafer/header families.

Engineering Tip:

  1. Not a 100‑pin‑to‑pin drop‑in replacement without drawing verification.
  2. Confirm mating dimension, stack height, pin layout, and plating before substituting original branded parts.
  3. We supply dimension drawings & 3D file for your PCB footprint validation.

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector


Product Feature

  1. Matched male‑female 8‑pin strip design, stable board‑to‑board / board‑to‑cable interconnection
  2. Flexible mechanical options: straight/right-angle / SMT, custom insulator height for different stacking‑height requirements
  3. SMT suction‑cap compatible for high‑volume automatic assembly
  4. High‑conductivity phosphor‑bronze contacts, low contact resistance for signal & low‑power transmission
  5. UL94 V‑0 flame‑retardant housing, reliable for industrial & consumer‑grade equipment
  6. Support break‑to‑length, custom pin‑out, missing‑pin & polarization keying customization

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header Connector

Custom 2.5 × 5.2 mm Pitch Male Headers for PCB Straight 8-pin Strip Pin Header ConnectorProduct Advantage
