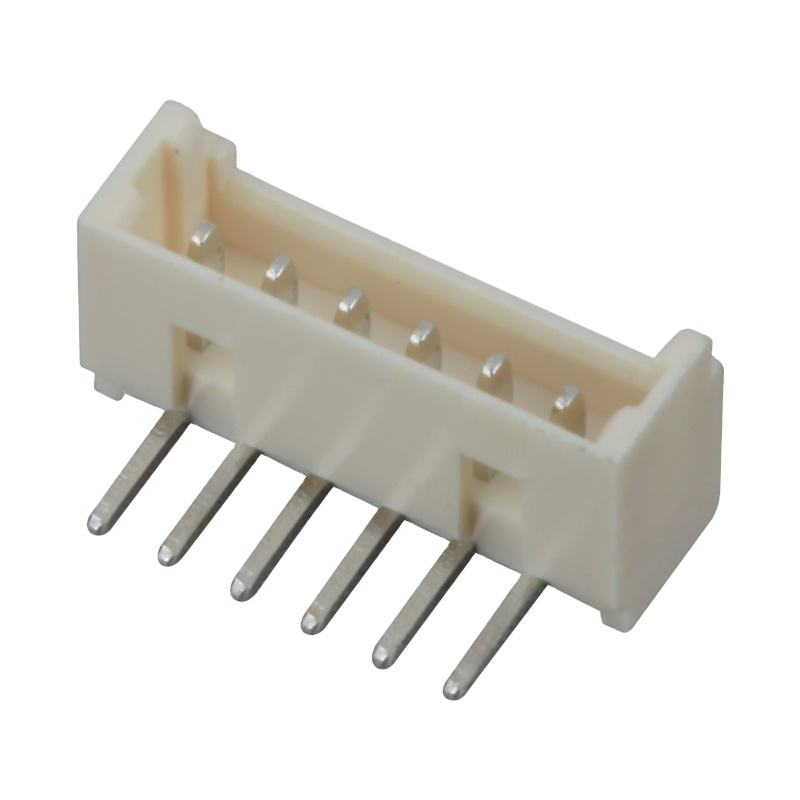

Molex Horizontal 1.25mm Pitch 2-16Pin DIP Single Row Wire-to-Board Connector

Product Description

Key Product Features

• 1.25mm compact pitch design for high-density PCB layouts
• Horizontal right-angle DIP mounting structure for space-saving PCB integration
• Single-row 2–16 pin configuration supporting flexible circuit requirements
• Wire-to-board connection design for cable-to-PCB applications
• Secure mating structure to reduce accidental disconnection risk
• Suitable for high-volume electronic manufacturing
• Compatible with compact industrial and consumer electronic designs

Applications

• PLC control systems
• Industrial sensors
• Control boards
• Factory automation equipment

Consumer Electronics

• Smart devices
• Home appliances
• Display modules
• Electronic controllers

Medical Equipment

• Monitoring devices
• Diagnostic equipment
• Portable medical electronics

Automotive Electronics

• Vehicle control modules
• Dashboard electronics
• Sensor systems
• Interior electronic modules

AI Hardware & Smart Devices

• AI edge devices
• Embedded computing systems
• Smart cameras
• Robotics controllers
• IoT gateways

Advantages

1. Space-Saving 1.25mm Pitch Design

For modern electronic products, PCB space is increasingly limited.

The 1.25mm pitch structure allows engineers to:

• Reduce connector footprint
• Increase PCB layout flexibility
• Support compact product design

2. Horizontal DIP Structure for PCB Layout Optimization

• Low-profile equipment design
• Side-entry cable connection
• Compact enclosure applications

3. Flexible Pin Configuration

• 2-pin power connection
• Multi-pin signal connection
• Sensor interface
• Control module connection

4. Designed for Manufacturing Efficiency

Wire-to-board connectors are widely used in volume production because they support:

• Standard PCB assembly processes
• Simplified cable connection
• Easy maintenance and replacement
