The JY-F1 Industrial Pesticide & Fertilizer Powder Packaging Machine is a heavy-duty, semi-automatic volumetric filling solution specifically engineered to withstand harsh, corrosive, and abrasive environments. Built entirely with premium stainless steel 304, this rugged powder loader provides excellent chemical resistance, making it the ideal choice for packing agricultural inputs, agrochemicals, and fine chemical powders.

Equipped with a sealed touch screen control system to prevent dust ingress and a high-precision stepper motor, the JY-F1 automates the measuring and filling process with exceptional weight consistency. It safely handles a wide filling range from 300g up to 9kg via straightforward electronic scale keyboard adjustments, optimizing packaging efficiency for chemical manufacturing plants worldwide.

• Anti-Corrosive Metallurgy: Constructed from high-grade SUS304 stainless steel, engineered specifically to resist chemical pitting and abrasion from raw fertilizers and chemical powders.
• Dust-Sealed Enclosure: Features a tightly sealed mechanical body and enclosed hopper to contain airborne chemical dust, protecting operators and factory environments.
• Smart Touch Screen Control: Integrated with a robust PLC interface that allows for stepless weight calibrations during active filling cycles without halting the line.
• Specific Gravity Feedback Loop: Outfitted with an automated density tracking system that self-adjusts auger rotations to correct for packing variations caused by loose or compact material batches.
• Vibration-Damped Cast Frame: Built using a heavy industrial casting process, ensuring the machine maintains absolute structural stability during high-speed, continuous workflows.

The JY-F1 chemical powder filler versatilely manages both free-flowing and sticky, non-free-flowing powders. It supports quantitative filling into flexible pouches, woven bags, rigid plastic bottles, and metal canisters for these major markets:

• Agricultural Chemicals: Soluble pesticide powders, chemical fertilizers, organic compost additives, wettable powders, soil conditioners.
• Industrial Chemical Processing: Powdered chemical additives, laundry detergents, dry pigments, dyestuffs, raw mineral powders.
• Food & Agriculture: Animal feed supplements, nutritional powders, starches, industrial flour mixes.

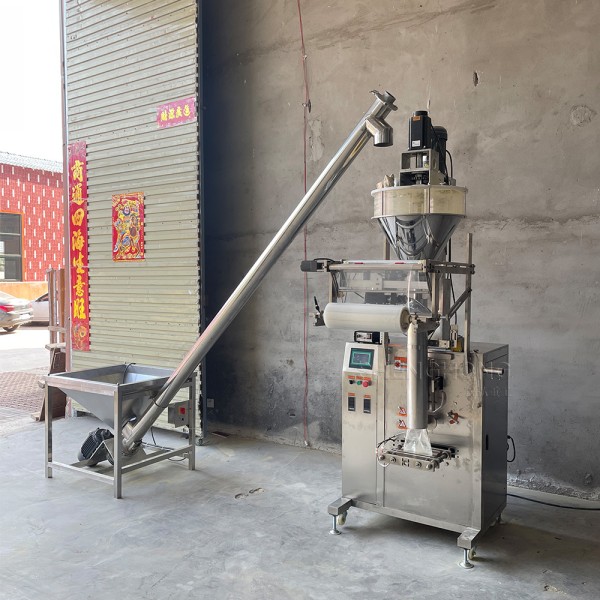

To build a completely automated, enclosed feeding workflow that minimizes dust exposure, the JY-F1 pairs perfectly with our Self-Feeding Screw Conveyor (Auger Hoist):

• Conveying Flow Rate: 0.5 - 3 Tons / hour
• Standard Lift Elevation: 1.6 meters (Custom heights engineered upon request)
• Hopper Silo Capacity: 100 - 300 kg (Equipped with an integrated vibrator to prevent material bridging or clinging)
