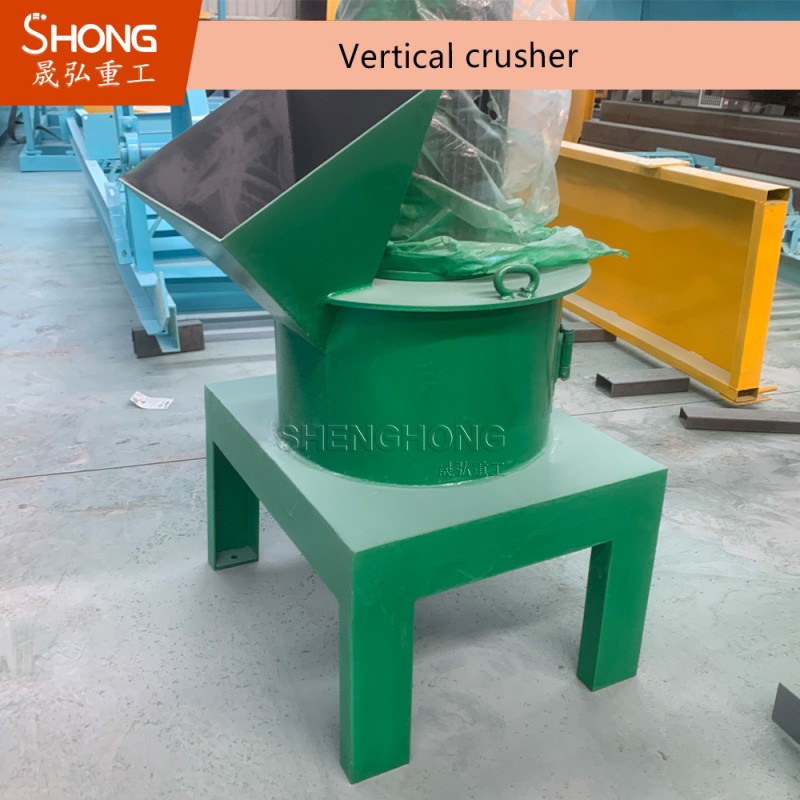

High Capacity 10-15 T/H Vertical Chain Crusher with 75kW Motor and Reinforced Rotor Assembly for Organic Fertilizer
High Capacity 10-15 T/H Vertical Chain Crusher with 75kW Motor and Reinforced Rotor Assembly for Organic Fertilizer
Specifications
Rotor Shaft :
80mm Reinforced Double Bearing
Motor Power :
75kW (100HP)
Capacity :
10-15 T/H
Certification :
ISO9001, CE
Delivery Time :
15-25 working days
Model Number :
SH-LP500
Brand Name :
SHENGHONG
Supply Ability :
25 Sets per Month
Price :
can be negotiated
Packaging Details :
Container or Plywood Box
Payment Terms :
T/T,L/C,Western Union
Voltage :
380V 50Hz 3-Phase
Model :
SH-LP500
MOQ :
1 Set
Place of Origin :
Henan, China
Description
High Capacity 10-15 Tons Per Hour Vertical Fertilizer Crusher Machine 75kW Motor Large Scale Production Line
This High Capacity Fertilizer Crusher Machine is engineered for large-scale fertilizer production facilities requiring throughput of 10-15 tons per hour. Powered by a 75kW industrial motor with reinforced chain assembly and oversized crushing chamber, it delivers reliable high-volume crushing for continuous 24/7 operation.
High Capacity Features
  • 75kW Industrial Motor: Heavy-duty 75kW (100HP) three-phase motor with star-delta starter and thermal overload protection, delivering consistent power for continuous high-volume crushing operations
  • Oversized Crushing Chamber: Extended chamber dimensions (1,200mm height x 800mm diameter) with optimized chain arrangement providing 50% more crushing contact area than standard models
  • Reinforced Rotor Assembly: Thickened main shaft (80mm diameter) with double bearing support at both upper and lower, designed for 20,000+ hours of continuous operation under full load
  • Heavy-Duty Feed Hopper: Large capacity feed hopper (1.5 cubic meters) with reinforced steel construction accepting direct loader bucket feeding for high-volume material intake
  • Multi-Row Chain Configuration: Six rows of high-manganese steel chains with 12 links per row, delivering crushing throughput of 10-15 T/H for fermented organic materials and 12-18 T/H for compound fertilizer return material
Technical Specifications
Parameter Value
Model SH-LP500
Capacity 10-15 T/H
Motor Power 75kW (100HP)
Voltage 380V 50Hz 3-Phase
Hopper Volume 1.5 Cubic Meters
Scale up your fertilizer crushing capacity with industrial-grade equipment. Contact us for throughput calculations based on your specific material properties and production targets.
