Dry Powder Double Roller NPK Fertilizer Production Line with Extrusion Granulation and Customizable Formulation
Dry Powder Double Roller NPK Fertilizer Production Line with Extrusion Granulation and Customizable Formulation
Specifications
Brand Name :
Shenghong
Model Number :
SDZ-I-2.0
Certification :
CE, ISO9001, BV
Place of Origin :
Henan, China
MOQ :
1 piece
Price :
can be negotiated
Payment Terms :
L/C,T/T,MoneyGram
Supply Ability :
50 piece per month
Delivery Time :
15 work days
Packaging Details :
Plywood packing, 20 GP, 40 GP, 40 HQ
Product name :
NPK fertilizer production line
Raw material :
Chemical powder
Color :
Customized
Moisture :
2%-5%
Machine type :
granulator
Warranty :
1 year
Description

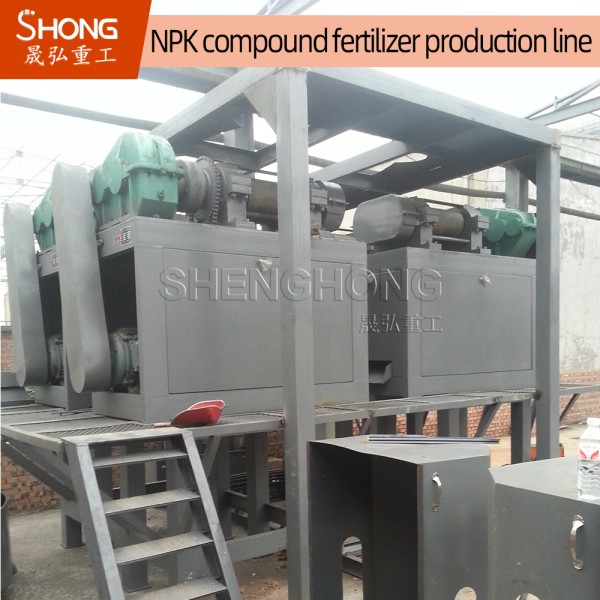

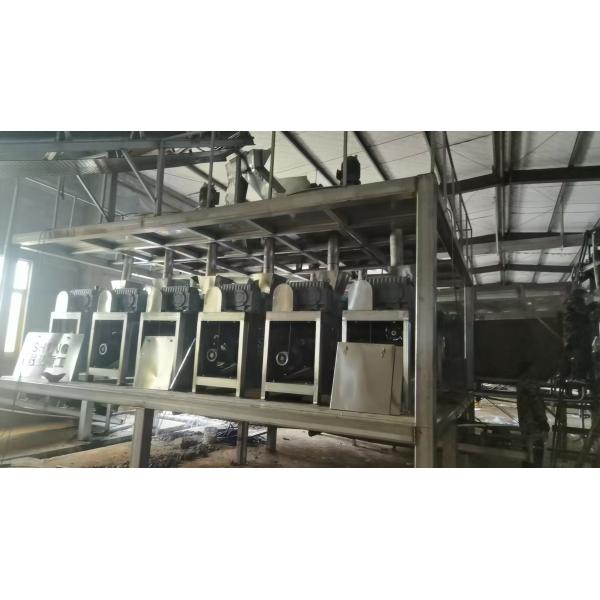

Dry Powder Double Roller NPK Fertilizer Production Line
Chemical Dry Powder Double Roller Extrusion Granulator NPK Fertilizer Production Line

NPK Fertilizer Production Line can produce various concentrations and multiple types of compound fertilizers including organic fertilizer, inorganic fertilizer, biological fertilizer, and magnetized fertilizer. It is particularly effective for producing rare-earth, potash, and ammonium bicarbonate series compound fertilizer granulation, filling domestic production gaps and ranking at the leading level in China.

Dry Powder Double Roller NPK Fertilizer Production Line with Extrusion Granulation and Customizable Formulation
Working Principle

Working flow: Input material (if blocked, use chain crusher) → Granulation → Screening (select appropriate sieve hole diameter) → Finished granules → Next process (optional equipment: screening machine for accurate granule size, coating machine for improved appearance, weighing and packaging for sales and transportation).

This roller granulation system operates on extrusion sliding model principles. The electric motor drives belt and pulley, transmitted to drive shaft via reducer, working in same direction through open gear and passive shaft. Material is added from feed hopper, extruded by rollers, demolded and pelleted, then passed through chains to crushing screen studio where finished pellets are screened and separated. Returned material mixes with new materials for continuous granulation, enabling mass production through continuous motor rotation and material entry.

Advantages
  • Less investment with good economic returns
  • Compact, scientific, reasonable design with advanced technologies
  • No waste discharge, stable operation, easy maintenance
  • Directly extrudes dry powder materials into granules using dry method granulation
Dry Powder Double Roller NPK Fertilizer Production Line with Extrusion Granulation and Customizable Formulation
Working Processes
1. Mixing Process
Mix required chemicals together such as NPK, NP, ANP, DAP, MAP, CAN, SSP or chemical ASO4 MOP SOP MAP CaCo3
2. Crushing Process
Lump materials are crushed after fermentation process. High moisture materials crusher machine is recommended for crushing semi-wet materials with high efficiency.
3. Granulating Process
Critical production process where nutrients can be added according to requirements. Spherical particles are processed, saving substantial energy. New type organic fertilizer granulator is most suitable.
4. Drying Process
After granulating, moisture is reduced to 10%-40% using rotary drum drying machine, suitable for organic fertilizer production.
5. Cooling Process
Particles are cooled after drying using rotary drum cooling machine to ensure quality.
6. Screening Process
Rotary drum fertilizer screening machine separates rejected materials from standard substances.
7. Packing Process
Fertilizer packaging machine automatically and efficiently packs processed fertilizers into bags.
Dry Powder Double Roller NPK Fertilizer Production Line with Extrusion Granulation and Customizable Formulation
