10m Length Metal Eye Link Conveyor Belt For Unloading Blanching
10m Length Metal Eye Link Conveyor Belt For Unloading Blanching
10m Length Metal Eye Link Conveyor Belt For Unloading Blanching
10m Length Metal Eye Link Conveyor Belt For Unloading Blanching
Specifications
Brand Name :
LJ
Model Number :
LJ-11
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per meter
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
Polybag + Carton + Pallet or customized
Products Name :
Conveyor Eye Link Belt
Keyword :
metal conveyor mesh chain
Material :
Stainless Steel
Finish :
Passivation
Color :
plain
Surface treatment :
HDG
Length :
50mm-200mm
Diameter :
M1.6-M100
Sample :
Provided
Standard :
DIN
Description

10m Length Metal Conveyor Eye Link Belt For Unloading Blanching

Conveyor Belt Description

Eye link mesh belt, also known as wire chain conveyor belt, eye-shaped flexible conveyor belt, wire loop conveyor belt. Eye link mesh belt is made of stainless steel or other alloys to meet the needs of different working environments. They are composed of eye chains and crossbars to form a flat, stable surface, which is very stable and durable. The reliability and durability of the conveyor belt are the main reasons for its success. Eye link mesh belt conveyor belt has many advantages, making it particularly suitable for applications in food, chemical, tunnel freezing, pharmaceutical, cleaning and loading industries. In addition, the eye link mesh belt can also add side guardrails and transverse baffles for controlling the height of conveyed items to enhance the reliability of the product.

Conveyor Belt Advantages

1. The conveying surface is flat, the mesh structure is open and easy to clean;

2. It can be customized, including side guards, chains and baffles;

3. It is resistant to high temperature, corrosion, wear and static electricity;

4. The smooth single-layer surface will not carry the products being conveyed;

5. The open area is large and has excellent air and liquid discharge efficiency;

6. It has strong load-bearing capacity and is sturdy and durable;

7. The surface is flat and stable, and it can run in a flexible and straight line.

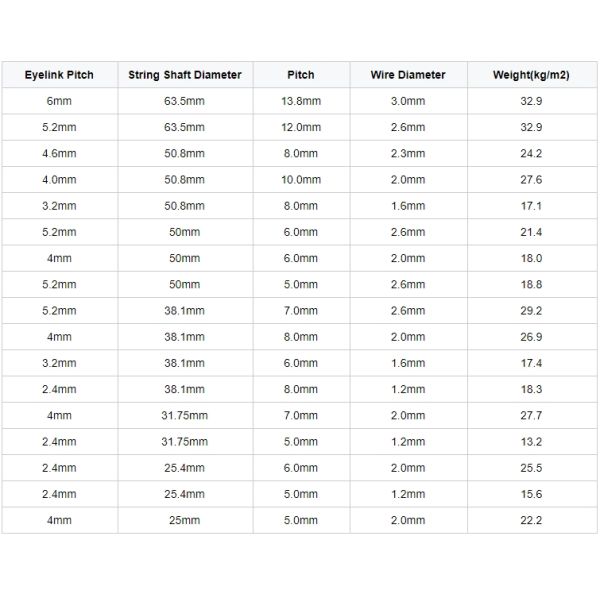

Conveyor Belt Specification

Material
SS304,316,310,310S, Galvanized wire,iron wire,or other materials.
Specifications
The all specification should be paid by customer
Color
As your request
Type
Spiral conveyor belt / balanced conveyor belt
10m Length Metal Eye Link Conveyor Belt For Unloading Blanching

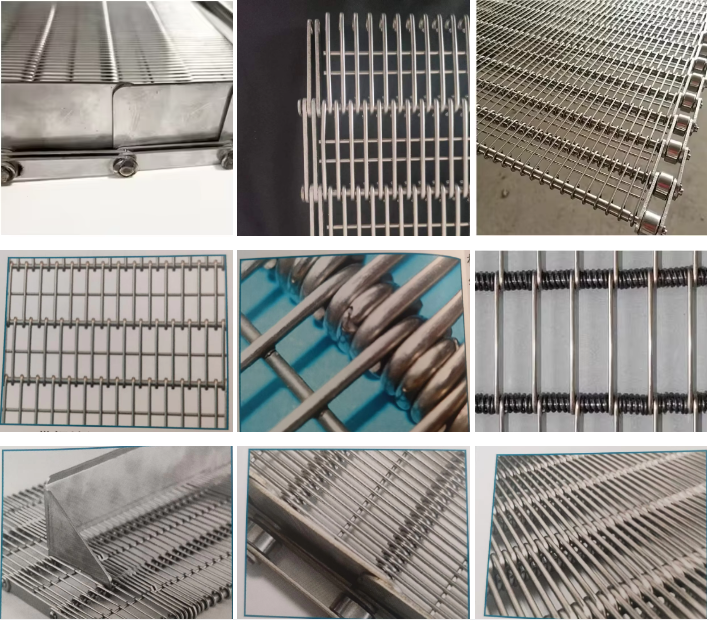

Conveyor Belt Edge type

To extend the life of balanced conveyor belt and ensure the high efficient working and conveying, we can supply different edge types for your choice. The main types of balanced conveyor belts are as follows:

10m Length Metal Eye Link Conveyor Belt For Unloading Blanching

Chain edge

10m Length Metal Eye Link Conveyor Belt For Unloading Blanching

Welded edge

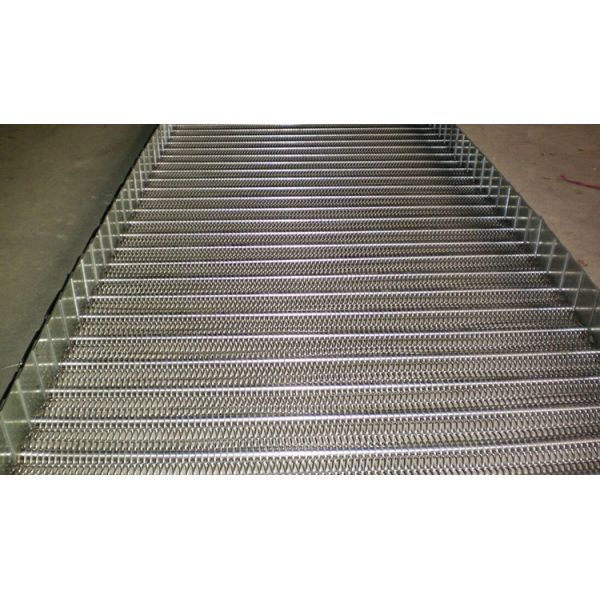

Conveyor Belt Side guard

Side guard can be added onto balanced conveyor belt to prevent products from falling down to the ground.

10m Length Metal Eye Link Conveyor Belt For Unloading Blanching

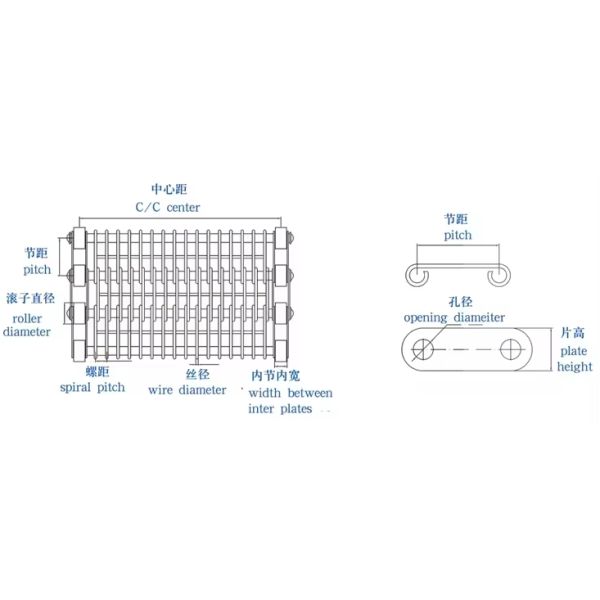

Conveyor Belt Drawings

Here are two drawings about the balanced conveyor belt,it can help you know the specifications of the belt.
Before our best offer,please tell me your detail specifications,It would be better if you could provide the drawings or photos.

10m Length Metal Eye Link Conveyor Belt For Unloading Blanching

Conveyor Belt Features

●Low maintenance cost

●Various materials for choice

●Smooth conveying surface
●High temperature resistance

●Corrosion and wear resistance
●Durable and long service life

●Quick and easy install and replacement

Conveyor Belt Packing

Wood has a good strength/mass ratio, which enables it to withstand shock, vibration, heavy pressure, etc. Different volume sizes can be selected according to different packaging wire mesh items to meet different packaging requirements.

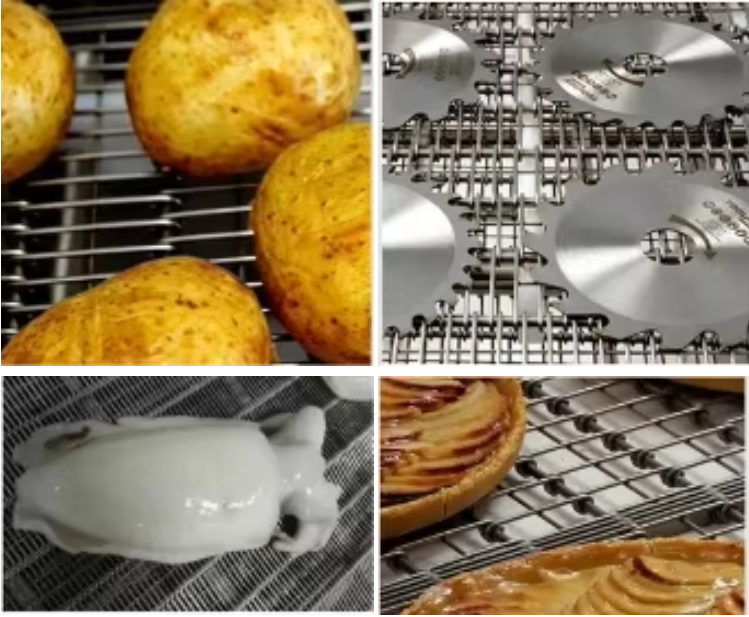

Conveyor Belt Applications

eye link mesh belt is mainly used in drying, freezing and cooling, casting, frying, baking, cooking, dehydration, sterilization, heating, drainage, stainless steel sandblasting, cleaning, filtering, baking, pasteurization, loading, unloading, blanching, etc.10m Length Metal Eye Link Conveyor Belt For Unloading Blanching

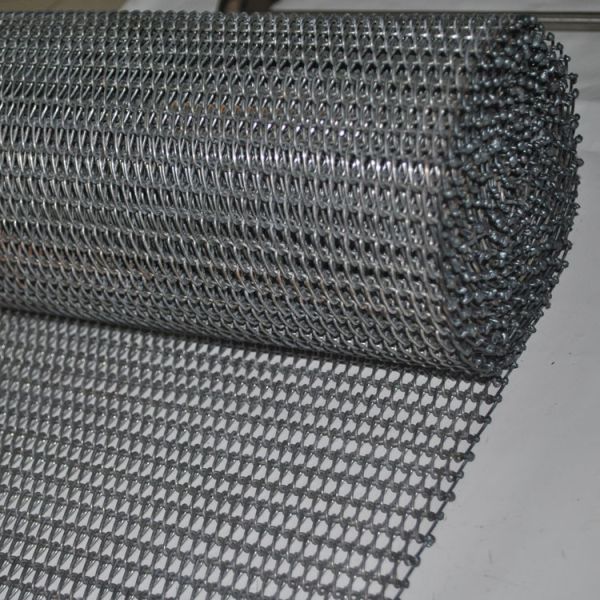

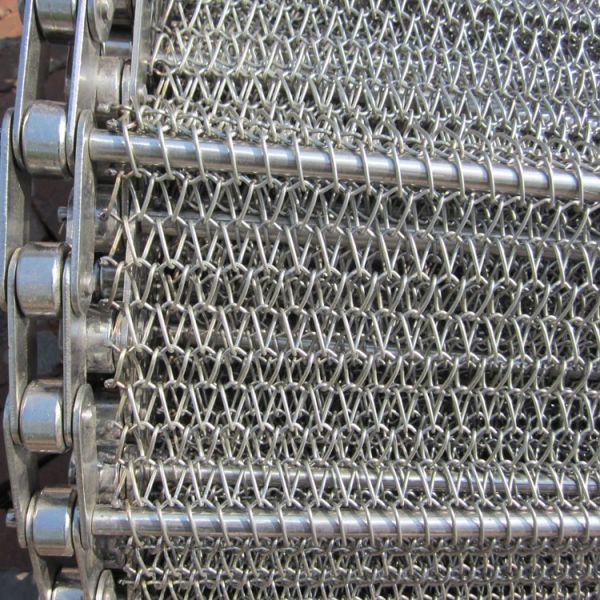

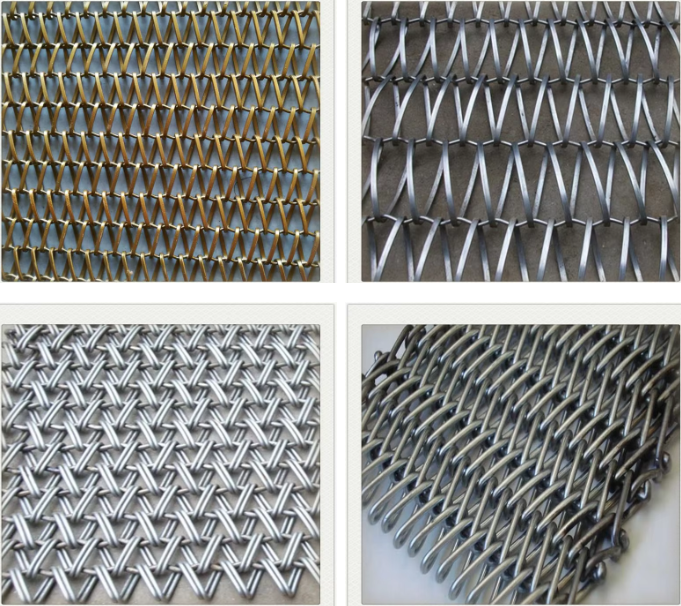

Conveyor Belt Detailed Image

10m Length Metal Eye Link Conveyor Belt For Unloading Blanching
10m Length Metal Eye Link Conveyor Belt For Unloading Blanching
