Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
Specifications
Brand Name :
LJ
Model Number :
LJ-12
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per meter
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
steel pallet
Production :
Hexagonal Woven Wire Mesh
Key Words :
stone filled wire mesh wall
Wire gauge :
2.0-4.0mm
Aperture :
80*100mm
Size :
2m*1m*1m
Wire diameter :
2.0mm-3.2mm
Width :
2' -2m
Mesh size :
60x80
Zinc coated :
60g-480g
Application :
slope protection
Hole shape :
Hexagonal
Surface treatment :
pvc coated
Color :
green
Material :
pvc wire
Sample :
Free
Feature :
Easily Assembled
Description

Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection

Gabion Mesh Description

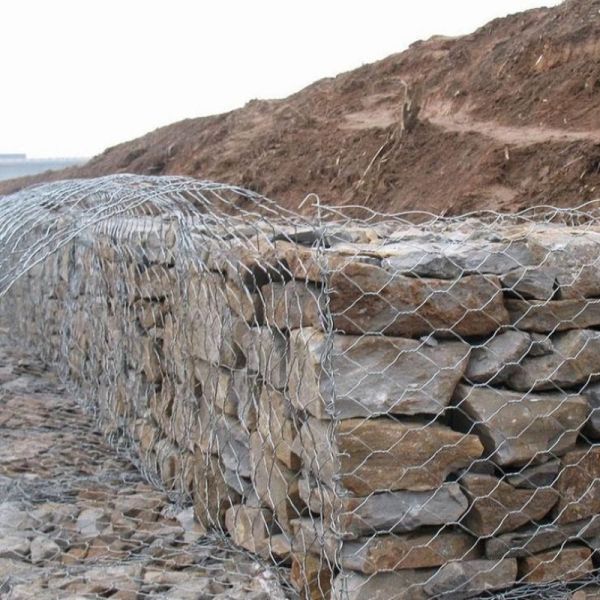

Gabion net, also known as gabion cage or honeycomb mesh, is a kind of engineering material widely used in river management. This grid-like structure is made of high-strength, corrosion-resistant low carbon steel wire that is braided, welded or bundled for high strength and durability. It can be used for the reinforcement and protection of river banks to prevent the erosion and erosion of river water.

Gabion are made of hot dipped galvanized steel wire /heavy galvanized coating steel wire/ PVC coated wires, the mesh shape is hexagonal style. The gabion retaining wall are used idely in slope protection,mountain rock holding,gabion for river bank protection.

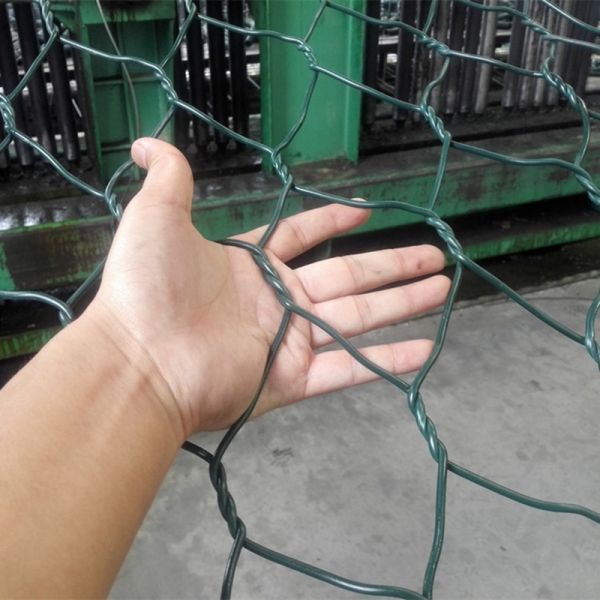

Gabion are made of triple twist hexagonal woven mesh fabric.

Gabion Mesh Specification

Specification Of Gabion Basket
Gabion size
(m)
Wire diameter
Mesh opening
Surface treatment
Mesh wire
(mm)
Selvage wire
(mm)
Tie wire
(mm)
2×1×0.5
2.0
2.2
2.4
2.7
3.0
2.4
2.7
3.0
3.4
3.9
1.8
2.0
2.2
60 x 80mm
80 x 100mm
80 x 120mm
100 x 120mm
120 x 150mm
Galvanized
Galfan
PVC coated
PE coated
2×1×1.0
3×1×0.5
3×1×1.0
4×1×1.0
6×1×1.0
2×1×0.3(Mattress)
3×1×0.3(Mattress)
All sizes can customized according to your request

Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection

Gabion Mesh Advabtages

Pvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection

Gabion Mesh Application

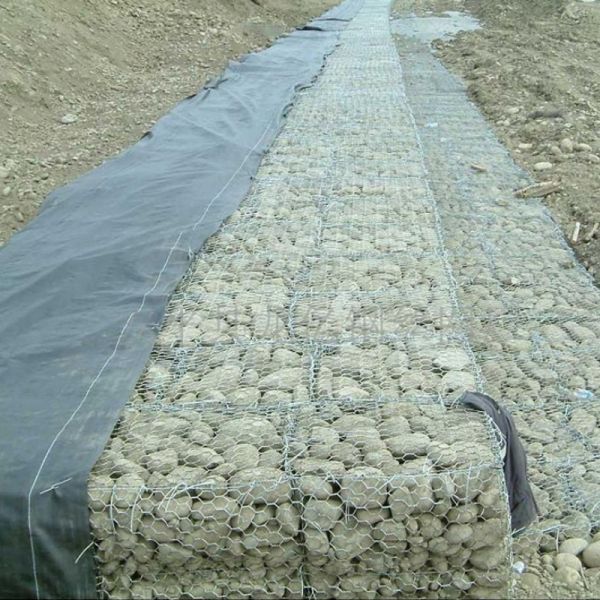

Gabion basket can be used for slope support, foundation pit support, shotcrete on the surface of mountains and stones, slope vegetation (greening), railway and highway isolation fences, and can also be made into cage net pads to prevent scouring and protect rivers, dams and seawalls. Gabion net is used to intercept reservoirs and rivers.

1.Retaining walls and soil reinforcement;

2.Coastal protection, marine structure and pipeline protection;
3.Hydraulic engineering;
4.Landscape and architecture; so on

Pvc Coated Hexagonal Woven Wire Mesh For Rockfall ProtectionPvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection

Gabion Mesh Package

1.With plastic weaving bags outside

2.With wooden pallet cloth
3.Less transport freight. It can be folded together for transport
and further installation.
Pvc Coated Hexagonal Woven Wire Mesh For Rockfall ProtectionPvc Coated Hexagonal Woven Wire Mesh For Rockfall Protection
