Stainless Steel Metal 316L Structured Packing Corrugated Plate
Stainless Steel Metal 316L Structured Packing Corrugated Plate
Stainless Steel Metal 316L Structured Packing Corrugated Plate
Stainless Steel Metal 316L Structured Packing Corrugated Plate
Specifications
Brand Name :
LJ
Model Number :
LJ-15
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per piece
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
Wooden cases,Wooden Pallet,steel pallet
Production :
Structured Packing
Key Words :
orifice plate corrugated metal packing
Shock Absorption :
High shock absorption
Water Resistance :
Waterproof
Usage :
Protective packaging
Customizable :
Can be customized according to specific needs
Size :
Various sizes available
Eco-Friendly :
Made from recyclable materials
Durability :
Durable
Shape :
Rectangular
Description

Stainless Steel Metal 316L Structured Packing Corrugated Plate

Structured Packing Description

The main feature of the stainless steel mesh corrugated structured packing is to directly punch and stretch the stainless steel metal plate into a smaller-sized diamond-shaped mesh plate, then punch it into a corrugated sheet, and then assemble it into a packing tray. It combines the performance advantages of metal wire mesh corrugated packing and metal plate corrugated packing, and is a new type of packing with higher efficiency and lower price. Due to its large specific surface area, it is more efficient. The regular diamond-shaped NetEase is covered by a liquid film, and the uneven surface enhances the turbulence, mixing and surface renewal of the liquid film.

Structured Packing Advantage

(1) High capacity. New tower design may reduce diameter, while renovate old towers may increase capacity significantly.
(2) High separation efficiency. Since it has much larger specific surface area compared to random packing.
(3) Low pressure drop, which leads to reduce energy consumption largely.
(4) Large flexibility, and scale effect is not obvious.
(5) Suitable for all tower diameters.
(6) Strong resistance to corrosion of acid and alkali,especially to H2S, naphthenic acid and Cl- .

Structured Packing Specification
Model
Void volume
Piece thick
Bulk Density
Waved height
Waved distance
Gear-shape angle
F-factor
Theoretical hetp
(%)
(mm)
(kg/m3)
(mm)
(mm)
(φ)
(φ)
(piece/m)
450Y
76
1 +/-0.2
600
6
11
80
1.5-2
4-5
350Y
80
1.2+/-0.2
580
9
15
80
2
3.5-4
250Y
82
1.4+/-0.2
530
13
22
80
2.5
2-3
160Y
84
2.2+/-0.2
500
17
30
80
2.8
1.5-2
125Y
85
2.5+/-0.5
480
23
42
80
3
1-1.5
100Y
87.5
2.5+/-0.5
460
30
50
80
3.5
1

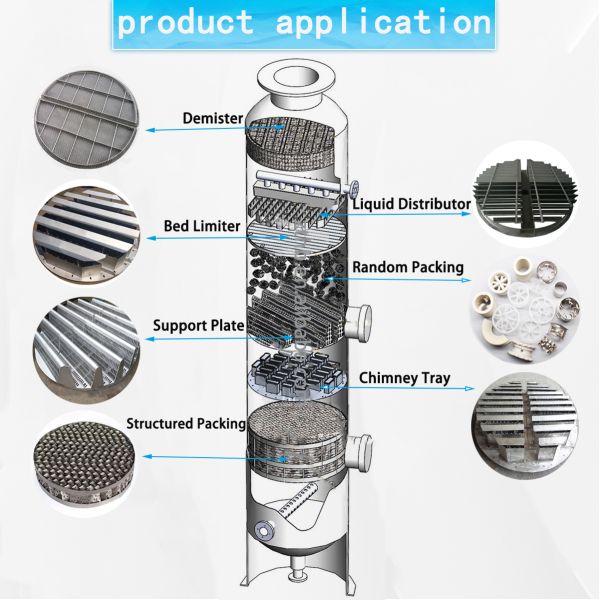

Structured Packing Application

(1) Rectifying organic halide.

(2) Rectifying and absorbing some corrosive mixtures, which are definitely regulated
in pressure drop and theoretic plate number.

(3) Applied in some towers that contain a large quantity of natural media used to
absorb nitric acid and concentrated sulfuric acid, as well as for purifying theair in chemical plants.

(4) Operating in vacuum conditions at a bottom absolute pressure of 100pa.

(5) Used in heat exchanger and demisting, or as a catalyst carrier

Stainless Steel Metal 316L Structured Packing Corrugated PlateStainless Steel Metal 316L Structured Packing Corrugated Plate

Structured Packing Package

1.wrapped with plastic film

2.With wooden cases or wooden pallet
Stainless Steel Metal 316L Structured Packing Corrugated Plate
Stainless Steel Metal 316L Structured Packing Corrugated Plate
