3D V-Fold Security Fence Panel 4mm Wire Hot-dip Galvanized Powder-Coated

Product Summary:

The 3D security fence panel features one to multiple V-fold ribs formed from a welded wire mesh to significantly boost stiffness and impact resistance without substantial weight increase. Typical panel width is approx. 2500–2520 mm. Mesh options include 50×100, 50×150 and 50×200 mm with standard 4.0 mm wire (3.5–6.0 mm optional). The modular system supports square, rectangular or round posts and multiple foundation methods (in-ground concrete or baseplate anchor), suitable for residential, commercial, industrial and infrastructure perimeter protection.

Manufactured via automatic welding, V-forming, pickling, hot-dip galvanizing (or pre-galvanizing), and powder coating / PVC coating with high-temperature curing. Quality control includes weld strength sampling, coating thickness and adhesion tests, dimensional inspection and visual checks. Packaging is palletized with wooden braces and anti-rust wrapping; staged delivery is available for large projects. Factory inspection certificates and third-party testing can be provided where required. Installation guides and maintenance packages are offered to ensure long-term performance.

Product Information:

3D V-fold security panels are welded wire mesh boards with 2–4 horizontal V-shaped ribs pressed into the panel to increase stiffness and resistance to deformation. Typical panel width ≈ 2.5 m; mesh options include 50×100, 50×150 and 50×200 mm; standard wire dia. 4.0 mm (adjustable).

Characteristics:

V-bend ribs create a built-in reinforcement so panels resist bending, impact and sagging while keeping a low visual profile — “clear-view” aesthetics retained. Surface finishing after galvanizing (powder or PVC) gives corrosion protection for outdoor use.

Application:

Typical uses: residential perimeters, commercial campuses, industrial parks, sports facilities, utility substations and landscape boundaries — anywhere that needs a balance of visibility, durability and basic perimeter deterrence.

Parameter table:

Installation:

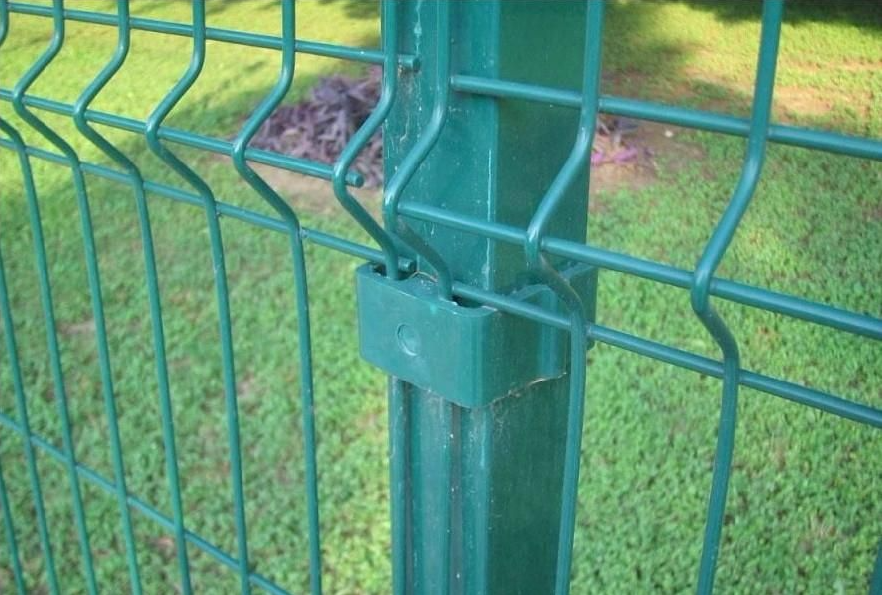

Panels mount to standard posts with clamps or bolts; choose in-ground concrete footings or baseplate anchors per site conditions. Inspect fastenings and coatings annually, touch up scratches promptly; coastal projects should consider heavier galvanizing or stainless parts.
