Stackable Ballast Temporary Security Fence Rapid Fill And Reuse System

Product Overview

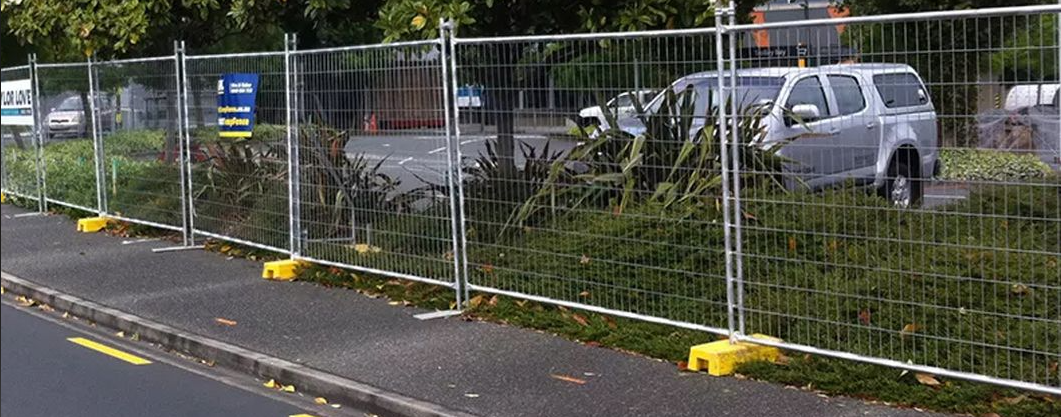

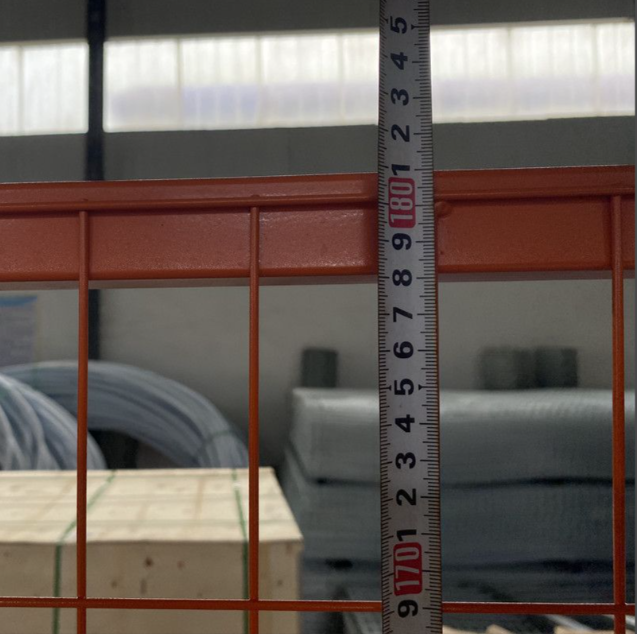

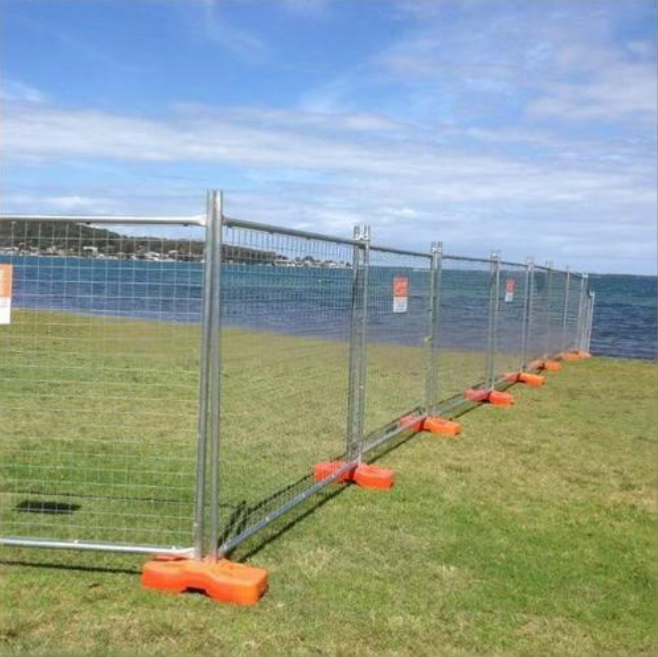

The Stackable Ballast Temporary Security Fence is a modular perimeter system optimized for speed of deployment, depot efficiency and repeated rental cycles. Panels are welded-mesh framed with hot-dip galvanised tubing and pair with interlocking HDPE ballast blocks that fill with water on site. This approach minimizes transported mass, allows single-person handling of empty ballast, and provides fast, tool-light stabilisation once filled.

Rapid Fill & Reuse Workflow

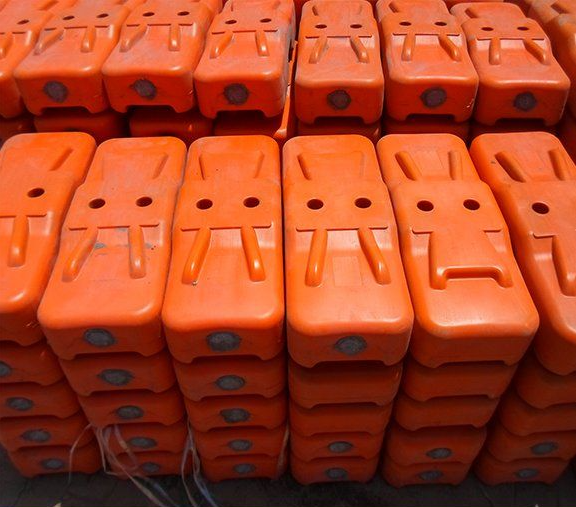

Ballast blocks ship nested and are placed beside each panel post; once panels are in position, crews fill ballast with water (or sand where water is unavailable) and lock the interlock tabs. Emptying and stacking at the end of a hire cycle returns components to pallet volume, vastly reducing depot footprint and freight cost. For hard-standing sites, steel ballast boxes are available to provide compact mass without the need for water.

Safety, Stability & Anti-Trip Design
Base blocks feature a low-profile outer edge and integrated chamfers to reduce trip hazards on busy event routes. Optional anti-tilt struts or diagonal braces connect from post to ballast for higher wind exposure or long perimeter runs. The welded mesh maintains sightlines for CCTV while the ballast location reduces the need for intrusive ground fixings, preserving site surfaces.

Operational Benefits for Rental Fleets
Standardized pallet packs, numbered panel IDs and spare clamp kits reduce turnaround time at depots. Quick-fit clamps and pre-drilled posts allow typical two-person crews to erect or remove multi-hundred-meter runs rapidly. Documentation packages can include ballast fill volumes and wind guidance so operators can choose safe spacing and ballast per local conditions.

Applications & Maintenance
Ideal for concerts, festivals, construction hoarding, emergency cordons and temporary access control. Routine checks focus on clamp torque, ballast sealing plugs and coating integrity. Replaceable mesh panels and modular ballast elements lower lifecycle costs and simplify field repairs.

Specification Table
