Powder Coated Steel Palisade Fence W Pale For Construction Site
Powder Coated Steel Palisade Fence W Pale For Construction Site
Powder Coated Steel Palisade Fence W Pale For Construction Site
Powder Coated Steel Palisade Fence W Pale For Construction Site
Specifications
Brand Name :
LJ
Model Number :
LJ-01
Certification :
ISO9001:2015
Place of Origin :
Hebei Province,China
MOQ :
50 Sets
Price :
$8.5-10.9 per meter
Payment Terms :
T/T
Supply Ability :
1000 sets per day
Delivery Time :
7-20days according to the quantity
Packaging Details :
steel pallet
Product Name :
Steel Palisade Fencing
Key Word :
Euro-Style Palisade Fence
Material :
Low Carbon Steel
Type :
W / D Pale
Surface Treatment :
Hot Dip Galvanized / Powder Coated
Panel Size :
1.5x2.0m,1.8x2.0m,1.8mx2.4m,2.1x2.4m, etc
Horizontal Rail :
30x30mm, 40*40mm,45*45mm, 2 rails,3 rails
Post Tyoe :
I post, H post, Square post
Color :
Green,black ,etc. all RAL color can be customized.
Feature :
High Security,easy installation
Application :
industrial areas, airports, railways and schools
Certificate :
ISO9001,SGS
Description

Hot Dip Galvanized Steel Palisade Fence W Pale For Security

Description of Steel Palisade Fence

Steel Palisade Fence is also known as picket welded fence, ornamental fence, steel security fence. The panels are manufactured using the highest-strength steel pickets and rails, and are available in a wide range of sizes and styles. Panels are attached with high-strength steel brackets to galvanized and powder-coated square tubular steel posts. Steel Picket Fence adopted high quality hot dipped galvanized steel tube. Top vertical tube pressed to spear by heavy duty punch.

Specifications of Steel Palisade Fence

  • Material: low carbon steel, mild steel, hot or cold rolled steel.

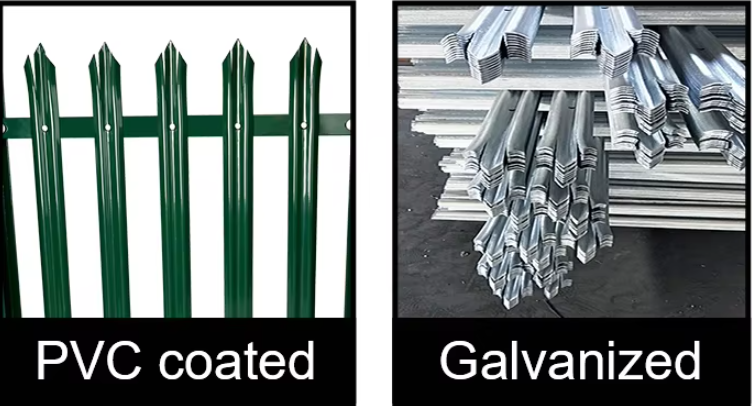

  • Surface treatment: hot-dipped galvanized (505 g/m2), electric galvanized.
  • Head type: one pointed, triple pointed, rounded, rounded & notched, square.
  • Pales section: D section pales, W section pales, angle section pales.
  • Height: 1.2 m to 3.6 m, as your request.
  • Pale thickness: W section is 2 mm - 3 mm, D section is 2.5 mm - 4.0 mm.

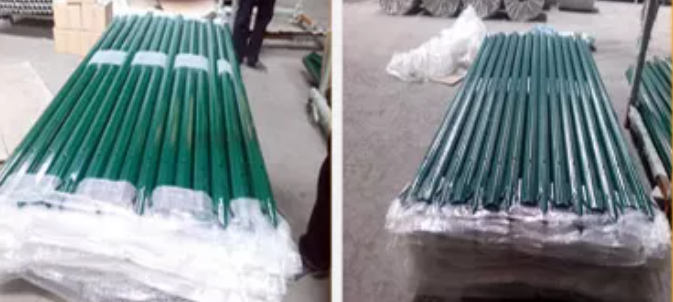

  • Package: plastic film, wooden pallet.

Specification Of Steel Palisade Fence
Panel Size(H*L) 1.2x1.8m,1.2x2.0m, 1.5x1.8m,1.5x2.0m,1.8x2.0m,1.8mx2.4m,2.1x2.4m, etc
Horizontal rail 30x30mm, 40*40mm,45*45mm, 2 rails,3 rails or 4 rails
Thickness:0.8--2.0mm
Picket tube 15x15mm,19*19mm,25*25mm
Thickness: 0.6--1.2mm
Post 50*50mm,60*60mm,80*80mm,100*100mm, Thickness: 1.2--3.0mm
Vertical pipe distance 100mm,110mm,120mm
Color popular color is black ,all RAL color can be customized.
Surface treatment hot dipped galvanized, galvanized + powder coated
Note: The fence can be customized according to your required if above specification is not satisfied with you

Features of Steel Palisade Fence

  1. Easy installation with standardized fittings (adapts to undulating terrains)
  2. Sleek, modern aesthetic with RAL-standard color customization
  3. Superior rust & corrosion resistance (hot-dip galvanizing/powder coating)
  4. High security: robust welded structure + optional concertina razor wire
  5. Impact-resistant design with horizontal bent stiffeners
  6. Low maintenance & long service life (up to 10 years)
  7. Modular construction for easy expansion/replacement
  8. Seamless integration with architectural/landscape environments

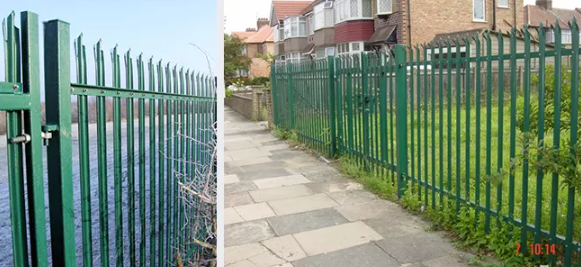

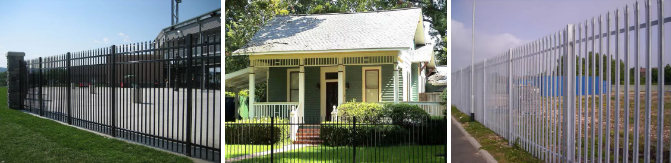

Applications of Steel Palisade Fence

1.Industrial & Commercial Premises

Ideal for securing factories, warehouses, logistics centers, and industrial parks. Its anti-climb sharp pales, impact-resistant steel structure, and corrosion resistance (hot-dip galvanization) withstand heavy machinery traffic, potential vandalism, and harsh industrial environments. Compatible with surveillance systems to protect equipment, inventory, and personnel.

2. Residential & Villa Communities

Suitable for villa courtyards, high-end residential compounds, and private gardens. Customizable heights (1.2-3.0m) and RAL color options (e.g., black, gray) blend with landscaping and architectural styles. The sleek European design balances discreet security (no intrusion gaps) and aesthetic appeal, avoiding an overly "industrial" look while ensuring family safety.

3. Municipal & Public Facilities

Widely used in municipal projects like parks, green belts, railway sides, and water treatment plants. Its weatherproof performance (UV-resistant coating) adapts to outdoor public environments, while the modular design enables quick installation for large-scale perimeters. The rigid frame resists accidental impact from pedestrians or vehicles.

4. Specialized High-Security Areas

Applied to data centers, power stations, prisons, and construction sites. Enhanced with anti-cut reinforcement and sharp-pointed tops, it deters forced entry. The 15-20 year service life meets long-term security needs of high-risk sites, reducing frequent replacement costs during project cycles.
