11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
11 Strips Razor Barbed Wire Machine 2000KG With PLC Control Punching
Specifications
Brand Name :
DIAOZHUO
Model Number :
DZ005 DZ009 DZ011 DZ021
Certification :
CE ISO9001
Place of Origin :
HEBEI, CHINA
MOQ :
1set
Payment Terms :
T/T, D/P, L/C
Supply Ability :
30 sets per month
Delivery Time :
20-30 days
Packaging Details :
unde
Price :
variable
material :
printed
punching :
PLC control
colour :
as required
type :
BTO-10 BTO-22 CBT-6
Description

11 strips high speed big capcity razor barbed punching machine

Razor wire making machine description

Razor barbed wire machine include razor strips making machine and coiling machine,there are 2 steps in production process,there are 2 different machines would finish all work.(razor strips making machine,coiling machine)

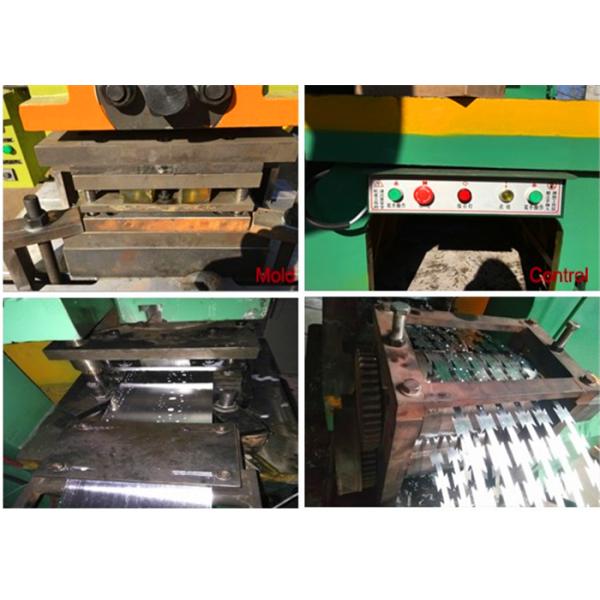

Razor strips making machine

This machine use to cut the steel strip,make the steel strip become razor shape.Different moulds can make the different razorshape.we have 5 or 9 output strips type.

Coiling machine

It is used to coil the razor strip to the steel wire.and then wind up the razor barbed wire to the wire spool.

Razor Wire Machine Type one strip five strips Nine strips
Overall Dimension L*W*H (mm) 1100x1000x1700 1200x1000x1800 1200x1000x1900
Rated Voltage 380V 380V 380V
Power 1.5KW 2.2KW 3.0 KW
Producing speed 220-280m/h 220-280m/h 250- 300m/h
Weight 800KG 1500KG 2000KG

Mould type

Mould type Barb Length Barb width Barb spacing
R1 12±1mm 13±1mm 26±1mm
R2 12±1mm 15±1mm 26±1mm
R3 18±1mm 15±1mm 33±1mm
R4 22±1mm 15±1mm 34±1mm
R5 28±1mm 15±1mm 34±1mm
R6 30±1mm 18±1mm 34±1mm
R7 60±1mm 32±1mm 96±1mm
R8 65±1mm 21±1mm 100±1mm
