Type NSHTOEU-J Rubber Round Reeling Cable For Bucket Wheel Excavator Reeling System & Stacker / Reclaimer Or Shiploaders

Introducing the Type NSHTOEU-J Rubber Round Reeling Cable, specifically designed for heavy-duty applications such as bucket wheel excavators, stackers, reclaimers, and shiploaders.

This standardized rubber cable is perfect for control, power, and composite reeling applications, offering a robust design that can handle high mechanical stresses.

Key Features:

• Very robust design: Suitable for motorized and spring reels.

• Sandwich double sheath: Outer sheath with special compounds provides excellent abrasion resistance.

• Embedded antitorsion braid: Enhances torsional flexibility.

Typical Applications:

• Movable equipment: Such as stackers, reclaimers, and shiploaders.

• Horizontal operating machinery: With travel speeds up to 120 m/min.

• Material handling machines: Operate efficiently in rough chemical environments like urea and sulfur.

• Bulk machinery: Ideal for use in equipment such as bucket wheel excavators.

Electrical Parameters:

• Rated voltage: Uo/U = 0.6/1.0 kV.
• Current carrying ampacity: According to DIN VDE 0298-4.
• Testing voltage: 2.5 kV.

Mechanical Load-Bearing Capacity:

• Travel speed: Up to 120 m/min.
• Minimum bending radii: According to DIN VDE 0298-3.

Thermal and Chemical Specifications:

• Ambient temperature (flexing): -25°C to +80°C.
• Ambient temperature (fixed): -40°C to +80°C.
• Max conductor operating temperature: +90°C.
• Max conductor temperature during short circuit: +250°C.
• Resistance: Ozone, oil (EN60811-2-1), UV, self-extinguishing, and flame retardant (IEC 60332-1).

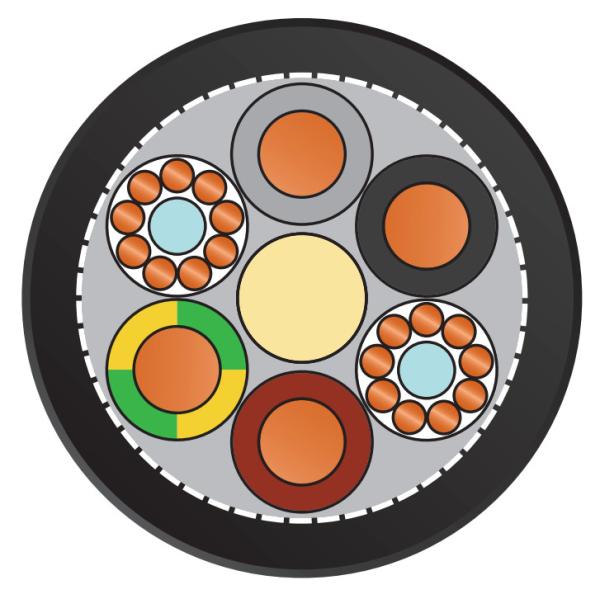

Design Features:

• Conductor: Finely stranded tinned copper, class 5 according to IEC 60228.

• Core arrangement: Cores laid up in layers.

• Insulation: Rubber compound.

• Conductor coding: Up to 5 cores are colored according to VDE 0293-308; from 6 cores, they are black with numerals with GN/YE.

• Inner sheath: Special rubber compound.

• Anti-torsion braid: Wide-meshed braid of polyester threads between the inner and outer sheath.

• Outer sheath: Special rubber compound, black in color.

Particularly Suitable For:

• Motorized reels with max speed 120 m/min.
• Use outdoors, and in dry, humid, and wet rooms.
• Medium dynamic loads and abrasion.
• Chemical environments that exclude other thermoplastics.

Q1: What are the main applications of the Type NSHTOEU-J cable?

A1: This cable is used for stackers, reclaimers, shiploaders, bucket wheel excavators, and material handling machines in rough chemical environments.

Q2: What is the rated voltage for this cable?

A2: The rated voltage is Uo/U = 0.6/1.0 kV.

Q3: Can this cable withstand high mechanical stresses?

A3: Yes, its robust design and sandwich double sheath make it suitable for high mechanical stresses.

Q4: What are the thermal specifications of this cable?

A4: The ambient temperature for flexing ranges from -25°C to +80°C, and for fixed installations, it ranges from -40°C to +80°C. The maximum conductor operating temperature is +90°C, and the short-circuit temperature is +250°C.

Q5: Is this cable resistant to chemicals?

A5: Yes, it is resistant to ozone, oil, and UV, and it is flame-retardant according to IEC 60332-1.

Q6: What is the maximum travel speed this cable can handle?

A6: It can handle travel speeds up to 120 m/min.

For further information and technical specifications, please refer to our detailed product datasheet or contact our support team.

Note: This is just part of the standard parameters of our products. Please contact our Engineer if you need more. And the information contained within this webpage is for guidance only and is subject to change without notice or liability. All dimensions and specifications are nominal and are subject to normal manufacturing tolerances. All pictures shown are for illustration purposes only. The actual product may vary. All the information is provided in good faith and is believed to be correct at the time of publication.
