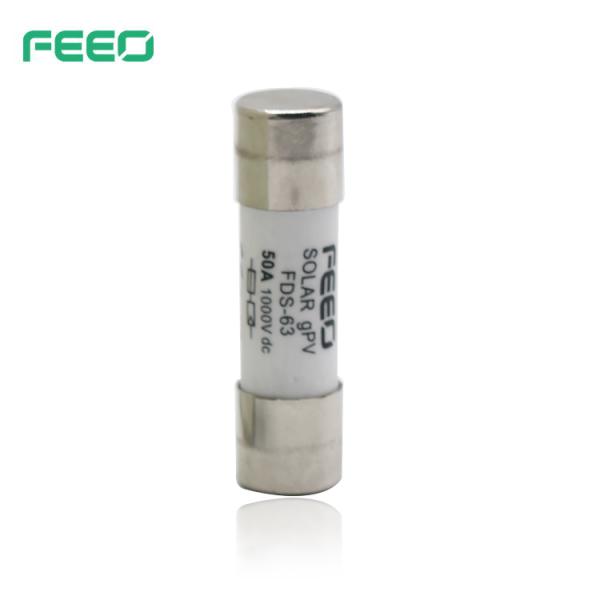

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse
Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse
Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse
Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse
Specifications
Brand Name :
FEEO
Model Number :
FDS-63
Certification :
CE/CCC/TUV/RoHS
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per week
Delivery Time :
7days
Packaging Details :
240pcs per carton
Pole :
1P
Rated Voltage :
1000V
Rated Current :
4/6/8/10/12/16/20/25/32/40/50/63A
Altitude :
<2000m
Installation Type :
DIN rail
Fuse size :
14*51
Connection :
2.5-10
Protection Class :
IP20
Description

FDS-63 14X51 63A 1000V 1P Fuse Holder IP20 DC Fuse Link

A range of 14x51mm fuse links specifically designed for protecting photovoltaic strings.

These fuse links are capable of interrupting low overcurrents

associated with faulted photovoltaic string arrays(reverse current, multi-array fault).

Structural Characteristics

• According to IEC60269-1

• Rated current : 1-63A

• Rated voltage : DC 1000V

• Rated breaking capacity : DC 20KA

• Operating class : gPV for solar protection

Specifications

Pole 1P
Rated Voltage Ue (V DC) 1000
Rated Current In (A) 4,6,8,10,12,16,20,25,32,40,50,63
Biggest Block Ability (KA) 25

Connection and Installation

Connection (mm2) 2.5~10
Working Temperature (℃) -30~+70
Resistance and Damp Hot Class 2
Altitude (m) ≤2000
Relative Humidity ≤95%
Protection Class / Degree IP20
Pollution 3
Installation Environment No obvious shock and vibration
Installation Class / Type Class III / DIN rail

Size

Size / Dimension (mm)
W x H x L W 22
H 66
L 96
Fuse Size 14 x 51
Fuse Link Weight (kg) 0.11
Fuse Holder Weight (kg) 0.025

PV fuse Description

• Photovoltaic system fuse accord with UL248-1 standard

• Photovoltaic battery dc fuse designed to used for photovoltaic (PV) system

• Main effect is to protect the solar panels. Solar panels points in effective condition is broken

• Fault light cells break points at the same time, does not affect other normal work of light from the stack

• Technical Data Rated coltage: DC1000V Breaking capacity: 25KA Function level: PV

Dimensions

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse

Installation

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse

Characteristic Curve

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse

Protecting Photovoltaic Strings 14×51mm IP20 DC Solar FuseProtecting Photovoltaic Strings 14×51mm IP20 DC Solar FuseProtecting Photovoltaic Strings 14×51mm IP20 DC Solar FuseProtecting Photovoltaic Strings 14×51mm IP20 DC Solar Fuse
