Durable 1500V 32A 2 Pole Rotary Isolator Switch
Durable 1500V 32A 2 Pole Rotary Isolator Switch
Specifications
Brand Name :
FEEO
Model Number :
FDIS for Enclosure
Certification :
CE/RoHS/CE/RoHS
Place of Origin :
China
MOQ :
1PC
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
5000pcs per week
Delivery Time :
7days
Packaging Details :
10pcs per carton
Rated insulation voltage :
1500V
Max Rated current :
32A
Rated impulse withstand voltage :
8000V
Rated thermal current :
32A
Mechanical life :
10000
Pole :
2/4P
Distance between contacts :
8mm
IP level :
IP66
Description

Application

♦ Max32A and 1500V

♦ Available in 2 to 4 Pole, application in the distribution box

♦ TUV certifificated

♦ Working Temperature: Full effificiency between -25℃ ~ 70℃

♦ 5 years guarantee certifificate

♦ Handy Locking Mechanism while off keeps it safe from

Children or Un-Authorized access

♦ Operator Independent trigger Ratchet Switching and Knife

Edge Self Cleaning Contact Mechanism

Technical Parameters

Technical data

Data according to IEC 60947-3,utilization category DC-PV1/ DC-PV2

Main Parameters FDIS-NHV
Rated Insulation Voltage Ui 1500V
Rated heating Current Ithe 32A
Rated Impulse Withstand Voltage Uimp 8000V
Rated Short-time Withstand Current(1S) Icw 2,4 1000A
2H 1700A
Rated Short-circuit Making Capacity Icm 2,4 1000A
2H 1700A
Rated Short-circuit Current Icc 5000A
Maximum Fuse Specifications gL(gg) 80A
Mechanical Life 10,000
DC poles 2 or 4

Distance Between Contacts(pole-to-pole)

 8mm
Operating Temperature -25℃~+70℃
Storage Temperature -45℃~+70℃
Class of pollution 2
Over voltage category I~III
IP level IP20

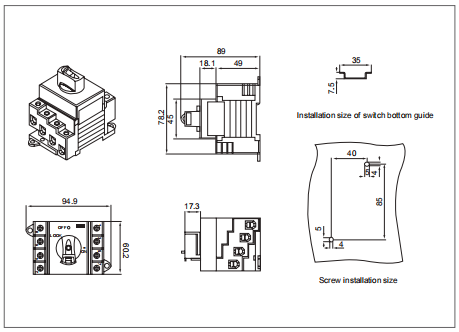

Dimensions

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Technical Data

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Wiring Diagram

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Curve

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Durable 1500V 32A 2 Pole Rotary Isolator Switch

Durable 1500V 32A 2 Pole Rotary Isolator SwitchDurable 1500V 32A 2 Pole Rotary Isolator SwitchDurable 1500V 32A 2 Pole Rotary Isolator SwitchDurable 1500V 32A 2 Pole Rotary Isolator Switch
