18TPH Animal Feed Production Machine Feed Pellet Production Line
18TPH Animal Feed Production Machine Feed Pellet Production Line
18TPH Animal Feed Production Machine Feed Pellet Production Line
18TPH Animal Feed Production Machine Feed Pellet Production Line
18TPH Animal Feed Production Machine Feed Pellet Production Line
18TPH Animal Feed Production Machine Feed Pellet Production Line
Specifications
Brand Name :
Shenghong
Model Number :
SZLH508
Certification :
BV, SGS, ISO9001, CE
Place of Origin :
Henan, China
MOQ :
1 set
Price :
USD 6999-19999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
50 sets per month
Delivery Time :
within 20 days
Packaging Details :
20GP, 40GP, 40HQ
Product name :
Animal Feed Production Machine Feed Pellet Machine Production Line
Voltage :
400V/380V/415V/600V
Feature :
High Efficiency Low Cost
Usage :
animal feed pellet machine
Color :
Clients' Requirement
Dimension(l*w*h) :
Actual
Power :
132/160 kw
Capacity :
10-18t/h
Description

Animal Feed Production Machine Feed Pellet Machine Production Line

Product description:

1) The process is reasonable. The structure is compact, and 3000-20000 tons of pre-mixed feed can be produced in a single shift per year.
2) Convenient installation, simple operation, low maintenance cost, less floor space, low plant requirements, and low investment.
3) The unit integrates lifting, mixing, dust removal, packing and other processes, and is equipped with a stainless steel double-shaft paddle type high-efficiency mixer .the unit is high mixing uniformity (CV ≤ 5%), low residual, stable operation, and no leakage.
4) It has a wide range of applications and strong versatility. It can be selected to produce feed of livestock, poultry, fish and shrimp feeds according to the user's needs and is suitable for use in small and medium-sized feed factories and aquaculture plants.

Parameter:

Pellet Mill Model
Main power
Capacity t/h
Ring die inner Diameter
Pellet size mm
SZLH250
22KW
0.8-1.5
250mm
2-8
SZLH320
37KW
1-4
320mm
2-8
SZLH350
55KW
2-8
350mm
2-18
SZLH420
110KW
3-12
420mm
2-10
SZLH508
160KW
4-20
508mm
6-12

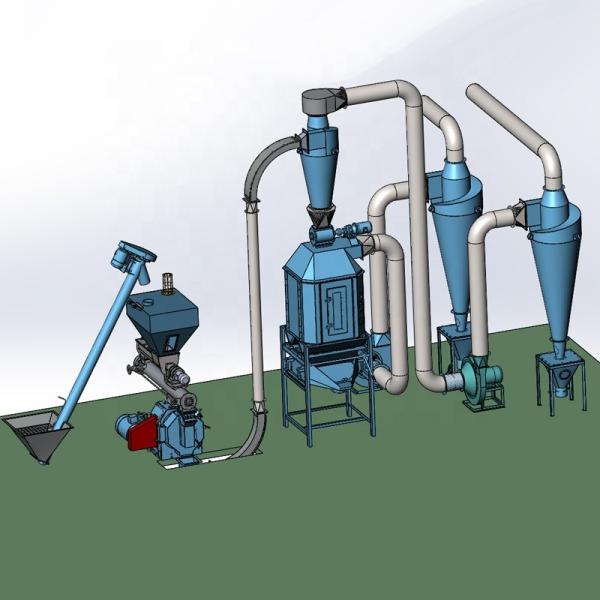

The feed pellet plant is also called feed pellet production line. A complete scale feed mill plant or feed pellet line generally includes silos for raw material storage, raw material receiving system, first batching system, mixing system, second batching, crushing system, pelletizing system, cooling system and bagging system. This animal feed processing plant equipment can process rabbit feed pellet, chicken feed pellet, cattle feed pellet, goat feed pellet, sheep feed pellet and other poultry feed.

Process of animal feed production machine:

1. Water-drop hammer crusher machine
Fine crushing machine, stable performance, widely used in large and medium-sized feed, food processing enterprises, raw material crushing.
2. Double shaft paddle mixer
Fast mixing speed, short mixing period, 30-120 seconds/batch; high mixing uniformity, CVS 5%, and no segregation; the mixing process of the machine is mild, the loading range is variable; the full-bottom electric opening and unloading Material, fast discharge, low material residual rate.
3. Ring die feed pellet machine
Imported high-quality bearings and oil seals are used to ensure efficient, stable and low noise operation. The feeder adopts a variable frequency speed regulating motor to ensure the quality of the pellet discharge. Conditioner to keep good quality and smoothly output.
4. Counter-flow cooler machine
On the Principle of the advanced counter flow cooling, SKLN series counter flow cooler is equipped with a reciprocating grate type discharging device, which is characterized by its smooth material flowing, suddenly cooling and uniform discharging.
5. Screen machine
Low breakdown, less maintenance, simple operation, the gearbox adopts non-gear transmission way, dispense with oil lubrication, avoid oil pollution with oil leakage .It changes the tail sliding support into elastic support, avoid deposited material avoid cross contamination.
18TPH Animal Feed Production Machine Feed Pellet Production Line
