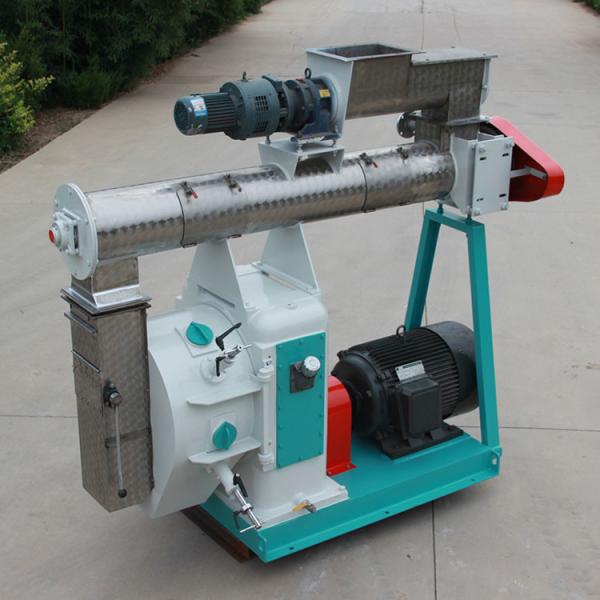

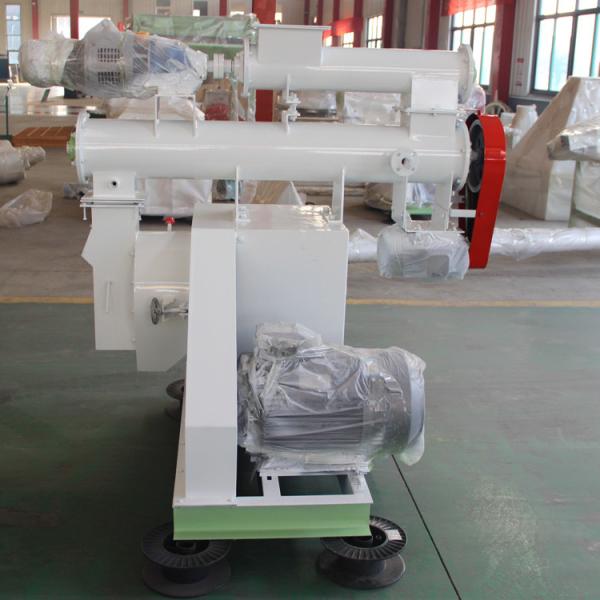

Ring Die Chicken Feed Pellet Mill Machine For Animal
Ring Die Chicken Feed Pellet Mill Machine For Animal
Ring Die Chicken Feed Pellet Mill Machine For Animal
Ring Die Chicken Feed Pellet Mill Machine For Animal
Specifications
Brand Name :
Shenghong
Model Number :
SZLH320
Certification :
BV, SGS, ISO9001
Place of Origin :
Henan, China
MOQ :
1 Piece
Price :
USD 3999-6999
Payment Terms :
L/C, T/T, Western Union, MoneyGram
Supply Ability :
20 sets per month
Delivery Time :
within 15 days
Packaging Details :
Plywood packing, 20GP, 40GP, 40HQ
Product name :
Chicken Feed Pellet Mill Machine Animal Feed Pellet Machine For Animal
Capacity :
1-3 tons per hour
Raw material :
Animal feed powder
Material :
Stainless steel or carbon steel
Voltage :
380V/415V
Warranty :
12 month
Description

Chicken Feed Pellet Mill Machine Animal Feed Pellet Machine For Animal

Product description of feed pellet mill machine

Ring die aquatic feed pellet mill is an ideal pelleting mill for commercial aquafeed pellet plant and it is also suitable for large scale aquatic farmers who feed large quantity of aquatic animals and aquatic feed processing industry. With advanced technology and compact design, this aquatic feed pellet mill can produce aquafeed pellets with smooth surface and super quality. The finished aquafeed pellets are easy to digest for aquatic animals, such as fish, shrimps, etc. Aquafeed pellets produced by this ring die aquatic feed pellet mill are becoming more and more popular for aqua culture.

Parameter of feed pellet mill machine

Model No. Main motor power Capacity (t/h) Ring die inner diameter (mm) Feeder power (kw) Conditioner motor power (kw) Size (mm) Weight (kg)
SZLH250 22kw 0.6-1 250 0.75 1.1 1750×650×1750 800
SZLH320 37kw 1-3 320 0.75 2.2 1900×1800×1650 2000
SZLH350 55kw 3-5 350 0.75 2.2 2100×2000×1850 2400
SZLH420 110kw 8-10 400 1.5 4 2200×2000×2150 2900
SZLH508 132/160kw 10-18 450 1.5 4 2300×2350×2150 3500

Ring Die Chicken Feed Pellet Mill Machine For Animal

Features:

1.Diameter of fish feed pellets can be adjusted to meet different requirements.
2.Equipped with three-layer jacket conditioner, this aquatic feed pellet mill can make raw materials be fully cooked and ensures the quality of discharged aquatic particles.
3.Main driving employs high precision gear transmission, so the capacity can be improved about 20% compared to the belt transmission type.
4.This ring die aquatic feed pellet mill adopts imported high quality bearing and oil seal, which make sure the pellet mill has high efficiency, stable performance, and low noise.
5.The Feeder uses frequency conversion speed regulating motor to guarantee the quality of discharged aquatic particles.
6.Various kinds of bore diameters to choose. High quality ring die makes produced feed pellets have smooth surface and high quality, besides it also has long service life.
7.International advanced spring coupling device has novel design, compact structure, low noise and low failure rate.

Ring Die Chicken Feed Pellet Mill Machine For Animal

Details:

Aquatic Feed Pellets Diameter: 2mm, 3mm, 4mm, 4.5mm, 5mm, 6mm, 8mm, 10mm
Conditioner speed: 350RPM
Pellets shaping rate: ≥95%
Percentage of powdered pellets: ≤12%
Pellets stability in water: ≥20Min
Roller working temperature: ≤85℃
Steam working pressure: 0.1-0.4Mpa
Steam temperature: 130-150℃
