SUS201 Animal Pet Food Extrusion Machine 150-5000kg/H
SUS201 Animal Pet Food Extrusion Machine 150-5000kg/H
Specifications
Brand Name :
SBN
Model Number :
SLG65/70/85/95/120/135
Certification :
CE,SGS,BV
Place of Origin :
Shandong provice, China
MOQ :
1 set
Price :
USD 30000 Set
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10 set per month
Delivery Time :
Within 45 days after down payment
Packaging Details :
Wooden cases
Machine material :
Stainless steel 304 at food grade
Screw material :
Special alloy 38CrMoAlA
Heatiang source :
electricity, gas, diesel, steam
Inveter :
ABB
Electric parts :
ABB
capacity :
150-5000kg/h
After sales services :
Field installation, commissioning and training
Contact Candice :
0086 18660166736
Description
SUS201 Animal Pet Food Extrusion Machine 150-5000kg/H
Product Description

1. animal feed production line instruction:

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) Running in a high automatization and intellectualization,no pollution

SUS201 Animal Pet Food Extrusion Machine 150-5000kg/H

2. animal feed production line flow chart

Mixer-screw conveyor-twin screw extruder-air conveyor-dryer-air conveyor-oil sprayer-flavor roller-cooling machine

3. animal feed production line machine parameters

Model

Parameter

FSJ-37

Miller

BFJ-Ⅱ

Mixer

LXSL-I

Screw conveyor

SLG65-III

animal feed production line

FSJ-0.75

Air conveyor

KX-3-5D

Dryer

FSJ-0.75

Air conveyer

PYJ-II

Oil sprayer

GT-II

Roller

LQSS-II

Cooling conveyor

Installed capacity

(kw)

 15 4 0.75 36.0 1.1 27 0.75 10.0 1.5 2.2

Output

(kg/h)

 300 150 150 150 150 150 150 100 300 260

Dimension

(m)

 1.2×0.8×1.5 1.0×0.7×1.4 3.3×.8×2.3 2.7×0.9×1.9 3×.0.6×0.55 5.0×1.3×1.8 1.1×0.6×0.5 1.1×0.7×1.8 3..9×0..9×2.0 5.0×0.7×1.1

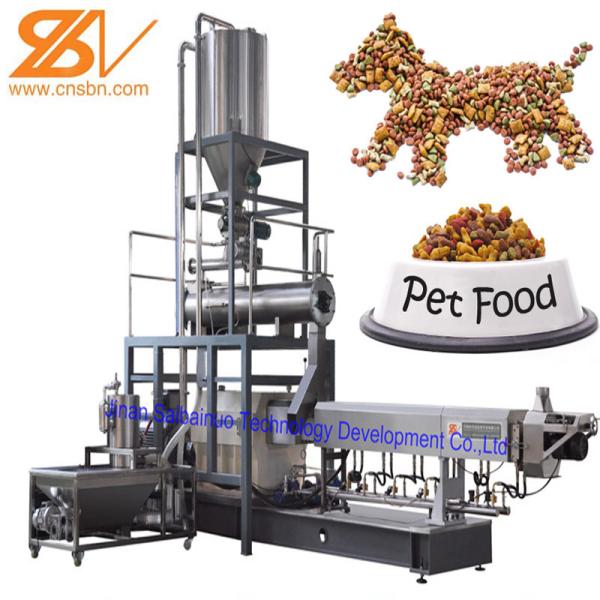

4. animal feed production line machine samples

SUS201 Animal Pet Food Extrusion Machine 150-5000kg/H

Extruder features

Extruding system:
The working principle is forcing the ingredients forward to be conveyed and extruded
in the sealed charging barrel by making use of the engaged twin screws, at the same time, heating the ingredients through heating.cycles, the ingredients are mixed, melt and sheared step by step under the conditions of high temperature and pressure. At last the ingredients are inflated at the point of being extruded out. This system possesses self-cleaning function.

Rotary-cutting system:
The ingredients are cut by high-speed rotary cutting-off knife when they are extruded
and inflated. The length of cut-off is adjustable through step-less speed regulating electrical machine.

Heating system:
The heating system is divided into several heating areas by means of far-infrared heating cycles. The temperature of each area is automatically adjusted through separate temperature controller.
Driving system:
This system is composed of primary electric motor, reductor, distribution box, and
lubrication system. Adopting imported frequency controller, it assures large regulating range, efficient power distribution, accurate adjustment, steady working as well as prolonging the working life of the components.
Controlling system:
Adopting centralized controlling, the whole process, from starting, rotary cutting,
lubricating, switching off to output adjustment can be automatically operated.
Automatic defender and status display device are also allocated in this system
Digital display for pressure control in extruding system and temperature in heating system
Digital display for frequency control and speed of screw in driving system

SUS201 Animal Pet Food Extrusion Machine 150-5000kg/H
