SZLH320 Ring Die Livestock Poultry Pellet Feed Plant 80kw 3T/H
SZLH320 Ring Die Livestock Poultry Pellet Feed Plant 80kw 3T/H
SZLH320 Ring Die Livestock Poultry Pellet Feed Plant 80kw 3T/H
SZLH320 Ring Die Livestock Poultry Pellet Feed Plant 80kw 3T/H
Specifications
Brand Name :
Strongwin
Model Number :
2-3t/h
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per year
Delivery Time :
10-30 working days after deposit
Packaging Details :
Wooden Case or In Container
Equipment name :
Ring Die Livestock Animal Feed Manufacturing Plant
Type :
SZLH320 ring die type
Power :
80kw
Capacity :
2-3T/H
Pellet size :
2-15mm
Main machine :
crusher,mixer,pellet,cooler,crumbler,screener,packing machine
Description

SZLH320 Ring Die Livestock Animal Feed Manufacturing Plant

Strongwin factory can supply 1-30T/H animal feed manufacturing plant with steel structure and silos. For different Customers' need.

Complete animal feed manufacturing plant including:

raw materials receiving and cleaning process,
crushing process,
mixing process,
pellet making process,
pellet cooling process,
sifting process
packaging process.

This plant is design for small and middle feed factory and farms, can make kinds of animal feed pellet. Small land area, easy to operate, good Choice for Customers.

Technical Parameters of animal feed manufacturing plant

Item Name Type Power(kw)
Part 1. Raw material receiving& crushing system
103 Impulse Filter TBLMb12
106 Cylinder Filtering Sieve TCQY63 0.75
107 Permanent magnet drum TCXT20
110 Impeller speed regulating

Feeder		 TWLY400*25 0.75
111 Crusher SWSP56-40 30.00
Part 2. Mixing System
203-1 Powder Screener SCQZ60 5.50
208 Mixing SHW1.0 7.50
210 Scraper Conveyor TGSU20 2.20
Part 3. pelleting system
308 Pellet Mill SZLH32 39.95
310 Cooler SKLN11*11 0.75
311 Crumbler SSLG15*100 5.50
Part 4. Packing system
402 Rotary Screener SFJH80*2d 2.20
406 Auto Packing Scale 10-50KG
Part 5. Auxiliary Equipment System
501 Oil adding System
502 Steam Supplying System
503 Oil Adding Tube

SZLH320 Ring Die Livestock Poultry Pellet Feed Plant 80kw 3T/H

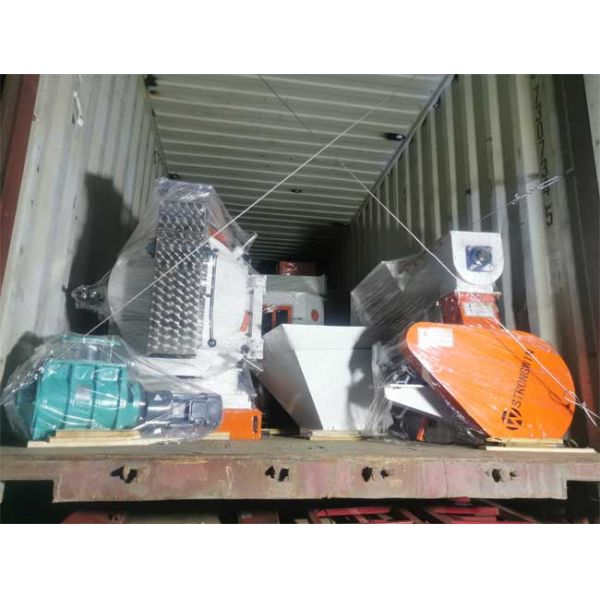

This is our SZLH320 feed plant packing and shipping to Uzbekistan. Welcome contact us !
