Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Rabbit Feed Pellet Production Plant
Specifications
Brand Name :
Strongwin
Model Number :
5t/h pellet plant
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per year
Delivery Time :
15-30 working days after deposit
Packaging Details :
Wooden Case or In Container
Machine Name :
Poultry Chicken Rabbit Feed Production Plant
Yield per hour :
5T/H
Main machine Power :
300kw
Final pellet :
2-10mm
Main machine :
crusher,mixer,pellet,cooler,screener machine
Application :
Poultry Animal Feed
Motor :
Siemens
Bearing :
SKF
Description

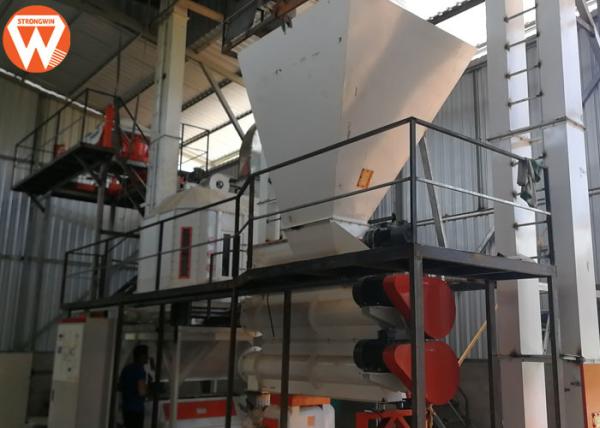

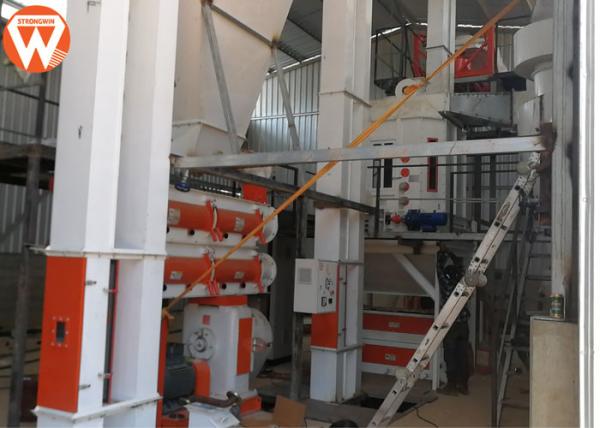

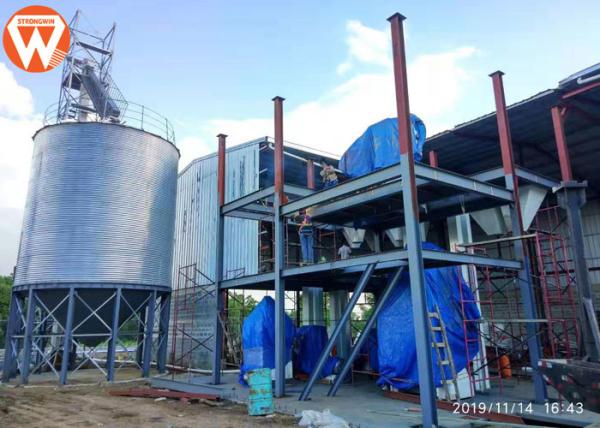

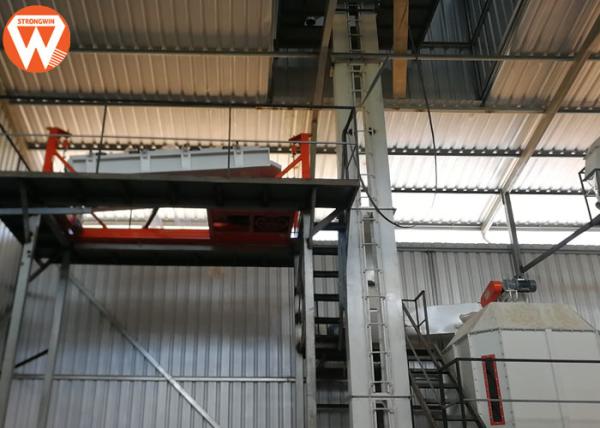

Poultry Chicken Rabbit Feed Production Plant With Installation In Ecuador

Introduction of Poultry Chicken Rabbit Feed Production Plant

Materials crusher--Feed Mixer--Pelletizer--crumbler(can customer need)--Feed cooler--Screener machine--Packing machine

Water-drop hammer crusher machine

Adopting international advanced technique, crush room is designed as water drop. With special twice crush design, crush efficiency is greatly improved. With full open operating door, elasticity sieve pressing mechanism, easy to maintain and replace sieve.

Double shaft paddle mixer

The improvement of open door shaft and link mechanism ensure that the angle of openning door is larger than 90-(the materials can’t fall on the door), close door which is deadlocked.

Advanced adding and spraying system could be added many kinds of liquid and solid at the same time, Precision spraying and convenient control.

Ring die feed pellet machine

Ring die pellet machine main engine drives, high precision gear, ring die in quick detaching encircling hoop type, output higher 20% than belt drive

Equipped with steam automatic regulatory system to keep refining temperature constant

Larger type strengthen feeding conditioner in entire stainless steel with frequency speed control, ensure the high quality of pellet feed.

Counter-flow cooler machine,Screener machine

Technical Parameters of Poultry Chicken Rabbit Feed Production Plant

Item Name Type Qty Power (KW)
Part 1. Raw material receiving& crushing system
1-103 Impulse Filter TBGM20 1
1-105 Bucket Elevator TDTG36/23 1 4
1-106 Cylinder Filtering Sieve TCQY63 1 0.75
1-107 Additive Blender TCXT20 1
1-110 Impeller speed regulating Feeder SWLY60 1 1.1
1-111 Crusher SFSP66*60 1 55
1-114 Impulse Filter TBLMa24 1
1-116 Wind-shielding Screw conveyor TLSB20 1 2.2
Part 2. Mixing System
2-202 Bucket Elevator TDTG36/23 1 4
2-203 Powder Screener SCQZ60 1 5.5
2-207 Feeder for additive 1
2-208 Mixer SLHS1.0 1 11
2-210 Scraper Conveyor TGSU20 1 3
Part 3. pelleting system
3-308 Pellet Mill SZLH350 1 57.95
3-310 Cooler SKLN3 1 1.5
3-311 Crumbler SSLG15*150 1 11
Part 4. Packing system
4-401 Bucket elevator TDTG36/18 1 3
4-402 Rotary Screener SFJH80*2d 1 2.2
4-409 Auto Packing Scale 10-50KG 1 1.5
4-410 Stitch conveyor 1 1.5
Part 5. Auxiliary Equipment System
5-506 Steam Supplying System 1
5-507 Oil adding System 1 2.2
5-508 Oil Adding Tube 1
5-509 Calabash Crane 1 3

Rabbit Feed Pellet Production Plant
