Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine
Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine
Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine
Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine
Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine
Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine
Specifications
Brand Name :
Strongwin
Model Number :
SZLH320
Certification :
CE,ISO,SGS
Place of Origin :
China
MOQ :
one set
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
5000sets per year
Delivery Time :
3-7 Working days
Packaging Details :
Wooden Case
Name :
Cattle Feed Pellet Mill Chicken Feed Pellet Making Machine
Type :
Ring die
Capacity :
2-4T/H
Apply to :
poultry animal feed
Main Power :
37KW
Motor :
Siemens
Bearing :
SKF
Description

2-4 T/H Cattle Feed Pellet Mill Chicken Feed Pellet Making Machine

Product Descriptions

1. Driven by variable frequency motor, the feeder can be adjusted automatically within a certain scope according to the production;
2. The interlock device, outer machine discharging device and over-load protection device work together to ensure the safety and reliability;
3. Magnetic separation and removal mechanisms are configured to prevent the iron impurities from entering into the suppression of granulation chamber.
4. The cooking time and result are highly improved by the extended stainless steel feeding conditioner with the axial inlet steam.
5. The circulating lubrication oil system is specially designed to ensure the bearings in good condition.
6. The ordinary conditioner, thermal insulation conditioner or double-shaft differential conditioner are options according to your requirements.

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

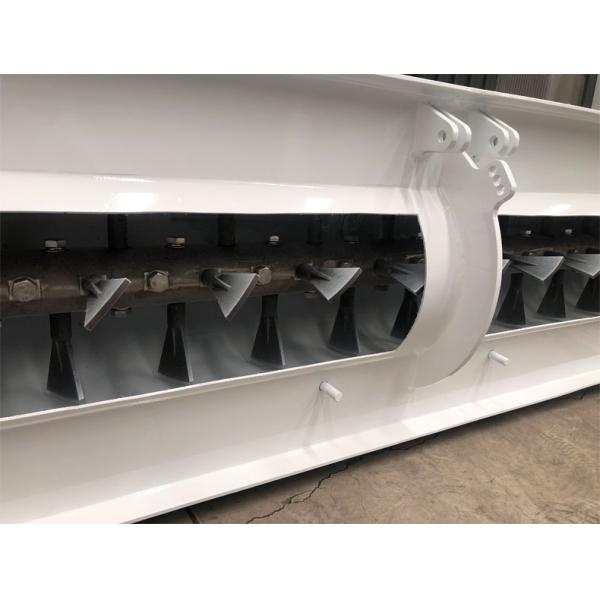

Conditioner Paddle, stainless steel type

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

Durable use ring die and roller

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

Technical Parameters of ring die series animal feed pellet machine

Item SZLH320 SZLH350 SZLH400 SZLH420 SZLH508
Capacity 2-4T/H 2-8T/H 2-10T/H 3-12T/H 4-20T/H
Main power 37KW 55KW 75/90KW 110KW 132/160KW
Power of feeding auger 0.55KW 1.5KW 1.5KW 1.5KW 1.5KW
Power of conditioner 2.2KW 3KW 3KW 5.5KW 7.5KW
Inner diamater of die 320mm 350mm 400mm 420mm 508mm
Die speed 305RPM 336RPM 307RPM 287RPM 287RPM
Feeder auger speed 12-120RPM
Conditional speed 350RPM
Pellet size 2-10mm
Roller number 2
Roller diamater 140mm 165mm 190mm 206mm 222mm
Pellet ratio of briquetting ≥95%
Percentage of powdered pellets ≤12%
Stability of pellet in the water ≥20MIN
Noise ≤86db(A) ≤90db(A)
Die working temperature ≤85°C
Steam working pressure 0.1-0.4Mpa
Steam consumption t/h ≥0.3 ≥0.3 ≥0.4 ≥0.5 ≥1
Steam temperature 130-150°C

Belt type SZLH250 feed pellet machine

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

If Customers materials have grass, Need pellet machine with Force-Feeding

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

Apply to feed pellet plant

Poultry Animal 37KW 2T/H Cattle Feed Pellet MachinePoultry Animal 37KW 2T/H Cattle Feed Pellet Machine

For high quality livestock and poultry animal feed pellets.

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

Products in Stock

Poultry Animal 37KW 2T/H Cattle Feed Pellet Machine

Provide users with economical and rational design
Professional installation and training service
Welcome contact us !
