1.5T/H Chicken Cattle Poultry Pellet Feed Plant 380V
1.5T/H Chicken Cattle Poultry Pellet Feed Plant 380V
Specifications
Brand Name :
Strongwin
Model Number :
1.5-2.5t/h feed line
Certification :
CE,ISO
Place of Origin :
Henan,China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
200 sets per year
Delivery Time :
15-30 working days
Packaging Details :
whole production line:by container
Name :
Animal Food Production Line Of Cattle Feed Cost
Power :
60KW
Voltage :
380V/50Hz
Type :
Belt type
Capacity :
1.5-2.5t/h
Feed size :
2-15mm
Installation :
Offer manual book and engineer's guidance
Service :
24 hours online technical support
Description

1.5T/H Chicken Cattle Poultry Pellet Feed Plant 380V

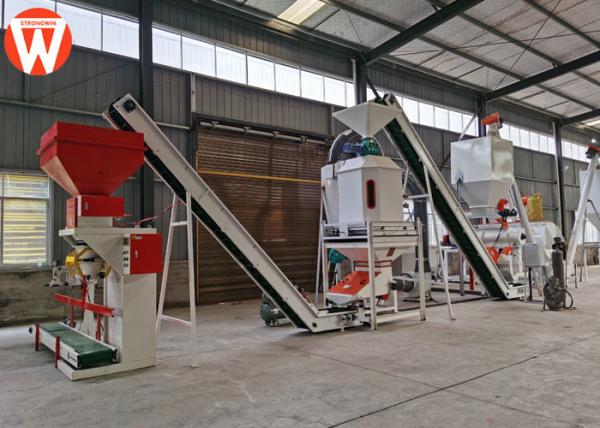

Introduction of animal food production line

Strongwin manufacture 1-30t/h feed pellet line for Customers

About SZLH250 feed line, we supply Plan A and Plan B for Customers


Plan A: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Screening & Grading → Pellet Packing


Plan B: Raw Material → Feed Grinding → Feed Mixing → Feed Pelletizing → Pellet Cooling → Pellet crumbler → Rotary grading screen → Pellet Packing


Both the two plans are Simple operate and small land area. Popular among Customers at home and abroad.

Technical Parameters of animal food production line

No. Product Type Power(KW)
1.Raw materials receiving and crushing and mixing system
101-1 Screw Conveyor TLSS16 2.2
101-2 Screw Conveyor TLSS20 3
103 Imitation grinder (including iron remover) SFPZ56*30 18.5
104 U-shaped ribbon horizontal mixer LHY1.0 7.5
2.Pelleting system
201 Screw Conveyor TLSS20 3
202 To be granulated bin (including window) 1.0m³
203 Pellet Machine(include control box) SZLH250 11*2+2.2+0.75
3.Cooling system
301 Skirt belt conveyor QBPS400 2.2
302 Buffer bucket 0.2m³
303 Stainless steel air shutter GFY250 1.1
304 Counter Flow Cooler SKLN1.0 0.75
305 Air Blower 4-72No4A 5.5
306 Unloader XL60
307 Wind shut GFY215 0.75
308 Vibrating screen SFJZ60*1d 0.25
4.Screening and packaging system
401 Skirt belt conveyor QBPS400 2.2
402 Buffer bucket 0.5m³
403 Packing scale with sewing bag 2.2
Optional Simple oil filling system (including pipes and nozzles) SYVT32 1.5
Air compression system 3
Boiler with link system 0.3t/h 3
Crumbler machine SSLG15×80 5.5
Price Welcome contact us for latest price

Application of animal food production line

SZLH250 animal feed pellet machine is widely used to produce pellets for animals,such as chicken, duck, Pigeon, pig, horse, cattle sheep and other poultry and livestock animal. The pellets by our machine have firm and smooth structure and easy digest
