Industrial-Grade Mica Tape Impregnated High-Temp Wire UL-Certified -80°C To 500°C
Industrial-Grade Mica Tape Impregnated High-Temp Wire UL-Certified -80°C To 500°C
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-K-BH-MA-BH-0.6
Certification :
ISO9001：2015
Place of Origin :
shanghai
MOQ :
100 meter
Payment Terms :
L/C, T/T, ,Paypal
Supply Ability :
50000 meter per month
Delivery Time :
5-18 working days after payment confirmed
Packaging Details :
Coil+Paper Carton
Name :
Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable 650℃ 100M IEC ANSI StandardPWHT Thermocouple Type K Cable 650℃ 100M IEC ANSI Standard
Cable Type :
Type K
Insulation :
Mica + High Temperature Fiber Glass(650℃)
Conductor Size :
0.5mm/0.6mm/0.71mm/0.81mm/1.0mm
Color :
ANSI(yellow, red)/IEC(green, white)
Application :
PWHT Accessory Thermocouple Cable
Working Temperature :
650℃(long time)
Accuracy :
Class I(Class A)
Description

Industrial-Grade Mica Tape Impregnated High-Temp Wire, UL-Certified (-80°C to 500°C)

Cable Specification
Item Name Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable Industrial-Grade Mica Tape Impregnated High-Temp Wire UL-Certified -80°C To 500°C
Item Number K-BH-MA-BH-0.6
Conductor Material +Chromel -Alumel
Conductor Dia 2*0.6mm( ±0.01mm)

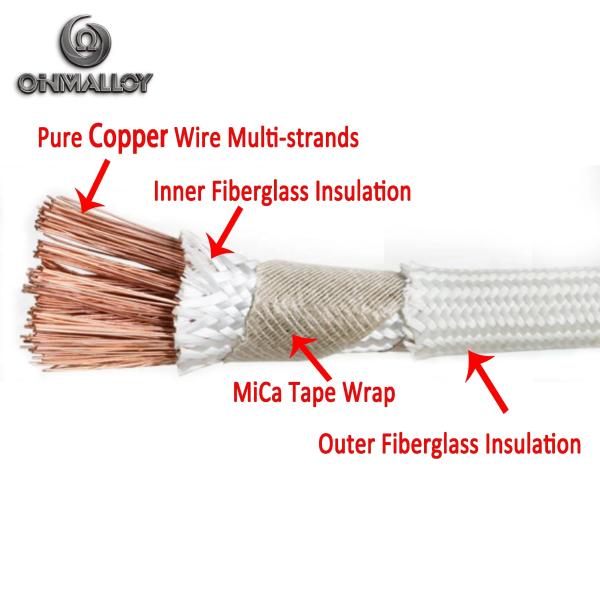

Inner Insulation and Thickness

High Temperature Fiberglass (long term: 600℃, short term: 700℃)

Mica Wrapped(650℃)
Inner Insulation Diameter 1.2mm(±0.2mm)
Outer Jacket Material High Temperature Fiberglass (long term: 600℃, short term: 700℃)
Finished Diameter 2.4mm*3.4mm(±0.2mm)
Weight 15.6KG/K

Conductor Material Inspection: Chromel Alumel Material Batch NO.: L858D98

Chemical Composition Standard
Elements Ni Cr Mn Si Al Co Other IEC60584
Chromel Bal. 8.8-9.8 / ≤0.3 / ≤0.6 0.2
Alumel Bal. / ≤0.8 ≤0.6 1.6-2.3 / 0.1

Insulation Material Inspection: Vitreous Silica Material Batch No.: V19D01

SiO2 Infiltrant content Fiberglass Nominal Diameter Max Working Temperature (long time) Tex
98% 0.9% 8μm 800℃ 160

Mica Wrap Fiber Glass PWHT Thermocouple Type K Cable Application

Industrial-Grade Mica Tape Impregnated High-Temp Wire UL-Certified -80°C To 500°C

Industrial-Grade Mica Tape Impregnated High-Temp Wire UL-Certified -80°C To 500°C
