Specifications
Brand Name :
OHMALLOY
Model Number :
Type J
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai)
MOQ :
10KG
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
10tons/month
Delivery Time :
10-15 working days
Packaging Details :
spool
Color :
Conforms to ANSI, IEC, JIS
Standard :
ANSI96.1 or IEC 584-2
Size :
0.35mm*19
Conductor Material :
Constantan
Application :
Heating
Description

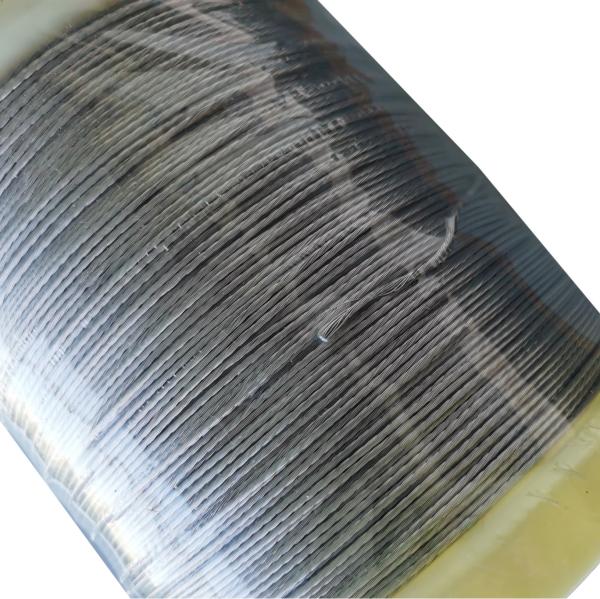

0.35mm*19 twist J type thermocouple wire

TYPE J (Iron vs Constantan) is used in vacuum, oxidizing, inert or reducing atmospheres. Iron element oxidizes rapidly at temperatures exceeding 538'C, and therefore heavier gauge wire is recommended for longer life at these temperatures

1. Chemical Composition

Material Chemical composition (%)
Ni Cu Si Iron Al
JP(Iron) 100
JN(Constantan) 45 55

2. Physical properties and Mechanical properties

Material

Density

(g/cm3)

 Melting point (℃) Tensile Strength (Mpa)

Volume resistivity

(μΩ.cm)

 Elongation rate (%)
JP(Iron) 7.8 1402 >240 12.0(20℃) >20
JN(Constantan) 8.8 1220 >390 49.0(20℃) >25

3. EMF Value range at different temperature

Material EMF value (μV)
100℃ 200℃ 300℃ 400℃ 500℃ 600℃
JP-JN 5187~5351 10696~10862 16244~16410 21760~21936 27281~27505 32962~33242
EMF value Vs Pt (μV)
700℃ 750℃ 760℃ 800℃ 900℃ 1000℃
38958~39306 42089~42473 42725~43113
