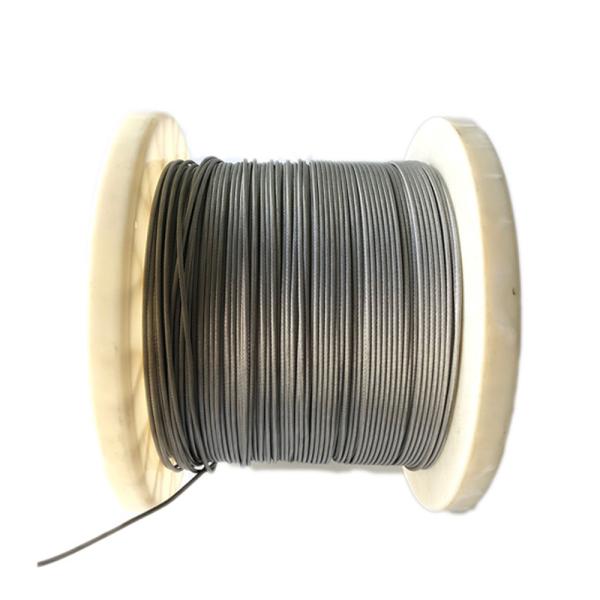

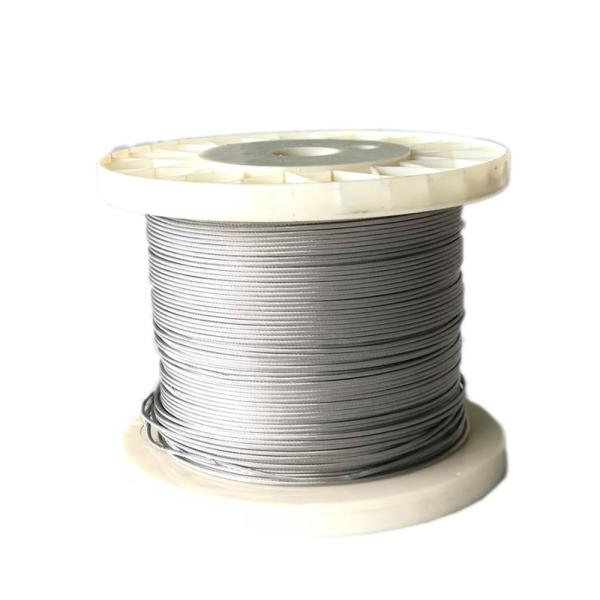

PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-ni212 rope
Certification :
ISO9001：2015
Place of Origin :
shanghai
MOQ :
500Meter
Payment Terms :
L/C, T/T, ,Paypal
Supply Ability :
3000 KG per month
Delivery Time :
5-18 working days after payment confirmed
Packaging Details :
Spool+Plywood Case
Name :
Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire
Wire Type :
Nickel 212 Ni98Mn2
Wire Strands :
19 strands or 38 strands
Rope Handling :
Bright，Annealed
Package :
500Meter/Roll
Application :
PWHT Ceramic Heating Pad Wire
Warrenty :
3 Years
Description

PWHT Heating Pad Heating Wire 19 strands Cold Tail Lead Wire Pure nickel wire Ni212

Product Name: 19 Strand Ni212 wire

Specification: 18*0.61mm+1*0.71mm

Outer Diameter: 2.9mm(±0.2mm)

Quantity: 1500 meter

Resistance: 0.021 ohm/meter (±5%)

PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212

Conductor Material Inspection: Ni212 Material Batch NO.: N728D09

Chemical Composition(﹪)
Elements C Mn Si S Ni+Co Cu Mg Fe
Ni212 <0.1 1.5-2.5 <0.2 <0.006 >97 <0.2 <0.2 <0.25

PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212


Wire Rope Type and Standard Size Reference:

Alloy Wire No. of Strands Nominal OD (mm) King Wire Size (mm) Resistance (Ω/m) Length (m/kg)
0Cr20Ni80 19*0.523 2.7 0.574 0.285 29
0Cr15Ni60 19*0.523 2.76 0.574 0.29 30
0Cr20Ni80 37*0.385 2.76 0.45 0.279 28
Pure Nickel 19*0.574 2.87 0.574 0.0198 21
Nickel 212 19*0.574 2.87 0.71 0.0234 22

Nickel 212 Ni98Mn2 Wire 19 38 Strands For PWHT Ceramic Heating Pad Wire Application

PWHT Heating Pad Heating Wire 19 Strands Cold Tail Lead Pure Nickel Wire Ni212
