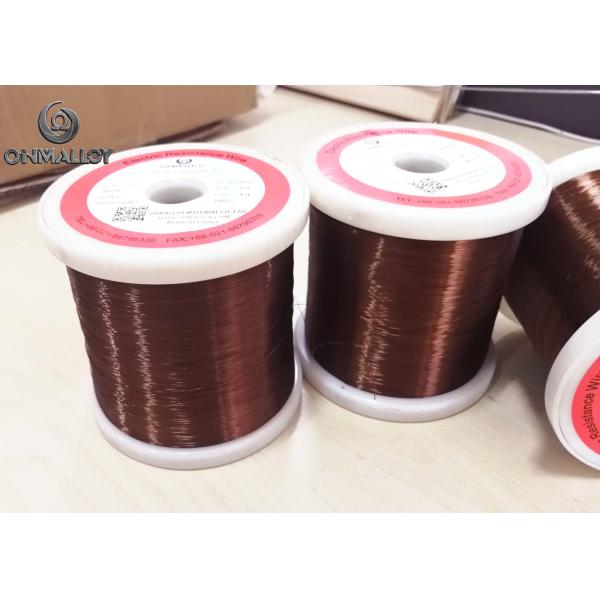

Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-EN-2080-200D
Certification :
RoHs
Place of Origin :
China
MOQ :
5 KG
Price :
USD 38.5-100 per KG
Payment Terms :
L/C, T/T, , ,paypal
Supply Ability :
200KG per month
Delivery Time :
5-15 working day
Packaging Details :
Spool+Parper carton
Name :
Varished 0Cr20Ni80 Nikrothal Resistohm 80 Wire
Conductor Material :
0Cr20Ni80(Nikrothal 80/ Resistohm 80)
Coating Material :
Double Polyester imide Coating
Max working Temp. :
200 degree celsius
Application :
Resistance wire/ Heating Wire
Mini Varnished Diameter :
0.025mm
Description

Varished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester-imide Double Coating 200 Degree Celsius

These enameled resistance wires have been broadly used for standard resistors, automobile parts, winding resistors, etc. using the insulation processing best suited for these applications, taking full advantage of the distinctive features of enamel coating.

Furthermore, we will carry out enamel coating insulation of precious metal wire such as silver and platinum wire upon order. Please make use of this production-on-order.

Varnished 0Cr20Ni80 Nikrothal Resistohm 80 Wire Polyester Imide Double Coating 200 Degree Celsius

Style of supply

Alloys Name Type Dimension
Enameled-W Wire D=0.018mm~3mm
Enameled-R Ribbon W=0.4~24 T=0.01~0.2mm

Dimension of insulation

D

mm

 Min thickness of insulation Max OD of Enameled
Ⅰ Ⅱ Ⅰ Ⅱ
0.02 0.005 0.009 0.09 0.036
0.022 0.005 0.019 0.032 0.038
0.025 0.006 0.010 0.036 0.042
0.028 0.006 0.010 0.039 0.045
0.030 0.006 0.011 0.042 0.048
0.032 0.006 0.011 0.044 0.050
0.036 0.007 0.012 0.049 0.055
0.040 0.007 0.012 0.053 0.060
0.045 0.008 0.013 0.059 0.066
0.050 0.008 0.014 0.064 0.072
0.056 0.009 0.015 0.071 0.079
0.060 0.009 0.016 0.076 0.084
0.063 0.009 0.016 0.080 0.088
0.071 0.010 0.017 0.089 0.097
0.080 0.011 0.018 0.099 0.108
0.090 0.012 0.019 0.111 0.120
0.100 0.012 0.021 0.122 0.132
0.112 0.012 0.021 0.135 0.146
0.125 0.014 0.023 0.150 0.161
0.140 0.015 0.024 0.166 0.179
0.150 0.016 0.025 0.177 0.191
0.160 0.017 0.028 0.188 0.202
0.180 0.018 0.028 0.210 0.225
0.200 0.019 0.030 0.231 0.248
0.224 0.021 0.032 0.258 0.275
0.250 0.022 0.034 0.285 0.304
0.280 0.024 0.036 0.318 0.338
0.300 0.025 0.037 0.339 0.360
0.315 0.026 0.038 0.356 0.376
0.355 0.027 0.041 0.398 0.420
0.400 0.028 0.043 0.445 0.468
0.450 0.030 0.048 0.498 0.524
0.500 0.031 0.049 0.551 0.578
0.560 0.034 0.052 0.615 0.643
0.600 0.035 0.054 0.657 0.686
0.630 0.038 0.056 0.689 0.718
0.710 0.038 0.059 0.773 0.805
0.00 0.041 0.062 0.869 0.902
0.900 0.043 0.066 0.973 1.010
1.000 0.048 0.070 1.079 1.117
1.120 0.049 0.074 1.205 1.247
1.250 0.053 0.080 1.343 1.387
1.400 0.058 0.085 1.499 1.548
1.500 0.059 0.090 1.605 1.654

Type of Coating Insulation Reference

Insulation-enamelled Name

Thermal Level℃

(working time 2000h)

 Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

 QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C
