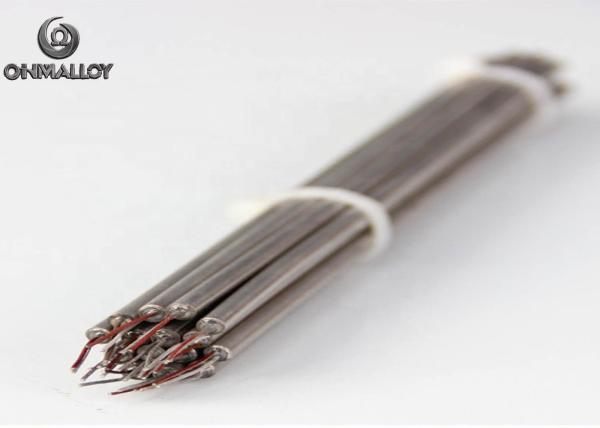

Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance
Specifications
Brand Name :
OHMALLOY/OEM
Model Number :
SP-MI
Certification :
RoHs
Place of Origin :
China
MOQ :
50 Meters
Payment Terms :
L/C, T/T, , MoneyGram,Paypal
Supply Ability :
30000 meters per month
Delivery Time :
5-15 working days
Packaging Details :
Plywood Case
Name :
Mineral Insulated Thermocouple Cable Type K J RTD N S Stainless Steel Sheath
Inner Sheath :
MgO/Al2O3
MI Type :
Heating Cable/Thermocouple
Sheath Material :
Stainless Steel/High temperature alloy/Inconel
Package :
Plywood case
Shipment Way :
Air/Sea/Express Shipment
Customized Service :
Logo/Package
Description

Mineral Insulated Thermocouple Cable Type K J RTD N S Stainless Steel Sheath

It is known as inorganic substance insulation thermocouple cable internationally. It is the mould-pressed solid integrity of combined stainless steel protective pile

(1) magnesium oxide insulation powder.

(2) and thermocouple thread materials .

(3) Its merits include press endurance, vibration resistance, bending capability, mini size, quick respond, etc. It acts as the key material of sheath

Electric property:

Resistance value allowance:±10%

Dielectric property:heating cable pressure resist:1200V AC/1min

Insulation resistance:end product test:100MΩ/500VDC

Sheath continuity:all the heating cable submerged in the water 12 hours then test the insulation resistance,

the value should be 50M/500VDC at least.


To produce assemblies, the cable is cut to the desired length, pigtails brazed on and terminated with union type glands with male NPT threads.

Mineral Insulated Thermocouple Cable Type K J RTD N S Vibration Resistance

OHMALLOY can provide the following type and size of mineral insulated cable.

Thermocouple grade K, E, J, T, N, R,S,B, Cu, Pt100
OD of cable 0.3mm to 12.0mm
Sheath material SS304, SS321, SS316, SS310, Inconel 600, GH3039, copper
Core type 1-core, 2-core, 3-core, 4-core....
EMF tolerance Class First(I) or Special
