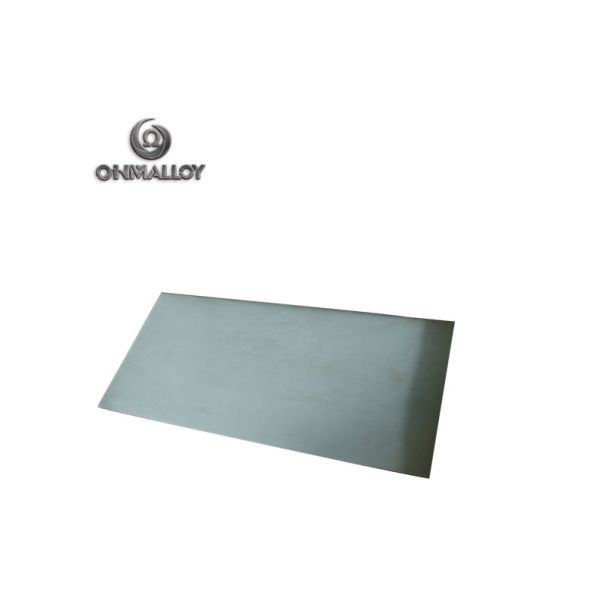

High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm
Specifications
Brand Name :
OHMALLOY
Model Number :
NICKEL 200
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai）
MOQ :
10KG
Price :
negotiable
Payment Terms :
L/C, T/T, , MoneyGram
Supply Ability :
5 Tons per month
Delivery Time :
7-10 days
Packaging Details :
in carton packed
Material :
pure nickel
Grade :
nickel 200
Density (g/cm3) :
8.89
Volume resistivity (μΩ.cm) :
8.5
Description

OHMALLOY

OHMALLOY 200
Common Name: N6, N4, Pure Nickel, Nickel 200

OHMALLOY200 are made by advanced vacuum melting process.and by forging,rolling,annealing and drawing. It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp

1). Chemical composition(%)

Grade C Si Mn P S Ni+Co Cu Fe
Nickel 200 <0.15 <0.35 <0.35 <0.01 >99.0 <0.25 <0.40

2. Physical properties

Grade

 Density (g/cm3)

Melting Range

(℃)

Curie point

(℃)

 Volume resistivity (μΩ.cm) Thermal conductivity (W/m. ℃)
Nickel 200 8.89 1435-1446 360 8.5(20℃) 79.3(20℃)

3). Mechnical properties

FORM

Yield Strength (Mpa)

Tensile Strength (Mpa)

Elongation (%)

Hardness (RB)

Bar

 Hot-finished 105-310 60-85 55-35 45-80
Cold-drawn,annealed 105-210 55-75 55-40 75-98

Strip

 Hard 480-795 620-895 15-2 >90
Annealed 105-210 380-580 55-40 <70

Wire

 Annealed 105-345 380-580 50-30
No.1 Temper 275-520 485-655 40-20
Spring Temper 725-930 860-1000 15-2

2.Specification

Strip:Thickness: 0.02mm to 3.0mm ,Width: 1.0mm to 250mm

Wire:Diameter: 0.025mm to 3.0mm

Sheet/Coil:Thickness:0.002-0.125mm

Width in coil:6.00mm max

In plate and straight lengths:12.00mm max

3.Usage

It is used in electric apparatus,lead for lamp and chemical machinery. Pure Nickel strip and foil, mainly used in batteries, electronic parts, some special lamp.

4.Features

Stable performance;Anti-oxidation;Corrosion resistance;High temperature stability;Excellent coil-forming ability;Uniform and beautiful surface condition without spots.

High Temperature Pure Nickel Plate / Nickel 200 Plate Thickness 1mm-10mm

5.Packing detail

1) Coil (plastic spool) + compressed ply-wooden case + pallet

2) Coil (plastic spool) + carton + pallet

6.Products and services

1). Pass: ISO9001 certification, and SO14001cetification;

2). Fine after-sale services;

3). Small order accepted;

4). Stable properties in high temperature;

5). Fast delivery;
