PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor
Specifications
Brand Name :
OHMALLOY
Model Number :
RTD cable
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai）
MOQ :
500M
Price :
negotiable
Payment Terms :
L/C, T/T,
Supply Ability :
500000kg per month
Delivery Time :
7-20 DAYS
Packaging Details :
500M/ROLL
Conductor Material :
Copper wire, Tinned copper wire, Nickel plated copper wire
Insulation :
PTFE ( FEP, PTFE, PFA)
Cores :
Single Core Or Multi Core
Resistance :
0.5Ω-1000 Ω
Thickness :
0.15mm-0.4mm
Diameter :
0.2mm to 3.0mm
Working temp :
<250 ℃
Color :
Black, White, Blue, Yellow, Red
Description

Resistance thermometers, also called resistance temperature detectors (RTDs), are sensors used to measure temperature by correlating the resistance of the RTD element with temperature. Most RTD elements consist of a length of fine coiled wire wrapped around a ceramic or glass core. The element is usually quite fragile, so it is often placed inside a sheathed probe to protect it. The RTD element is made from a pure material, typically platinum, nickel or copper. The material has a predictable change in resistance as the temperature changes and it is this predictable change that is used to determine temperature.

They are slowly replacing the use of thermocouples in many industrial applications below 600 °C, due to higher accuracy and repeatability.

PTFE PVC PFA Insulated Thermocouple Cable For Temperature Sensor

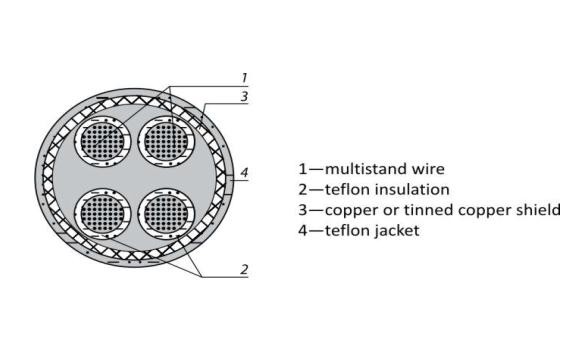

Conductor material: Copper wire, Tinned copper wire, Nickel plated copper wire

Insulation: PTFE ( FEP, PTFE, PFA)

Braiding material: Copper wire or tinned copper wire

Jacket material: Telfon ( FEP, PTFE, PFA) or silicone or PVC

Technical parameter

Voltage >220V
Working temp <250 ℃
Resistance 0.5Ω-1000 Ω
Thickness 0.15mm-0.4mm
Diameter 0.2mm to 3.0mm

Ohmalloy provide RTD cable in all types.

Core dia Core type Conductor material Insulation material Shielding material Jacket material
0.2mm2 2-core Copper wire FEP Copper wire FEP
0.3mm2 3-core Silver plated copper wire PTFE Silver plated copper wire PTFE
0.4mm2 4-core Nickel plated copper wire PFA Nickel plated copper wire PFA
0.5mm2 5-core Tinned copper wire Silicone rubber Tinned copper wire Silicone rubber

Remarks: The size can be changed if special requirement.

The thickness of insulation also can be adjusted by special requirement. We can do insulation thickness 0.2mm to 2.5mm
