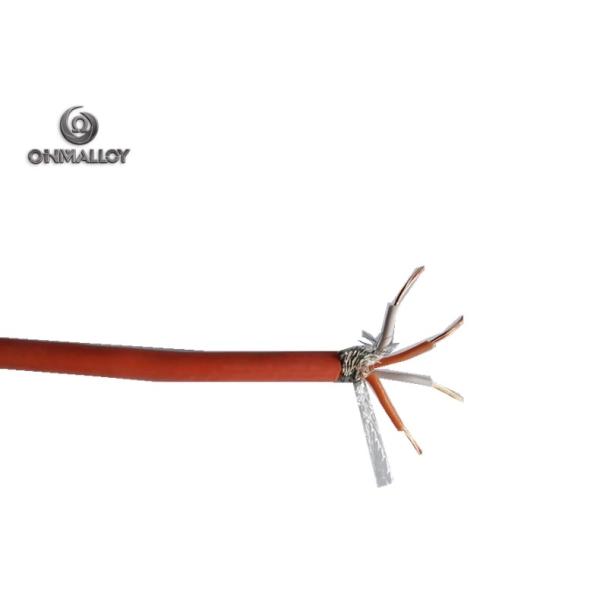

Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter
Specifications
Brand Name :
OHMALLOY
Model Number :
T-SR-SR-7/0.3mm
Certification :
ISO9001-2008
Place of Origin :
China(Shanghai）
MOQ :
10KG
Price :
negotiable
Payment Terms :
L/C, T/T, ,
Supply Ability :
50 Tons per month
Delivery Time :
7-10 days
Packaging Details :
Roll/Spool
Material: :
Cu/CuNi
Insulation: :
Silicone Rubber
Jacket: :
Silicone Rubber
Diameter: :
0.12-1.5mm
Conductor diameter :
Conductor diameter
Measuring temperature tolerance: :
+ / - 1.1 ℃ to + / - 0.4%
Color: :
Positive yellow, negative white, sheath yellow (other colors of insulating layer are acceptable)
Description

Conductor material:

material Chemical composition (%)
Ni Al Cu Si Mn
TP: pure copper 100
TN: CuNi 0.6 Bal

Silicon Rubber Insulated NiCr-NiSi Type K Compensating Wire 0.12-1.5mm Diameter

Conductor structure

Conductor diameter 0.3mm*7
Insulation silicone rubber200℃
Insulation thickness 0.35mm
Inner shield PTFE film +SS304 woven wire
Sheath material silicone rubber200℃
Sheath thickness 0.5mm
Section size: 4.5mm
Each meter weighs: 10kg/100meter

Thermocouple variety and index

Long-term max standing temperature 260℃
Short-term max standing temperature 300℃

Available conductor alloy grade as follows:

NiCr60/15 CuNi44 CuNi23 OCr25Al5 OCr21Al6
Nickel 200 Nickel 201 Nickel 212 Tinned copper wire CuNi6
CuNi10 NiCr35/20 NiCr AA Inconel 600 Inconel 625

Available color: White, black, yellow, red, brown, green, blue, purple

Applications:Widely used in internal or external wiring requiring high heat-resistance or high speed transfer circuit.

Conductors can also be provided with stranded wire, dimensions such as 0.2mm*7, 0.3mm*7, 0.2mm*19.Ohmalloy aslo can make all kinds of insulation resistance wire on customer’s special requirement.

Thermocouple variety and index


Thermocouple Variety and Index

Variety
Type
Measurement Range(°C)

NiCr-NiSi
K
-200-1300

NiCr-CuNi
E
-200-900

Fe-CuNi
J
-40-750

Cu-CuNi
T
-200-350

NiCrSi-NiSi
N
-200-1300

NiCr-AuFe0.07
NiCr-AuFe0.07
-270-0
