Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor
Specifications
Brand Name :
OHMALLOY
Model Number :
Enamelled wire
Certification :
ISO,Rohs
Place of Origin :
China(Shanghai）
MOQ :
5kg
Price :
20-50USD/KG
Payment Terms :
L/C, T/T, , MoneyGram
Supply Ability :
5 Tons per month
Delivery Time :
7-10 days

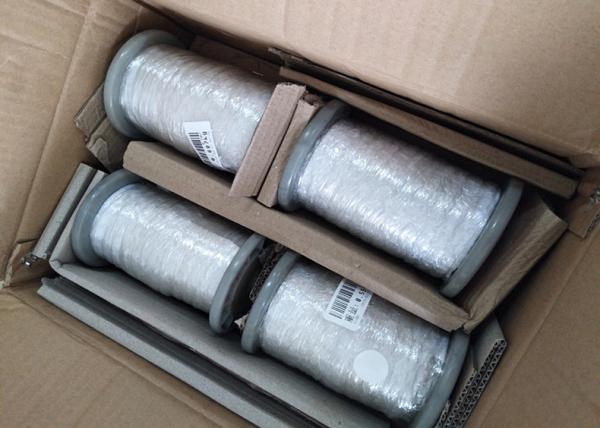

Packaging Details :
in Spool.carton packed
conductor material： :
constantan
Coating Temperature: :
130,155,180,200,220
Color: :
Black,Red,Blue,Yellow,Nature Etc.
Application: :
Heating, Coils, Windings
Description

Character:

Strong heat resistance, refrigerant resistance, chemical resistance,resistance to high mechanical strength,steady electrical performance under high voltage,no pinhole for salt-water test and excellent overload capacity.

Application:

Enameled wire is suitable for induction cooker coils ,Seat heaters,transformers,refrigerator , air conditioner , compressor , automobile motor ,high temperature resistant motors , electrical appliances , etc.

Conductor Material:

The alloy we can do enamelled are Copper-nickel alloy wire,Constantan wire,Manganin wire. Kama Wire,NiCr Alloy wire,FeCrAl Alloy wire etc alloy wire.

Color of enameled insulation:

Red,Blue,Black,Yellow,Nature etc.

Constantan Conductor Enameled Insulated Resistance Wire For Wire Wound Resistor

Type of insulation

Insulation-enamelled Name

Thermal Level℃

(working time 2000h)

 Code Name GB Code ANSI. TYPE
Polyurethane enamelled wire 130 UEW QA MW75C
Polyester enamelled wire 155 PEW QZ MW5C
Polyester-imide enamelled wire 180 EIW QZY MW30C
Polyester-imide and polyamide-imide double coated enameled wire 200

EIWH

(DFWF)

 QZY/XY MW35C
Polyamide-imide enamelled wire 220 AIW QXY MW81C
