Specifications
Brand Name :
Ohmalloy
Model Number :
Manganin/Constantan
Certification :
ISO/CE
Place of Origin :
China
MOQ :
50kgs
Price :
USD 22.00/KG
Payment Terms :
L/C, T/T,
Supply Ability :
20000KG/week
Delivery Time :
10days
Packaging Details :
coil
Application :
Industry
Material :
Copper Nickel Alloy
Shape :
strip
Chemical composition :
Cu,Ni
Description

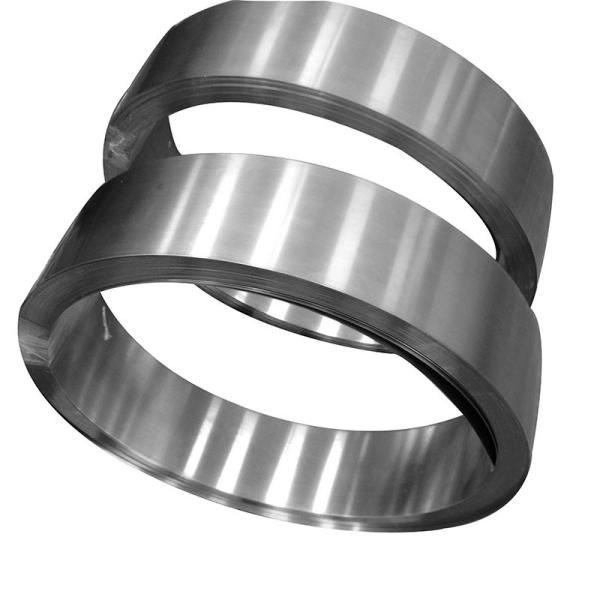

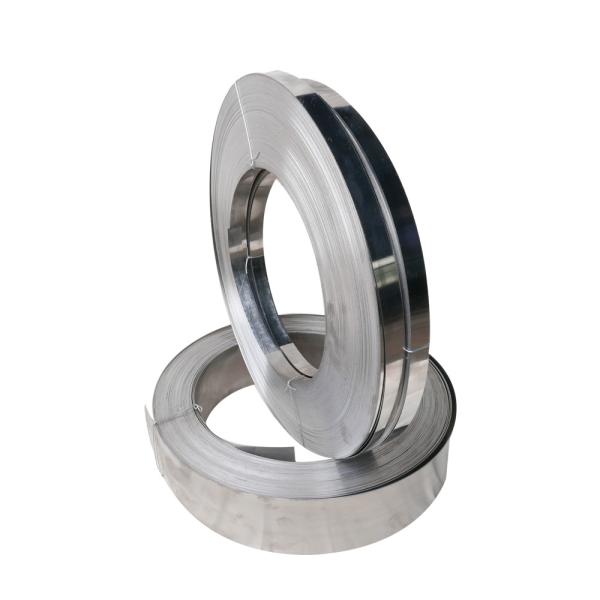

Narrow-Strip of Manganin/Constantan 6j12, 6j13, 6j40 for Electrical Purposes

Product introduction: Narrow-strip of manganin/constantan in our company belongs to copper-manganese alloy. Compared with traditional manganin/constantan, it haswhigh dimensional accuracy, excellent processability, stable resistivity, and its material utilization could increase by more than 50% in the manufacturing process.

Product Feature:
1.Low temperature coefficient of resistance
2.Stable resistivity
3.High dimensional accuracy
4.Excellent cold and hot processability
5.Well weldability
6.High material utilization

Product Designations: 6J12, 6J13, 6J40 etc.

Application Area: It is widely used in the industry of instruments and apparatus, automobile, electric machine, electrical machinery and so on.

Product Parameter:

ITEM DESIGNSTIONS COMPOSITION (wt%,no more than,Except ones indicating range or remain) ELECTRICAL PROPERTIES
Cu Ni Mn resistivity(20ºC)
/μΩ·m		 temperature coefficient of resistance(α)/ºC-1 AVG of temperature coefficient of resistance
(α)/ºC-1
manganin 6J13 bal. 2~5 11~13 0.44±0.04 0~40×10-6 -
constantan 6J40 bal. 39~41 1~2 0.48±0.03 - ±40×10-6
